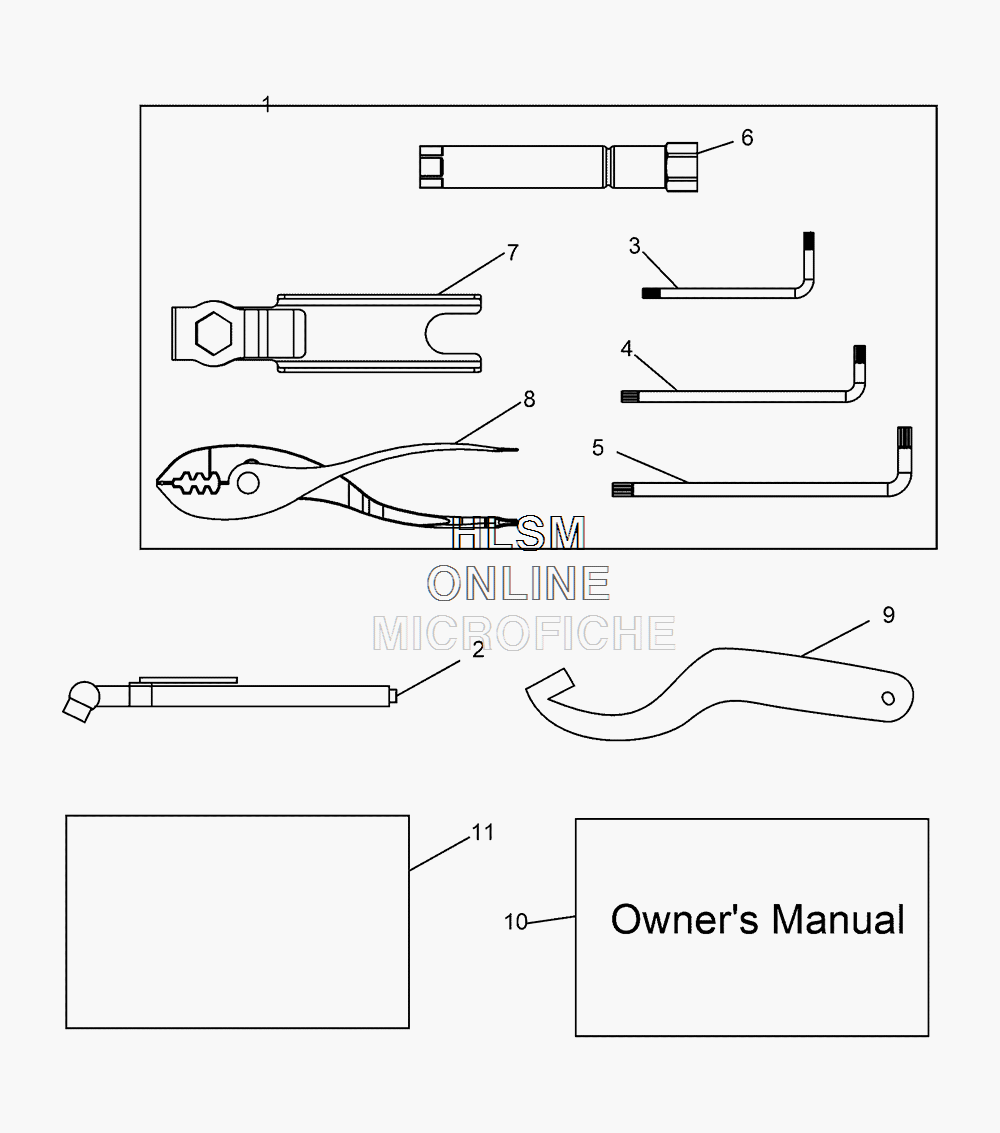

TOOL KIT AND OWNERS MANUALS для Polaris RANGER ETX (WHITE LIGHTNING) [RMA32A2] - 2016 года выпуска
-
№АртикулНазвание
-
12880974 KIT, TOOL ((INCL. 3-8))KIT, TOOL ((INCL. 3-8))
-
22870725 GAUGE, TIRE PRESSUREGAUGE, TIRE PRESSURE
-
32875341 WRENCH, TORX, T-25WRENCH, TORX, T-25
-
42874858 WRENCH, TORX, T-27WRENCH, TORX, T-27
-
52879339 WRENCH-TORX,T-40WRENCH-TORX,T-40
-
82876389 PLIERS, COMBOPLIERS, COMBO
-
92871095-329 WRENCH, SPANNER, CAM, BLACKWRENCH, SPANNER, CAM, BLACK
-
109926455 MAN-OWN,16ETX/570,570/EPS/CREWMAN-OWN,16ETX/570,570/EPS/CREW
-
112682572 POUCH, TOOL KITPOUCH, TOOL KIT
Все узлы модели:
- A-ARM AND STRUT MOUNTING
- AIR INTAKE SYSTEM W/CLUTCH
- BATTERY W/BRACKET
- BOX ASM.
- BOX SUPPORT W/SHOCK
- BRAKE LINES AND MASTER CYLINDER
- BREATHER
- CAB FRAME
- CAM CHAIN W/ SPROCKET
- CAMS W/BEARING HOUSING
- CLUTCH COVER AND DUCTING
- CLUTCH- PRIMARY
- CLUTCH- SECONDARY
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON AND BALANCE SHAFT
- CYLINDER
- CYLINDER W/ HEAD
- DASH AND GLOVEBOX
- DASH INSTRUMENTS AND CONTROLS
- DECALS
- ENGINE AND TRANSMISSION MOUNTING
- EXHAUST MANIFOLD
- FLOOR AND FENDERS
- FRAME AND FRONT BUMPER
- FRONT CALIPER
- FRONT DRIVE SHAFT
- FRONT GEARCASE INTERNALS
- FRONT GEARCASE MOUNTING
- FRONT PROP SHAFT
- FRONT STRUT
- FUEL TANK ASM.
- GEAR SELECTOR W/DIFFERENTIAL LOCK
- HEADLIGHTS- TAILLIGHTS AND BULBS
- IGNITION
- LONG BLOCK ASSY.
- MAIN GEARCASE
- MASTER CYLINDER AND PEDAL
- OIL FILTER W/ DIPSTICK
- OIL PUMP
- REAR CALIPER
- REAR DRIVE SHAFT
- REAR SHOCK
- REAR WHEEL
- REGULATOR
- SEAT BELTS
- SENSORS
- SIDE NETS
- STABILIZER BAR
- STARTER DRIVE
- STATOR COVER W/ FLYWHEEL
- STEERING ASM.
- TAILGATE ASM.
- THERMOSTAT W/ COVER
- THROTTLE BODY W/ FUEL RAIL
- THROTTLE PEDAL
- • TOOL KIT AND OWNERS MANUALS
- VALVE COVER
- WATERPUMP W/ IMPELLER AND COVER
- WHEELS - FRONT
- WIRE HARNESSES
