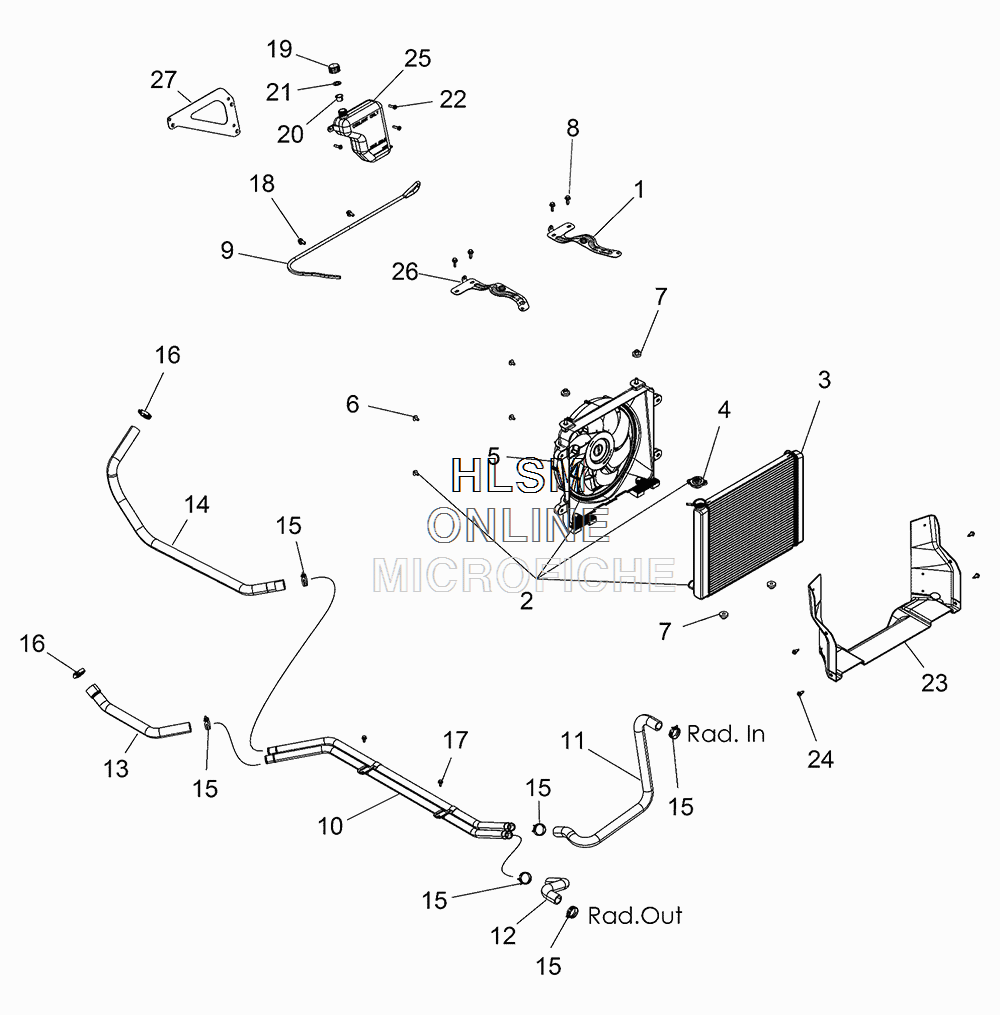

COOLING SYSTEM для Polaris RANGER XP 900 (POLAARIS PURSUIT CAMO) [R16RTA87A9] - 2016 года выпуска
-
№АртикулНазвание
-
15256596-329 MOUNT, RADIATOR, LH, BLACKMOUNT, RADIATOR, LH, BLACK
-
21240663 ASM., RADIATOR (INCL. 2-6)ASM., RADIATOR (INCL. 2-6)
-
31240664 ASM., RADIATOR, COREASM., RADIATOR, CORE
-
41240694 CAPCAP
-
52411816 FAN ASSEMBLYFAN ASSEMBLY
-
67519585 BOLTBOLT
-
77052028 GROMMET, FLANGEDGROMMET, FLANGED
-
87518529 SCREWSCREW
-
98450003-1525 LINE, FUELLINE, FUEL
-
105137818 TUBE, COOLANTTUBE, COOLANT
-
115414289 HOSE, UPPER, RADIATORHOSE, UPPER, RADIATOR
-
125414290 HOSE, LOWER, RADIATORHOSE, LOWER, RADIATOR
-
135414291 HOSE, ENGINE, INHOSE, ENGINE, IN
-
145414292 HOSE, ENGINE, OUTHOSE, ENGINE, OUT
-
157080844 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
167081192 CLAMP, HOSECLAMP, HOSE
-
177518529 SCREWSCREW
-
187670102 CLIP, SILENCER BOXCLIP, SILENCER BOX
-
195430743 CAP, OVER FLOW BOTTLE, DRILLEDCAP, OVER FLOW BOTTLE, DRILLED
-
205433774 PLUG, CAPPLUG, CAP
-
215810279 GASKET, OVERFLOW CAPGASKET, OVERFLOW CAP
-
227518158 SCREWSCREW
-
235439293-070 SHROUD, RADIATOR, FRONT, BLACKSHROUD, RADIATOR, FRONT, BLACK
-
247661855 RIVETRIVET
-
255439202 TANK, SURGETANK, SURGE
-
265256597-329 MOUNT, RADIATOR, RH, BLACKMOUNT, RADIATOR, RH, BLACK
-
275261799 BRKT-SURGE TANK MNTBRKT-SURGE TANK MNT
