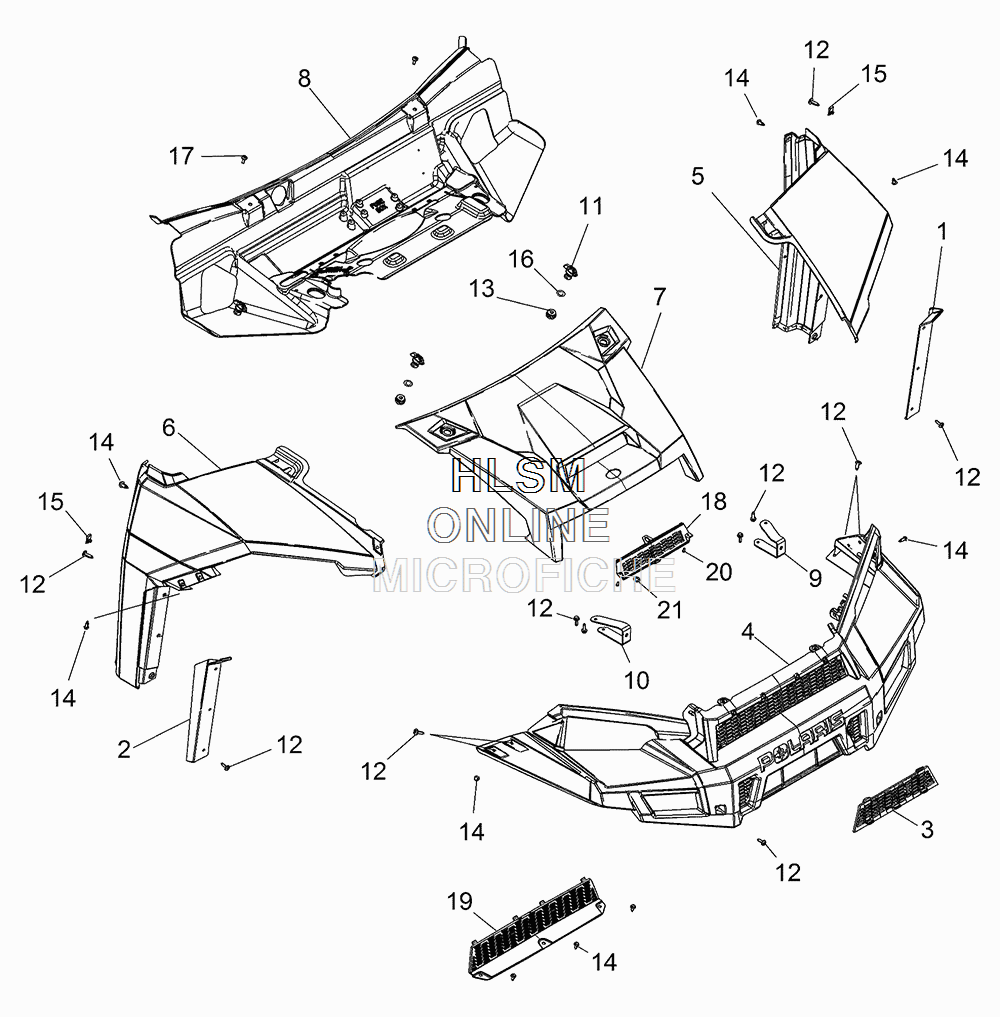

HOOD- BUMPER- FENDER- WINCH COVER для Polaris RANGER XP 900 (POLAARIS PURSUIT CAMO) [R16RTA87A9] - 2016 года выпуска
-
№АртикулНазвание
-
15439011-070 FENDER, FLARE, FRONT, LH, BLACKFENDER, FLARE, FRONT, LH, BLACK
-
25439012-070 FENDER, FLARE, FRONT, RH, BLACKFENDER, FLARE, FRONT, RH, BLACK
-
35439016-070 SCREEN BUMPER, UPPER, BLACKSCREEN BUMPER, UPPER, BLACK
-
45439018-070 FASCIA, FRONT, BLACKFASCIA, FRONT, BLACK
-
65450084-587 FENDER, FRONT, RH, POLARIS PURSUIT CAMO ((A87A9) (E87A9) (U87A9))FENDER, FRONT, RH, POLARIS PURSUIT CAMO ((A87A9) (E87A9) (U87A9))
-
75452382-587 HOOD, CENTER ACCESS, POLARIS PURSUIT CAMO ((A87A9) (E87A9) (U87A9))HOOD, CENTER ACCESS, POLARIS PURSUIT CAMO ((A87A9) (E87A9) (U87A9))
-
85439025-070 LINER, HOOD, BLACKLINER, HOOD, BLACK
-
95258206 BRACKET, BUMPER, FRONT, UPPER, LHBRACKET, BUMPER, FRONT, UPPER, LH
-
105258207 BRACKET, BUMPER, FRONT, UPPER, RHBRACKET, BUMPER, FRONT, UPPER, RH
-
117081730 LATCH, 1/4 TURNLATCH, 1/4 TURN
-
127519650 SCREWSCREW
-
135413428 GROMMET, LATCHGROMMET, LATCH
-
147661855 RIVETRIVET
-
157081305 CLIP, U SPEED NUTCLIP, U SPEED NUT
-
167555919 WASHERWASHER
-
177518529 SCREWSCREW
-
185452380 COVER-HOOD GRILLECOVER-HOOD GRILLE
-
207519091 SCREWSCREW
-
217710702 RETAINER-BOLT,PUSHNUT,M10RETAINER-BOLT,PUSHNUT,M10
