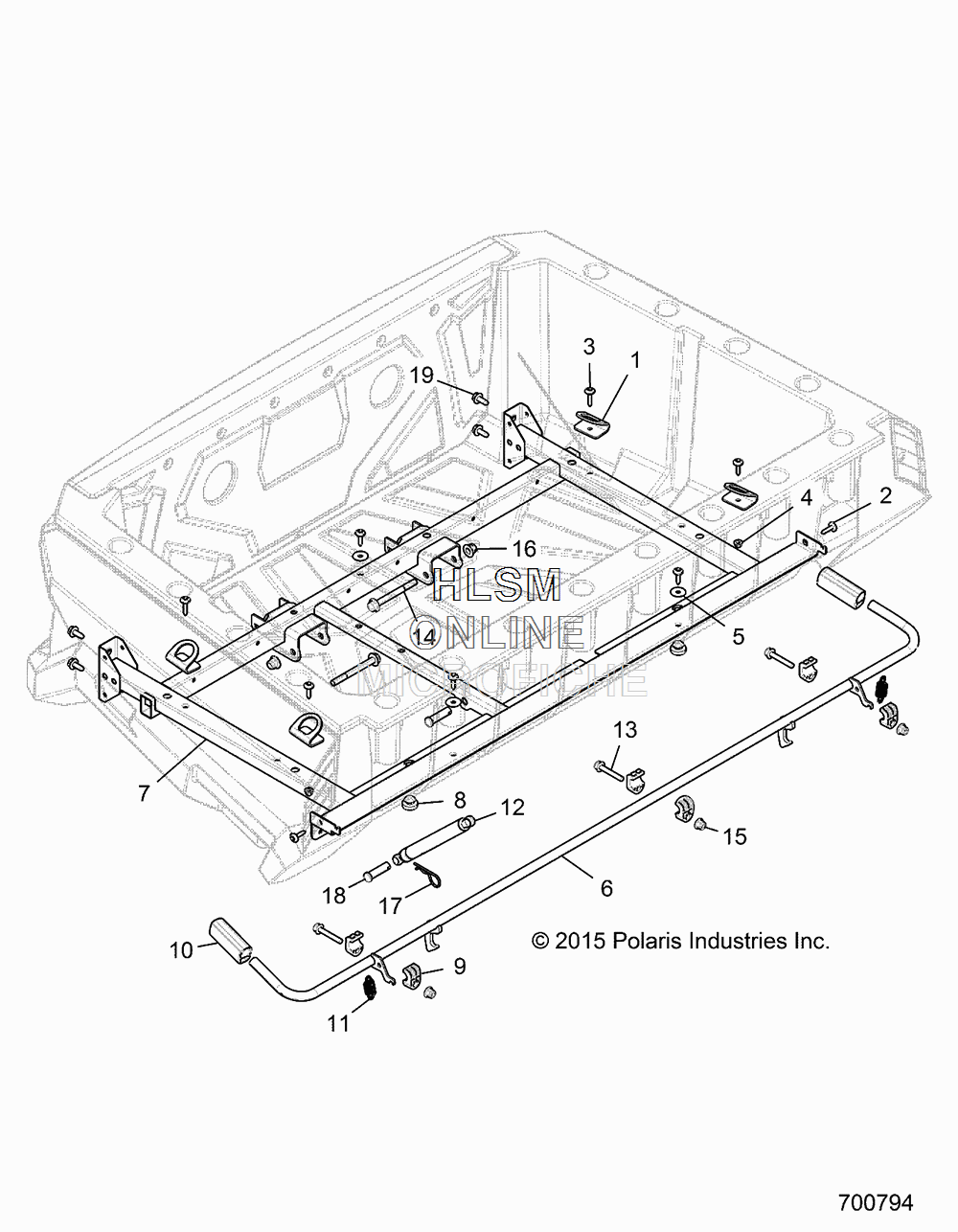

BOX MOUNTING AND LATCH для Polaris POLARIS GENERAL 1000 4P MD [R17RHE99NU] - 2017 года выпуска
-
№АртикулНазвание
-
15260882 BRKT-TIEDOWN, BOXBRKT-TIEDOWN, BOX
-
27519650 SCR-TXTH-M6X1.0X25 RIESCR-TXTH-M6X1.0X25 RIE
-
37520411 SCR-TXTH-M6X1.0X30 RIESCR-TXTH-M6X1.0X30 RIE
-
47547339 NUT-M6X1.0, FLG-NYLOC-OLIVE DNUT-M6X1.0, FLG-NYLOC-OLIVE D
-
57556329 WASHER-.281X1.00X.051WASHER-.281X1.00X.051
-
61022532-458 WELD-BOX LATCH, (M. BLACK)WELD-BOX LATCH, (M. BLACK)
-
71021375-329 WELD-BOX SUPPORT, (BLACK)WELD-BOX SUPPORT, (BLACK)
-
85412067 BUMPER-RUBBERBUMPER-RUBBER
-
95434226 BUSHING-BOX, LATCHBUSHING-BOX, LATCH
-
105450278 HANDLE-BOX, LATCHHANDLE-BOX, LATCH
-
117041687 SPRING-EXHAUSTSPRING-EXHAUST
-
127044456 SHOCK-BOX, DUMPSHOCK-BOX, DUMP
-
137517793 SCR-M8X1.25X50 HX/FL-YSCR-M8X1.25X50 HX/FL-Y
-
147519043 SCR-HXFL-M10X1.25X95 10.9 ZODSCR-HXFL-M10X1.25X95 10.9 ZOD
-
157547317 NUT-M8X1.25, HXFLG, NYLON INSNUT-M8X1.25, HXFLG, NYLON INS
-
167547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
177661067 CLIP-HITCHPIN .148X3 1/16CLIP-HITCHPIN .148X3 1/16
-
187661878 PIN-CLEVIS, 1/2 X 1 3/4PIN-CLEVIS, 1/2 X 1 3/4
-
197519780 SCR-HWH-M8X1.25X20 TAP/R ZPBSCR-HWH-M8X1.25X20 TAP/R ZPB
