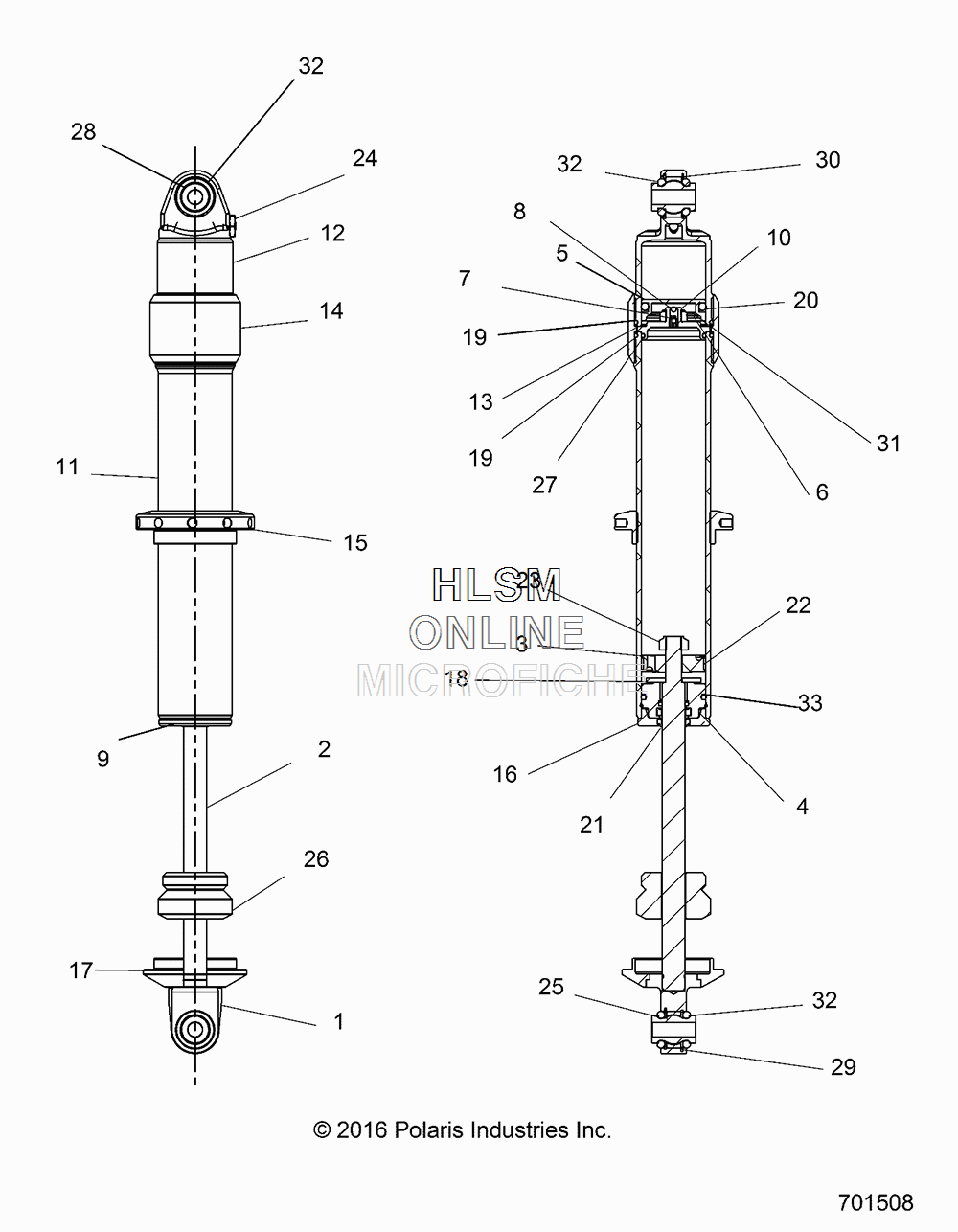

REAR SHOCK INTERNALS для Polaris POLARIS GENERAL 1000 4P MD [R17RHE99NU] - 2017 года выпуска
-
№АртикулНазвание
-
-7044711 SHOCK-REAR, BULBSHOCK-REAR, BULB
-
11800792 SHAFT LOOPSHAFT LOOP
-
21800813 SHAFTSHAFT
-
31800164 NUT, CRIMPNUT, CRIMP
-
41800795 RING, RETAINING WIRERING, RETAINING WIRE
-
51800798 PISTON, RESERVOIR, BASE VALVEPISTON, RESERVOIR, BASE VALVE
-
61800631 SHIMSHIM
-
71800804 SCREW, CHECK BALLSCREW, CHECK BALL
-
81800531 CHECK BALLCHECK BALL
-
91800794 CAP, WIPERCAP, WIPER
-
101800807 NUT, NYLOCKNUT, NYLOCK
-
111800814 BODY, MONOTUBE BASE VALVE LOWERBODY, MONOTUBE BASE VALVE LOWER
-
121800797 BODY, LOOP-RESERVOIR BASSE VALVEBODY, LOOP-RESERVOIR BASSE VALVE
-
131800799 BASE VALVEBASE VALVE
-
141800796 UNION MONOTUBE BASE VALVEUNION MONOTUBE BASE VALVE
-
151800802 SPRING ADJUSTERSPRING ADJUSTER
-
161800801 ASM, SEAL HEADASM, SEAL HEAD
-
171501194 SPRING, RETAINERSPRING, RETAINER
-
181800393 WASHERWASHER
-
191800803 ORINGORING
-
201800184 ORINGORING
-
211800034 WIPERWIPER
-
221800185 BAND, PISTON WEARBAND, PISTON WEAR
-
231800164 NUT, CRIMPNUT, CRIMP
-
241800805 ASM-CHARGE PORTASM-CHARGE PORT
-
251800041 RING, SNAPRING, SNAP
-
261800593 BUMP STOPBUMP STOP
-
271800806 ORINGORING
-
281800808 BEARINGBEARING
-
291800809 BEARINGBEARING
-
301800482 RING, RETAINERRING, RETAINER
-
311800187 WASHERWASHER
-
321800810 O-RINGO-RING
-
331800030 O-RINGO-RING
