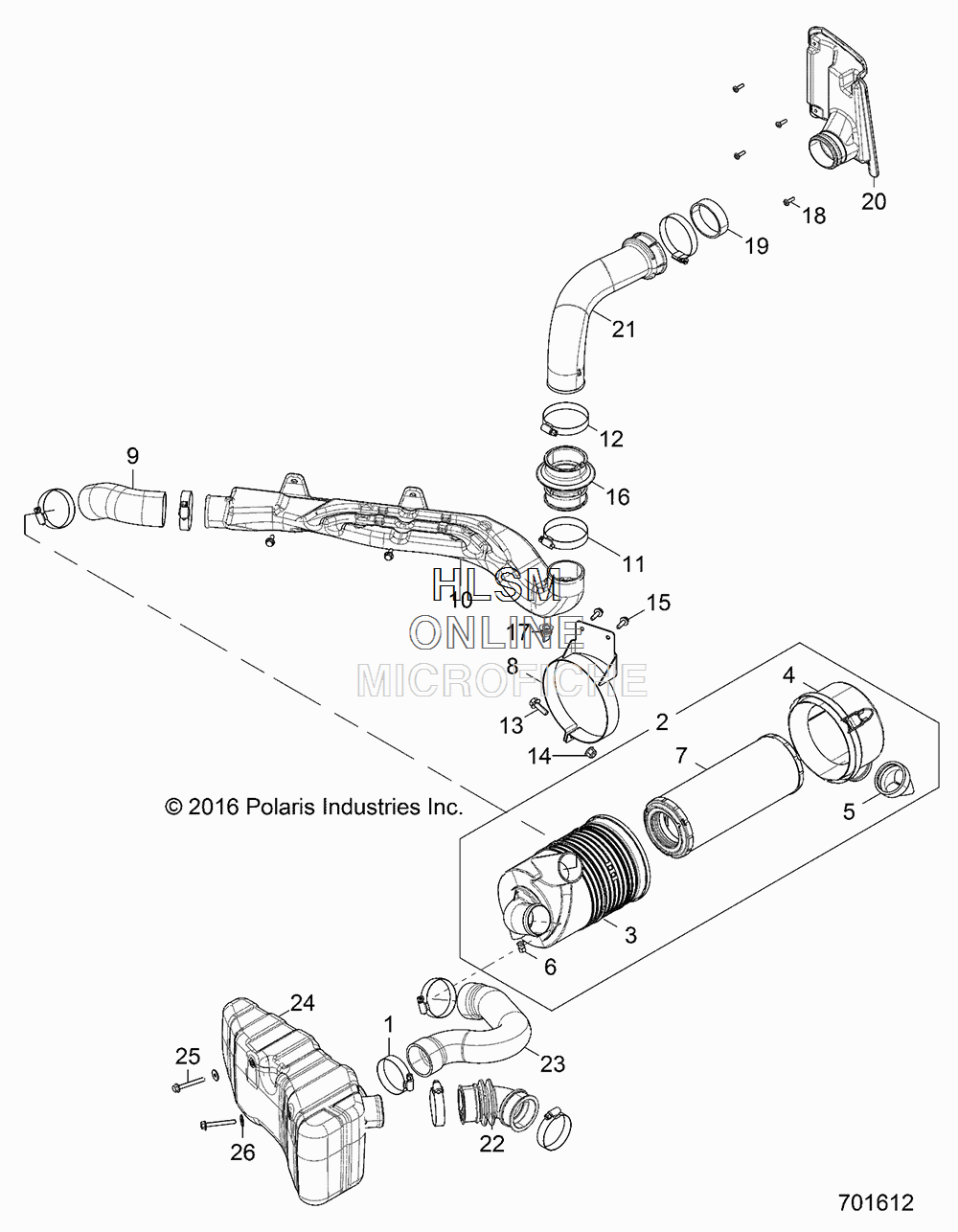

AIR INTAKE SYSTEM для Polaris RANGER HST (R02) - [R17B2PD1AA] - 2017 года выпуска
-
№АртикулНазвание
-
17080451 CLAMP, HOSECLAMP, HOSE
-
21240945 ASM., AIR INTAKE, ULTRAWEB [INCL. 3-7]ASM., AIR INTAKE, ULTRAWEB [INCL. 3-7]
-
31240700 ASM., AIRBOX, MAINASM., AIRBOX, MAIN
-
41240701 ASM., LIDASM., LID
-
55414468 VALVE, AIRBOXVALVE, AIRBOX
-
65439688 PLUG, AIRBOXPLUG, AIRBOX
-
77082087 FILTER, AIRFILTER, AIR
-
81018472 AIRBOX, MOUNTAIRBOX, MOUNT
-
95414304 HOSE, INTAKEHOSE, INTAKE
-
105439232 DUCT, INTAKE, AIRDUCT, INTAKE, AIR
-
117080446 CLAMP, HOSECLAMP, HOSE
-
127080439 CLAMP, HOSECLAMP, HOSE
-
137518514 BOLTBOLT
-
147547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
157518529 SCREWSCREW
-
165414571 HOSE, INTAKE, CLOSE OFFHOSE, INTAKE, CLOSE OFF
-
175414472 PLUG, DRAINPLUG, DRAIN
-
187518238 SCREWSCREW
-
195414542 HOSE, INTAKE, BOOTHOSE, INTAKE, BOOT
-
205439201-070 FENDER, INTAKE, REAR, (BLACK)FENDER, INTAKE, REAR, (BLACK)
-
215439947 DUCT, INTAKE, AIRDUCT, INTAKE, AIR
-
225415431 HOSE-INTAKE,ENGINEHOSE-INTAKE,ENGINE
-
235415448 HOSE-INTAKE,RESONATORHOSE-INTAKE,RESONATOR
-
245452009 BOX-INTAKE,RESONATORBOX-INTAKE,RESONATOR
-
257520078 SCR-M6X1.0X50.0 HX/FL-Y/DSCR-M6X1.0X50.0 HX/FL-Y/D
-
267556064 WSHR-6.4X18.0X1.6 ZPBWSHR-6.4X18.0X1.6 ZPB
