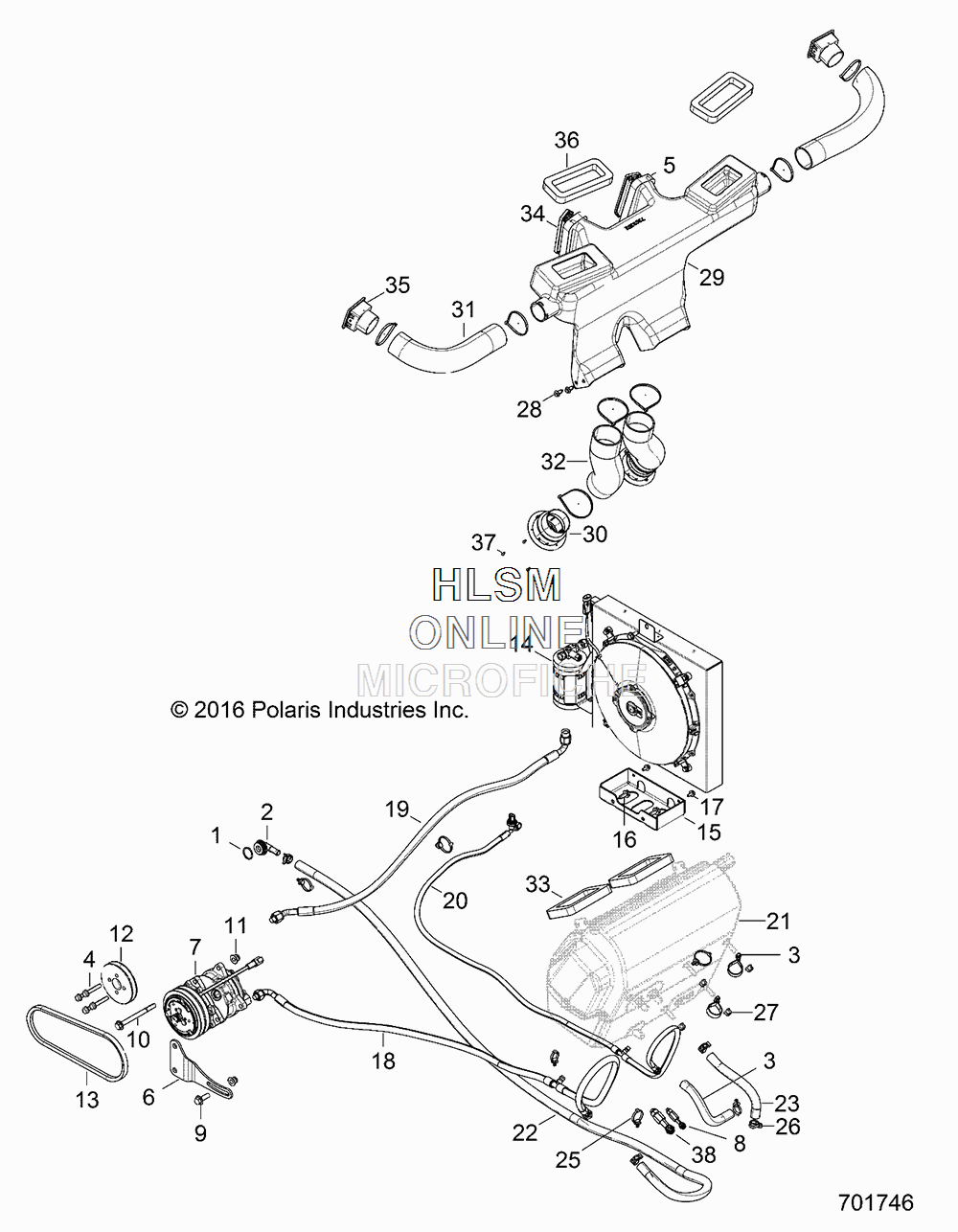

HVAC для Polaris RANGER HST (R02) - [R17B2PD1AA] - 2017 года выпуска
-
№АртикулНазвание
-
15415204 O-RING, FITTING KOHLERO-RING, FITTING KOHLER
-
27052613 FITTING, HEATER HOSE KOHLERFITTING, HEATER HOSE KOHLER
-
37082280 STRAP-WIDE,(M8X1.25) STUD MNTSTRAP-WIDE,(M8X1.25) STUD MNT
-
47516732 SCREWSCREW
-
53120159 SEAL, DASH CENTERSEAL, DASH CENTER
-
65259077-329 BRACKET, A/C LOWER MOUNT, (BLACK)BRACKET, A/C LOWER MOUNT, (BLACK)
-
73120205 COMPRESSOR, AIRCOMPRESSOR, AIR
-
83121058 ASM-TUBELINE,ACASM-TUBELINE,AC
-
97519059 SCREWSCREW
-
107519365 SCREWSCREW
-
117547333 NUT, FLANGE NYLOKNUT, FLANGE NYLOK
-
125139291 PULLEY, ACPULLEY, AC
-
133120165 BELT, ACBELT, AC
-
142413722 CONDENSOR-A/C,RGRCONDENSOR-A/C,RGR
-
153120179 MNT, CONDENSERMNT, CONDENSER
-
167518555 BOLTBOLT
-
177519145 SCREWSCREW
-
183121055 HOSE-ACHOSE-AC
-
193120167 HOSE, ACHOSE, AC
-
203121054 HOSE-ACHOSE-AC
-
213121051 BOX-HVACBOX-HVAC
-
223121052 HOSE-HEATERHOSE-HEATER
-
233121053 HOSE-HEATERHOSE-HEATER
-
257081496 CLIP, ROUTINGCLIP, ROUTING
-
267081719 CLAMP, HOSE SPRING (20MM)CLAMP, HOSE SPRING (20MM)
-
277547332 NUT, FLANGE NYLOKNUT, FLANGE NYLOK
-
287661855 RIVET, TUFLOKRIVET, TUFLOK
-
293121059 DISTRIBUTOR-HVACDISTRIBUTOR-HVAC
-
303120150 VENT, ROUNDVENT, ROUND
-
313120151 DUCT, UPPER, LEFTDUCT, UPPER, LEFT
-
323120154 DUCT, FOOT, RIGHTDUCT, FOOT, RIGHT
-
333120155 SEAL, HVACSEAL, HVAC
-
343120156 VENT, RECTVENT, RECT
-
353120157 VENT, SQVENT, SQ
-
363120158 SEAL, DEFROSTSEAL, DEFROST
-
377519766 SCREWSCREW
-
383121057 ASM-TUBELINE,ACASM-TUBELINE,AC
