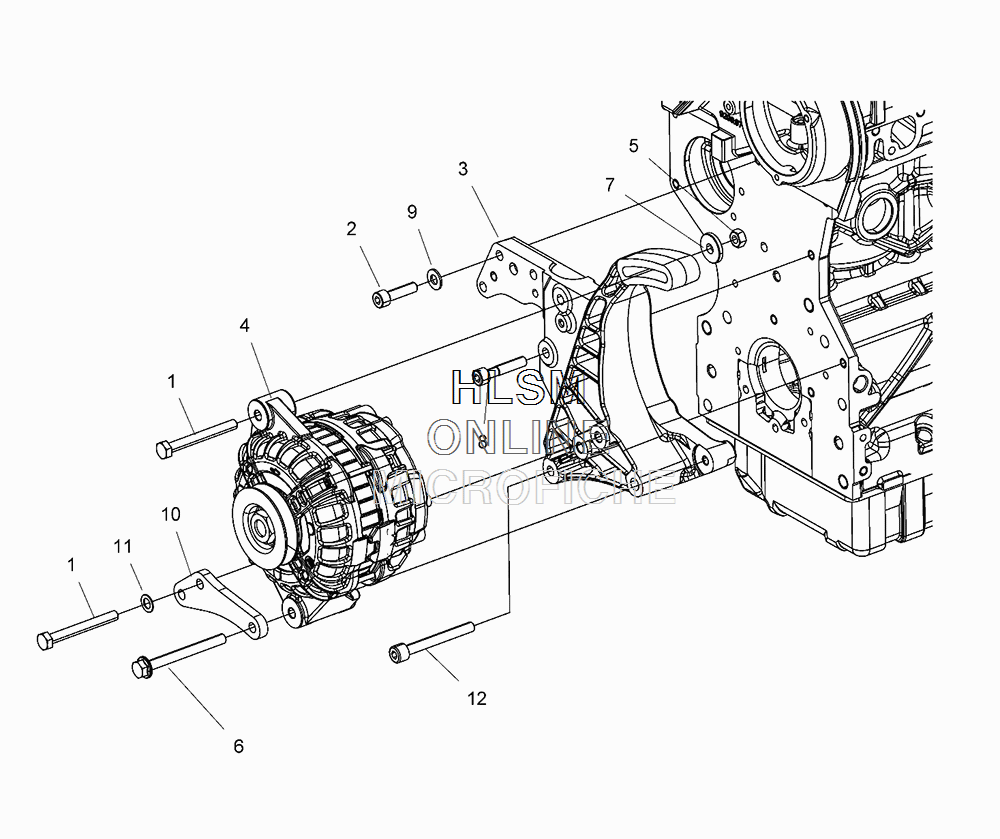

ALTERNATOR для Polaris RANGER CREW 1000 DIESEL MD (R18RVAD1N1) - 2018 года выпуска
-
№АртикулНазвание
-
13040025 SCREW, HXHDSCREW, HXHD
-
23040227 SCREW, SCHD, M8X30SCREW, SCHD, M8X30
-
33040187 BRACKET, ALTERNATORBRACKET, ALTERNATOR
-
43040001 ALTERNATORALTERNATOR
-
53040054 NUT, HEX, M8NUT, HEX, M8
-
63040029 SCREW, M8X80SCREW, M8X80
-
73040150 WASHER, 8.4X25X3WASHER, 8.4X25X3
-
83040220 SCREW SCHD CAP, M8X40SCREW SCHD CAP, M8X40
-
93040146 WASHER, 8.4X17X1.6WASHER, 8.4X17X1.6
-
103040185 BRACKET, FRONTBRACKET, FRONT
-
113040143 WASHER, BELLE, 8.4X15X0.8WASHER, BELLE, 8.4X15X0.8
-
123040296 SCREW, M8X70SCREW, M8X70
