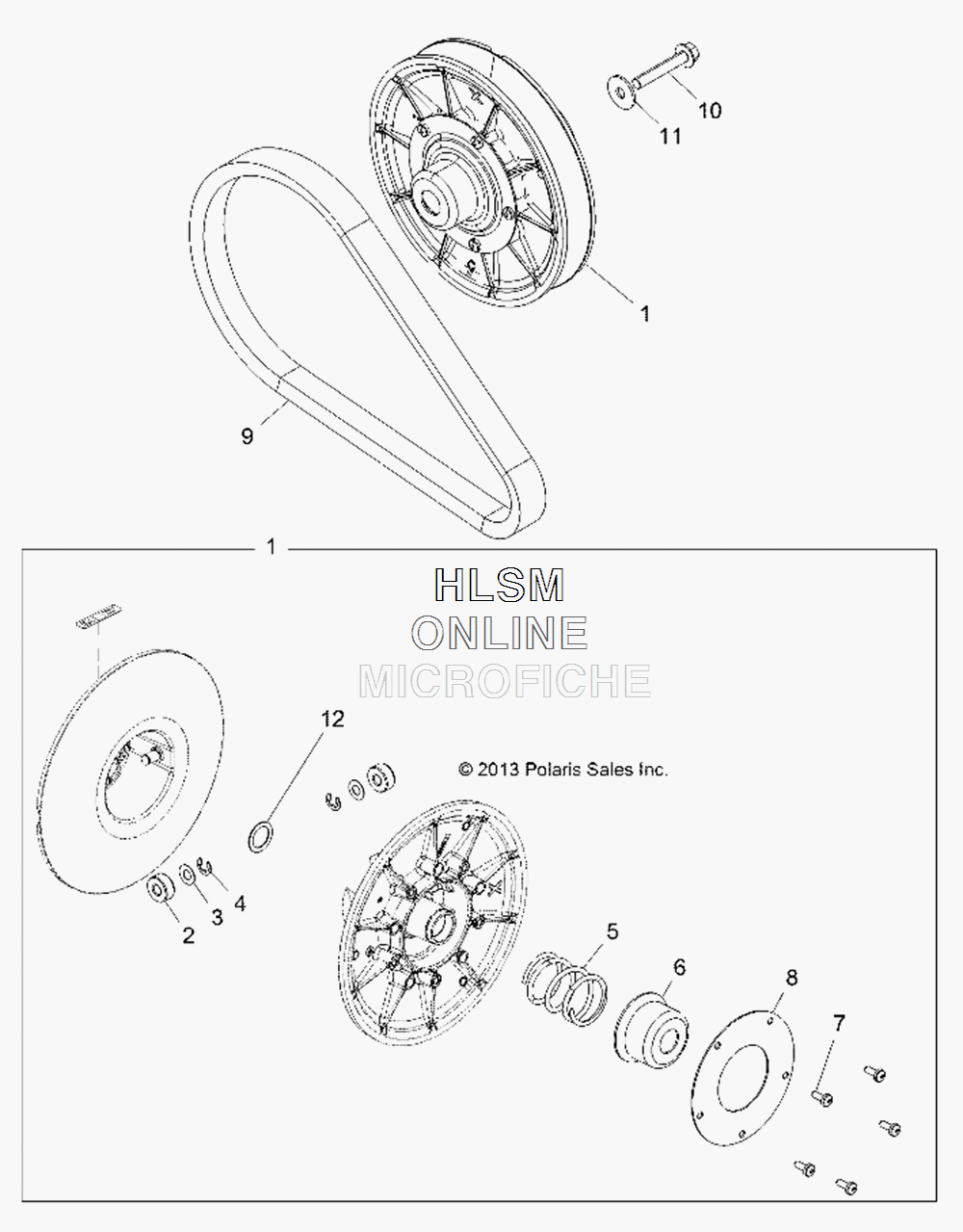

CLUTCH- SECONDARY для Polaris RANGER CREW 1000 DIESEL MD (R18RVAD1N1) - 2018 года выпуска
-
№АртикулНазвание
-
11323119 ASM-CLUTCH, DRIVEN (INCL. 2-8, 12)ASM-CLUTCH, DRIVEN (INCL. 2-8, 12)
-
25439831 ROLLER, CLUTCHROLLER, CLUTCH
-
37556226 WASHER, THRUSTWASHER, THRUST
-
47710523 RING, RETAININGRING, RETAINING
-
57044015 SPRING, COMPRESSIONSPRING, COMPRESSION
-
65256403 CUP, SPRING BOSSCUP, SPRING BOSS
-
77519735 SCREWSCREW
-
93211175 BELT-DRIVEBELT-DRIVE
-
93211193 BELT (OPT)BELT (OPT)
-
107519210 SCREWSCREW
-
117555846 WASHER, FLATWASHER, FLAT
-
127556745 WASHER, THRUSTWASHER, THRUST
-
127556483 WASHER-30MM ODX 21MM ID X 1.5 (FOR ALIGNMENT OF CLUTCH)WASHER-30MM ODX 21MM ID X 1.5 (FOR ALIGNMENT OF CLUTCH)
