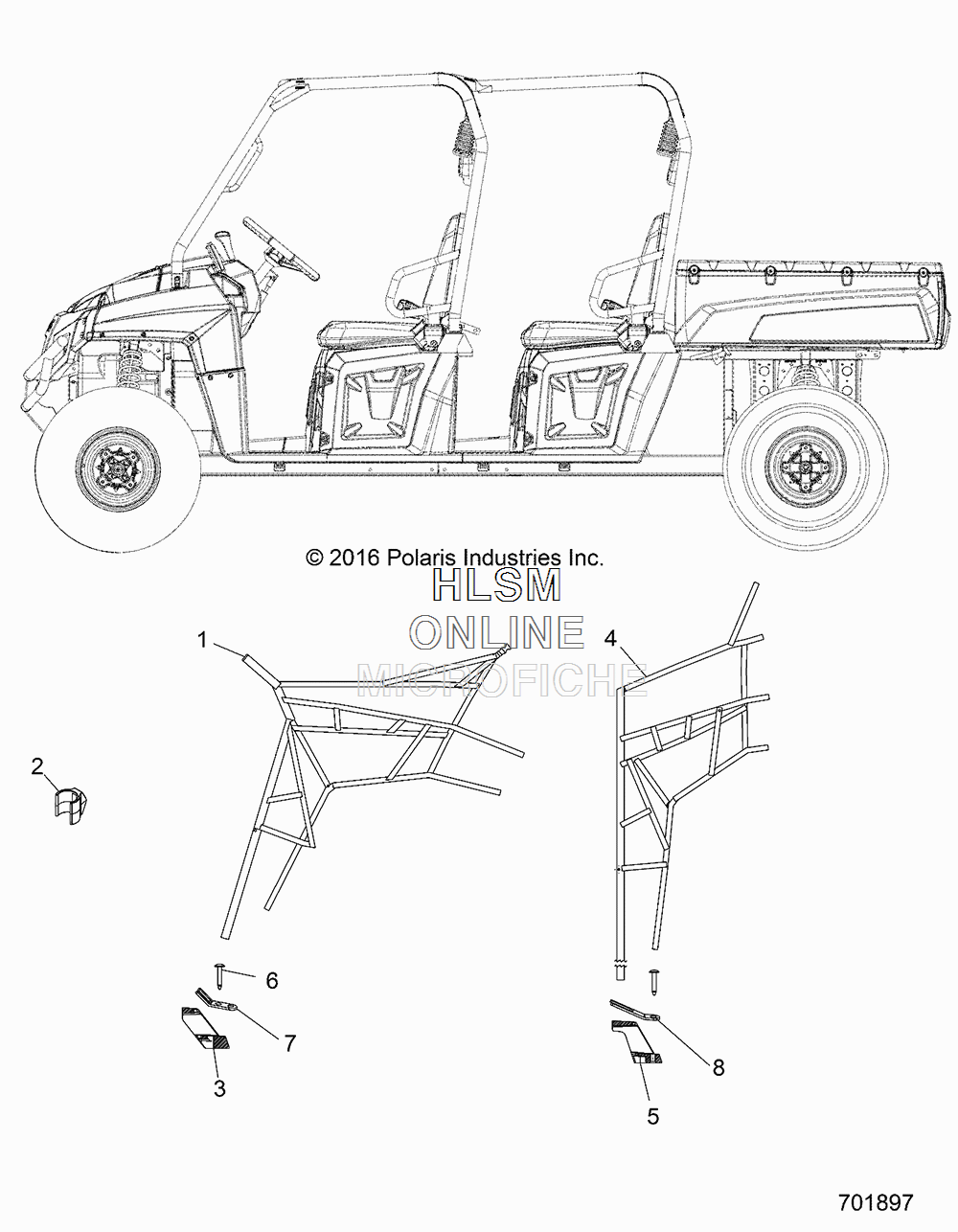

SIDE NETS для Polaris RANGER CREW 570-6 SAGE GREEN (R18RDA57A1) - 2018 года выпуска
-
№АртикулНазвание
-
12204420 CLIP, UPPER, REARCLIP, UPPER, REAR
-
12204585 BUCKLE, UPPER NETBUCKLE, UPPER NET
-
12685119 NET, SIDENET, SIDE
-
25438685 MOUNT, SIDE NET, UPPERMOUNT, SIDE NET, UPPER
-
35438686 MOUNT, SIDE NET, LOWERMOUNT, SIDE NET, LOWER
-
42685125 NET, SIDE, REARNET, SIDE, REAR
-
55438777 MOUNT, SIDE NET, LOWERMOUNT, SIDE NET, LOWER
-
67518375 SCR-1/4-20X1.50 TR/TX-MSCR-1/4-20X1.50 TR/TX-M
-
75263354 BRKT-MNT, NETBRKT-MNT, NET
-
85263355 BRKT-MNT, NET, CREWBRKT-MNT, NET, CREW
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY W/BRACKET
- BOX ASM.
- BOX ASM. W/ TAILGATE
- BOX SUPPORT W/ SHOCK
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKES - CALIPER - FRONT
- BRAKES - CALIPER - REAR
- BREATHER PIPE
- BUMPER - FRONT
- CAB FRAME
- CAM CHAIN W/ SPROCKET
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH COVER W/ DUCTING
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON AND BALANCE SHAFT
- CYLINDER
- CYLINDER HEAD - CAM - VALVES
- DASH INSTRUMENTS AND CONTROLS
- DECALS
- DRIVESHAFT - FRONT
- DRIVESHAFT - REAR
- ELECTRICAL - SENSORS
- EXHAUST MANIFOLD
- FLOOR AND FENDERS
- FRAME
- FUEL INJECTOR
- FUEL TANK ASM.
- GEAR SELECTOR W/DIFFERENTIAL LOCK
- GEARCASE - CARRIER - INTERNAL COMPONENTS
- GEARCASE - FRONT - MOUNTING
- GEARCASE - INTERNAL COMPONENTS - FRONT
- GEARCASE - MAIN - MOUNTING
- GLOVE BOX STORAGE
- HEADLIGHT - TAILLIGHT W/ BULBS
- HOOD - BUMPER - FENDER - WINCH COVER
- IGNITION
- MASTER CYLINDER AND PEDAL
- MOUNTING - ENGINE W/ TRANSMISSION
- OIL FILTER W/ DIPSTICK
- OIL PUMP
- OWNERS MANUAL
- PROP SHAFT - FRONT AND REAR
- SEAT ASSY.
- • SIDE NETS
- STARTING MOTOR
- STATOR COVER W/ FLYWHEEL
- STEERING ASM.
- SUSPENSION - A-ARM/STRUT - MOUNTING
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- SUSPENSION - TORSION BAR
- THERMOSTAT W/ COVER
- THROTTLE BODY W/ FUEL RAIL
- THROTTLE PEDAL
- VALVE COVER
- WATER PUMP IMPELLER W/ COVER
- WHEEL - FRONT
- WHEEL - REAR
- WIRE HARNESS
