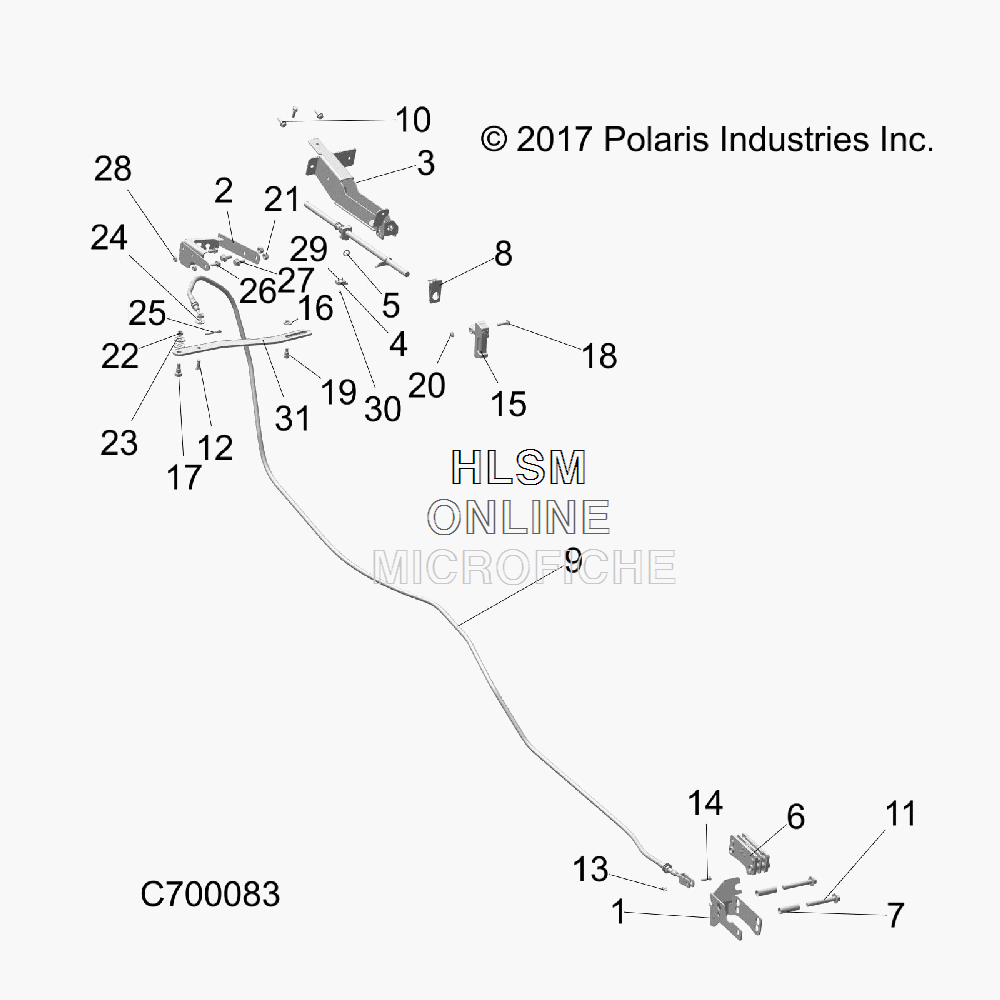

BRAKE ASM. - PARK для Polaris RANGER XP 1000 EU/MD/ZUG (R18RRE99FM) - 2018 года выпуска
-
№АртикулНазвание
-
11023581-458 WELD-BRKT-SHIFT, PB, CABLE, BLKWELD-BRKT-SHIFT, PB, CABLE, BLK
-
21023842-329 WELD-BRKT-CABLE, PB, BLKWELD-BRKT-CABLE, PB, BLK
-
31913021 ASM-T LEVER, PARK BRAKE (INCL 3, 4, 5)ASM-T LEVER, PARK BRAKE (INCL 3, 4, 5)
-
31023580 WELD-PARK BRAKE BRKTWELD-PARK BRAKE BRKT
-
41911443 SWITCH-PARK BRAKE, SVCSWITCH-PARK BRAKE, SVC
-
57710508 RING-RTNG, EXT, 11.9X.6, 0600096RING-RTNG, EXT, 11.9X.6, 0600096
-
61913062 ASM-CLPR, PB, AFT-SB230C, RVT, MNIASM-CLPR, PB, AFT-SB230C, RVT, MNI
-
75340644 SPACER, PARKING BRAKE, 46.8SPACER, PARKING BRAKE, 46.8
-
85454628 PLUG-HOLE, PARK BRAKEPLUG-HOLE, PARK BRAKE
-
97082336 CABLE-PARKING BRAKE, FRGR, EUCABLE-PARKING BRAKE, FRGR, EU
-
107518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BKSCR-M6X1.0X20, HXHD, FLG, TDFM, BK
-
117518561 BOLT-M10X1.25X70, HXFLG-OLIVE DBOLT-M10X1.25X70, HXFLG-OLIVE D
-
127661037 PIN-CLEVIS, 5/16 X 3/4PIN-CLEVIS, 5/16 X 3/4
-
137661140 PIN-CLIP, 14MMPIN-CLIP, 14MM
-
147661843 PIN-CLEVIS, 1/4 X 3/4 -YPIN-CLEVIS, 1/4 X 3/4 -Y
-
155454550 HANDLE-BRAKE, PARKHANDLE-BRAKE, PARK
-
165454747 SPACER-FLATSPACER-FLAT
-
177517852 SCR-SOCHDSHLDR, M8X13, 10DX10LSCR-SOCHDSHLDR, M8X13, 10DX10L
-
187518535 SCR-TXPHM6X1.0X25 8.8 RIESCR-TXPHM6X1.0X25 8.8 RIE
-
197519099 BOLT-M6X1.0X8, 8 MM SHLDBOLT-M6X1.0X8, 8 MM SHLD
-
207547120 NUT-HEXHD, M6, DIN980V, 0600100NUT-HEXHD, M6, DIN980V, 0600100
-
217547405 NUT-M8X1.25C10, HX, NYL, DIN982, ZNUT-M8X1.25C10, HX, NYL, DIN982, Z
-
227547501 NUT-HEX-M8X1.25 10 ZY3 P30NUT-HEX-M8X1.25 10 ZY3 P30
-
237555984 WSHR-FL .445X1.00X.093-YWSHR-FL .445X1.00X.093-Y
-
247556216 WASHER-.315/.325X.88X.075, FL-YWASHER-.315/.325X.88X.075, FL-Y
-
257663003 PIN-COTTER, M4X32, SSPIN-COTTER, M4X32, SS
-
267520143 SCR-HXFL-M6X1.0X14, 8.8 ZPBSCR-HXFL-M6X1.0X14, 8.8 ZPB
-
277520305 SCR-HXFL-M8X1.25X16 8.8 ZPBSCR-HXFL-M8X1.25X16 8.8 ZPB
-
287546703 NUT-6MM X 1 NYLOK-ZNUT-6MM X 1 NYLOK-Z
-
297520929 SCREW-M2X14SCREW-M2X14
-
307520930 WASHER-M2WASHER-M2
-
315264692-329 BRKT-LEVER, BLKBRKT-LEVER, BLK
