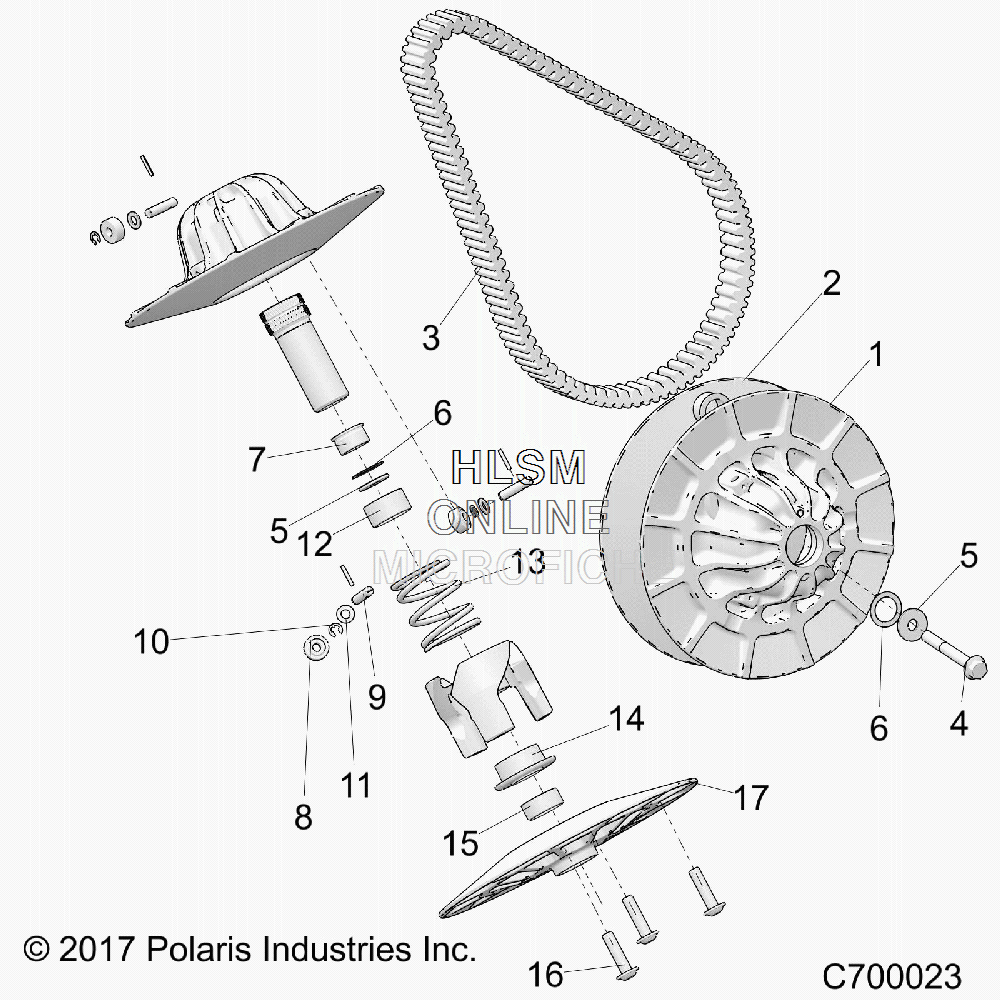

CLUTCH - SECONDARY для Polaris RANGER XP 1000 EU/MD/ZUG (R18RRE99FM) - 2018 года выпуска
-
№АртикулНазвание
-
11323450 ASM-DRIVEN, STATIONARY, P90X (INCL. 5-16)ASM-DRIVEN, STATIONARY, P90X (INCL. 5-16)
-
21323451 ASM-DRIVEN, MOVEABLE, P90X (INCL. 13, 14, 16, 17)ASM-DRIVEN, MOVEABLE, P90X (INCL. 13, 14, 16, 17)
-
33211186 BELT, DRIVEBELT, DRIVE
-
47519363 SCR-HXFL-M10X1.25X80 8.8 ZODSCR-HXFL-M10X1.25X80 8.8 ZOD
-
57556698 WASHER-FLAT M10X30X2.5 HARDENWASHER-FLAT M10X30X2.5 HARDEN
-
67557060 SHIM-RING, 23.25X32.25X0.5SHIM-RING, 23.25X32.25X0.5
-
75141303 BUSHING-P90X, 29X22X17BUSHING-P90X, 29X22X17
-
85454447 ROLLER-8X22X11.25, PAI4203ROLLER-8X22X11.25, PAI4203
-
95141086 PIN-DRIVEN, ROLLER, 8MMPIN-DRIVEN, ROLLER, 8MM
-
107710466 E-CLIP, M6, DIN 6799E-CLIP, M6, DIN 6799
-
117557065 WSHR-8.4X16X1.6ZY3 HARDWSHR-8.4X16X1.6ZY3 HARD
-
123514903 BEARING-DU, 35X20BEARING-DU, 35X20
-
137044761 SPRING, DRIVENSPRING, DRIVEN
-
145633759 CUP-DRIVEN SPRING, P90XCUP-DRIVEN SPRING, P90X
-
153515007 BUSHING, DU, P90XBUSHING, DU, P90X
-
167520698 SCR-TXFLBH-M10X1.25X40 10.9SPCSCR-TXFLBH-M10X1.25X40 10.9SPC
-
171323455 ASM-MOVEABLE SHEAVEASM-MOVEABLE SHEAVE
