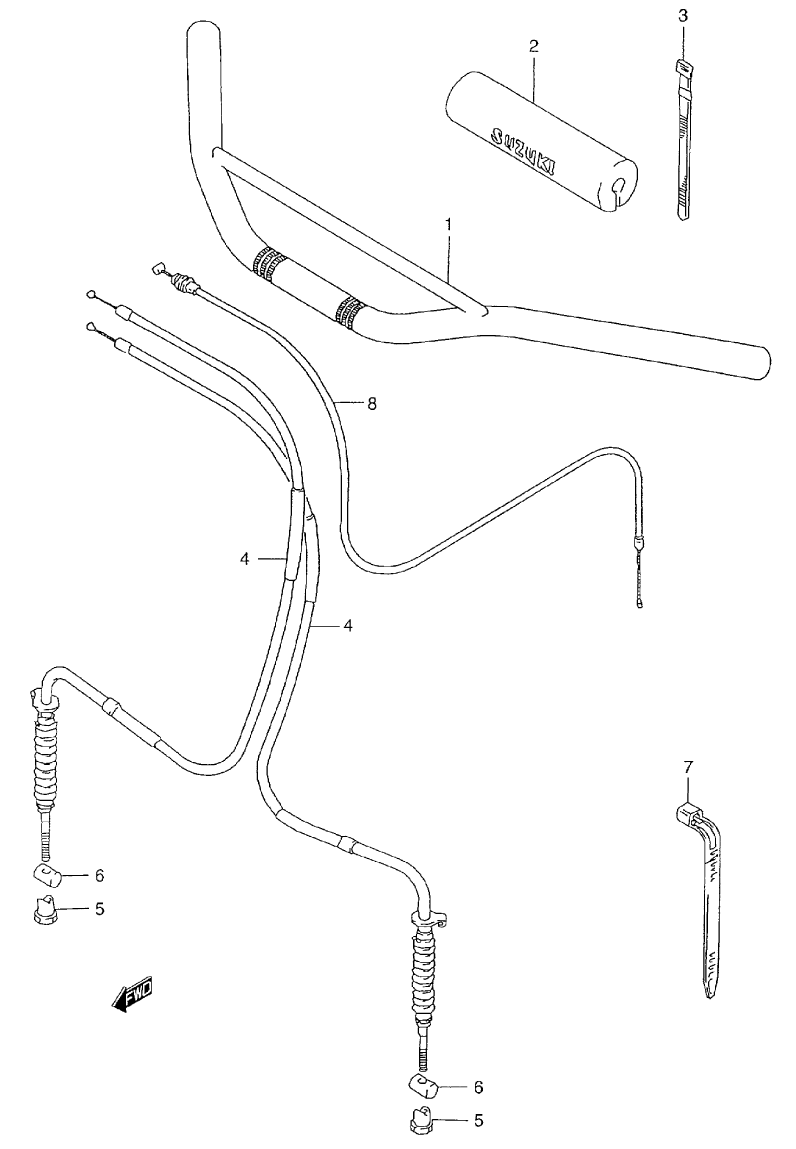

HANDLEBAR W/ CABLES для Suzuki LT80Y QUADSPORT - 2000 года выпуска
-
№АртикулНазвание
-
156110-40B00-291 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
256172-24500 PAD, CROSSPAD, CROSS
-
309407-14407 CLAMPCLAMP
-
458110-40B00 CABLE, FRONT BRAKECABLE, FRONT BRAKE
-
509150-06014 NUTNUT
-
609209-11002 PINPIN
-
709407-14403 CLAMPCLAMP
-
858300-40B00 CABLE ASSY , THROTTLECABLE ASSY , THROTTLE
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - REAR PEDAL
- CARBURETOR
- COOLING FAN W/ DUCTS
- CRANKCASE
- CRANKCASE LEFT COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BUMBER
- FRAME
- FUEL TANK
- HANDLEBAR - LEVERS / SWITCHES
- • HANDLEBAR W/ CABLES
- KNUCKLE W/ TIE RODS
- LABELS
- MAGNETO
- MODEL INFO - COLOR TABLE
- MUFFLER
- OIL PUMP
- OIL TANK
- OPTIONAL
- SEAT
- SHOCK ABSORBER - REAR W/GUARD AND CHAIN CASE
- STARTER - RECOIL (OPT)
- STARTING MOTOR
- STEERING SHAFT
- SUSPENSION - FRONT ARM W/ SHOCK
- TRANSMISSION (1)
- TRANSMISSION (2)
- WHEEL - FRONT
- WHEEL - REAR W/ AXLE - BRAKE
