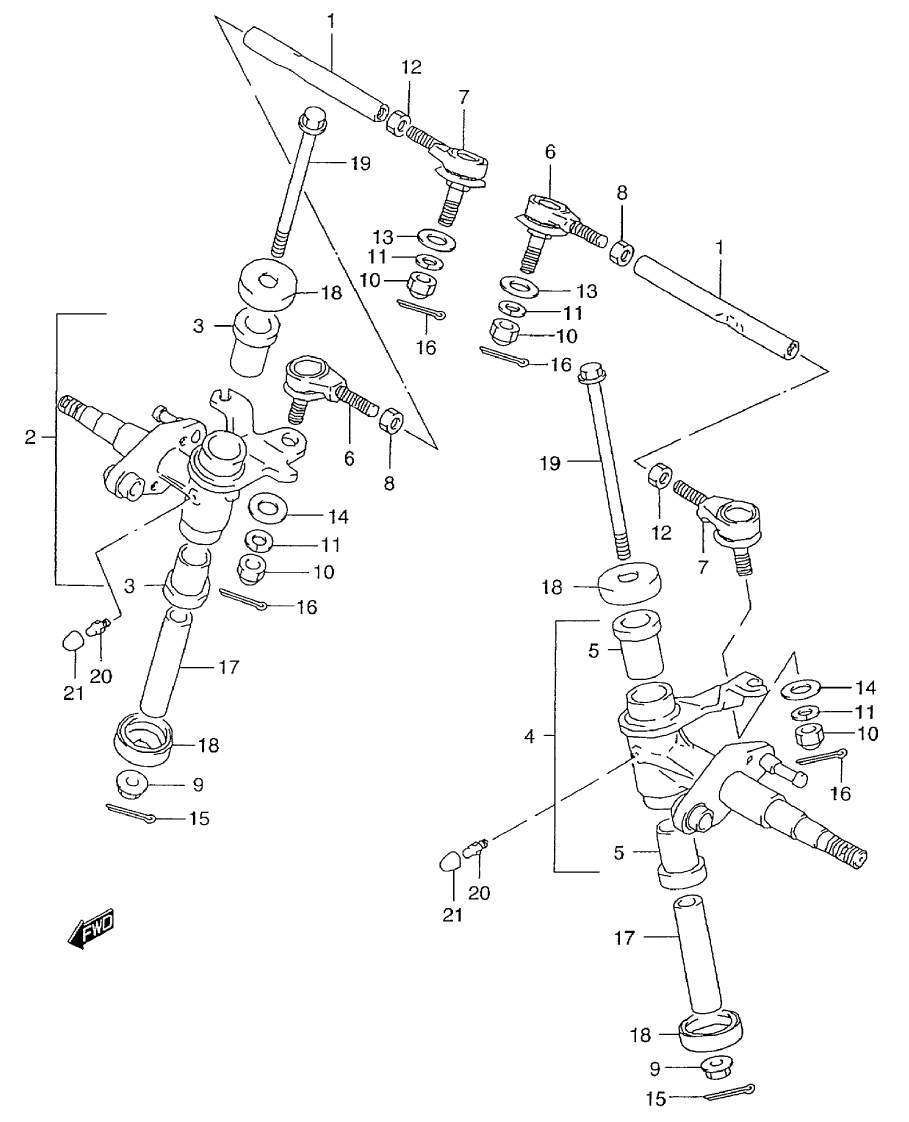

KNUCKLE W/ TIE RODS для Suzuki LT80Y QUADSPORT - 2000 года выпуска
-
№АртикулНазвание
-
151281-40B00 TIE ROD, STEERINGTIE ROD, STEERING
-
251230-40B00 ARM, RHARM, RH
-
351236-40B00 ...BUSH...BUSH
-
451240-40B00 ARM, KNUCKLE LHARM, KNUCKLE LH
-
551236-40B00 BUSHBUSH
-
651260-41B01 ROD END. (RH THREAD)ROD END. (RH THREAD)
-
751270-41B01 ROD END, (THREAD LH)ROD END, (THREAD LH)
-
809140-10043 NUT, TIE ROD (RH THREAD)NUT, TIE ROD (RH THREAD)
-
908319-31107 NUTNUT
-
1008319-21103 NUTNUT
-
1109162-10008 LOCK WASHERLOCK WASHER
-
1209140-10027 NUT, TIE ROD (LH THREAD)NUT, TIE ROD (LH THREAD)
-
1309160-10132 WASHER, ROD-END INNERWASHER, ROD-END INNER
-
1409160-10026 WASHER , ROD-END OUTERWASHER , ROD-END OUTER
-
1504111-20208 COTTER PINCOTTER PIN
-
1604111-20208 COTTER !PINCOTTER !PIN
-
1751251-40B00 SPACER, KINGPINSPACER, KINGPIN
-
1851255-18900 DUST SEALDUST SEAL
-
1951256-40B00 BOLT, KNUCKLE AIRBOLT, KNUCKLE AIR
-
2008351-21008 NIPPLE, GREASENIPPLE, GREASE
-
2161442-33310 CAP, GREASE NIPPLECAP, GREASE NIPPLE
