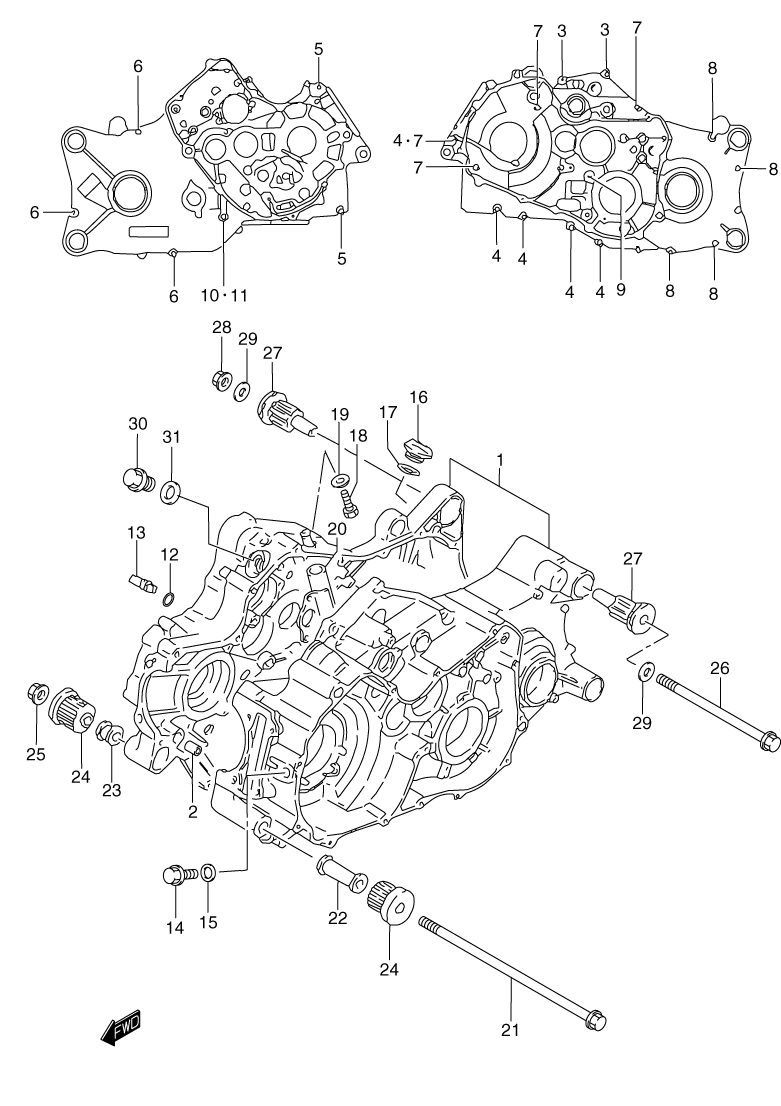

CRANKCASE для Suzuki LT-F250FK1 4X4 - 2001 года выпуска
-
№АртикулНазвание
-
111301-19862 CRANKCASE SETCRANKCASE SET
-
204211-13189 ...PIN (10.4X13X18)...PIN (10.4X13X18)
-
301547-06303 ...BOLT...BOLT
-
401547-06403 ...BOLT...BOLT
-
501547-06453 ...BOLT...BOLT
-
601547-06503 ...BOLT...BOLT
-
701547-06653 ...BOLT...BOLT
-
801547-06903 ...BOLT...BOLT
-
909103-08072 ...BOLT (8X90)...BOLT (8X90)
-
1009103-08217 ...BOLT (8X60)...BOLT (8X60)
-
1109168-08021 ...GASKET...GASKET
-
1209280-04004 ...O-RING, OIL GALLERY JET...O-RING, OIL GALLERY JET
-
1309493-36004 ...JET, OIL GALLERY...JET, OIL GALLERY
-
1409247-14015 PLUG, TDCPLUG, TDC
-
1509168-14002 GASKETGASKET
-
1609200-30810 CAP, OIL FILLERCAP, OIL FILLER
-
1709280-26006 O-RING (D:3.1,ID:26.4)O-RING (D:3.1,ID:26.4)
-
1809247-12106 PLUG, OIL DRAINPLUG, OIL DRAIN
-
1909168-12002 GASKETGASKET
-
20-211380-19B41 PIPE, BREATHERPIPE, BREATHER
-
2109103-12016 BOLT (12X300)BOLT (12X300)
-
2211610-19B00 SPACER (L:60)SPACER (L:60)
-
23-111611-17E00 SPACER (L:13)SPACER (L:13)
-
2411681-20B00 BUSH (L:41)BUSH (L:41)
-
2508319-31128 NUTNUT
-
2609103-10221 BOLT (10X240)BOLT (10X240)
-
2711650-19B10 BUSH (L:85)BUSH (L:85)
-
2809159-10047 NUTNUT
-
2908322-01103 WASHERWASHER
-
3011398-19BA0 PLUG, REVERSE SWITCH HOLEPLUG, REVERSE SWITCH HOLE
-
3109280-16008 O-RING (D:3.2,ID:15.8)O-RING (D:3.2,ID:15.8)
