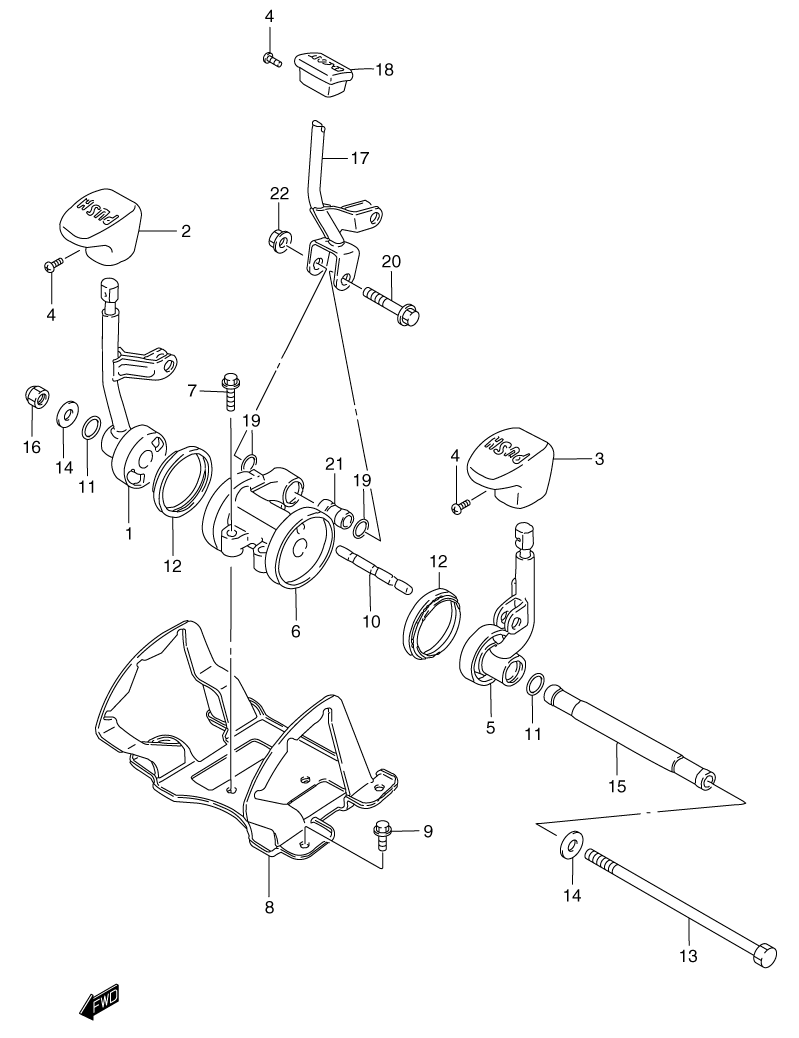

TRANSMISSION LEVER для Suzuki LT-F250FK1 4X4 - 2001 года выпуска
-
№АртикулНазвание
-
157900-19840 LEVER SET, SUB T/M SHIFTLEVER SET, SUB T/M SHIFT
-
2-257980-19B01-291 KNOB, SHIFT LEVER (RIGHT) (BLACK)KNOB, SHIFT LEVER (RIGHT) (BLACK)
-
3-257930-19B01-291 KNOB, SHIFT LEVER (LEFT) (BLACK)KNOB, SHIFT LEVER (LEFT) (BLACK)
-
402142-04083 SCREW, SHIFT KNOBSCREW, SHIFT KNOB
-
557900-19851 LEVER SET, T/F SHIFTLEVER SET, T/F SHIFT
-
657931-19B01 BODY, T/F SHIFTBODY, T/F SHIFT
-
701550-06253 BOLT, T/F SHIFT BODYBOLT, T/F SHIFT BODY
-
8-257940-19B30 PLATE, T/F SHIFT BODYPLATE, T/F SHIFT BODY
-
901550-06103 BOLT, T/F SHIFT PLATEBOLT, T/F SHIFT PLATE
-
1057932-19B01 ROD, T/F SHIFT STOPPERROD, T/F SHIFT STOPPER
-
1109280-14007 O-RING, T/F SHIFT LEVERO-RING, T/F SHIFT LEVER
-
1209284-44001 DUST SEAL, T/F SHIFT LEVERDUST SEAL, T/F SHIFT LEVER
-
1309100-08142 BOLT, T/F SHIFT LEVERBOLT, T/F SHIFT LEVER
-
1409160-08016 WASHER, T/F SHIFT LEVERWASHER, T/F SHIFT LEVER
-
1509180-08135 SPACER, T/F SHIFT LEVERSPACER, T/F SHIFT LEVER
-
1608319-21088 NUT, T/F SHIFT LEVERNUT, T/F SHIFT LEVER
-
1757970-19B01 LEVER, REVERSELEVER, REVERSE
-
1858860-19B00-30D KNOB, REVERSE CABLE (RED)KNOB, REVERSE CABLE (RED)
-
1909280-12001 O-RING, REVERSE LEVER PIVOTO-RING, REVERSE LEVER PIVOT
-
2009103-08004 BOLT, REVERSE LEVER PIVOTBOLT, REVERSE LEVER PIVOT
-
2109180-08139 SPACER, REVERSE LEVER PIVOTSPACER, REVERSE LEVER PIVOT
-
2208316-10083 NUT, REVERSE LEVER PIVOTNUT, REVERSE LEVER PIVOT
