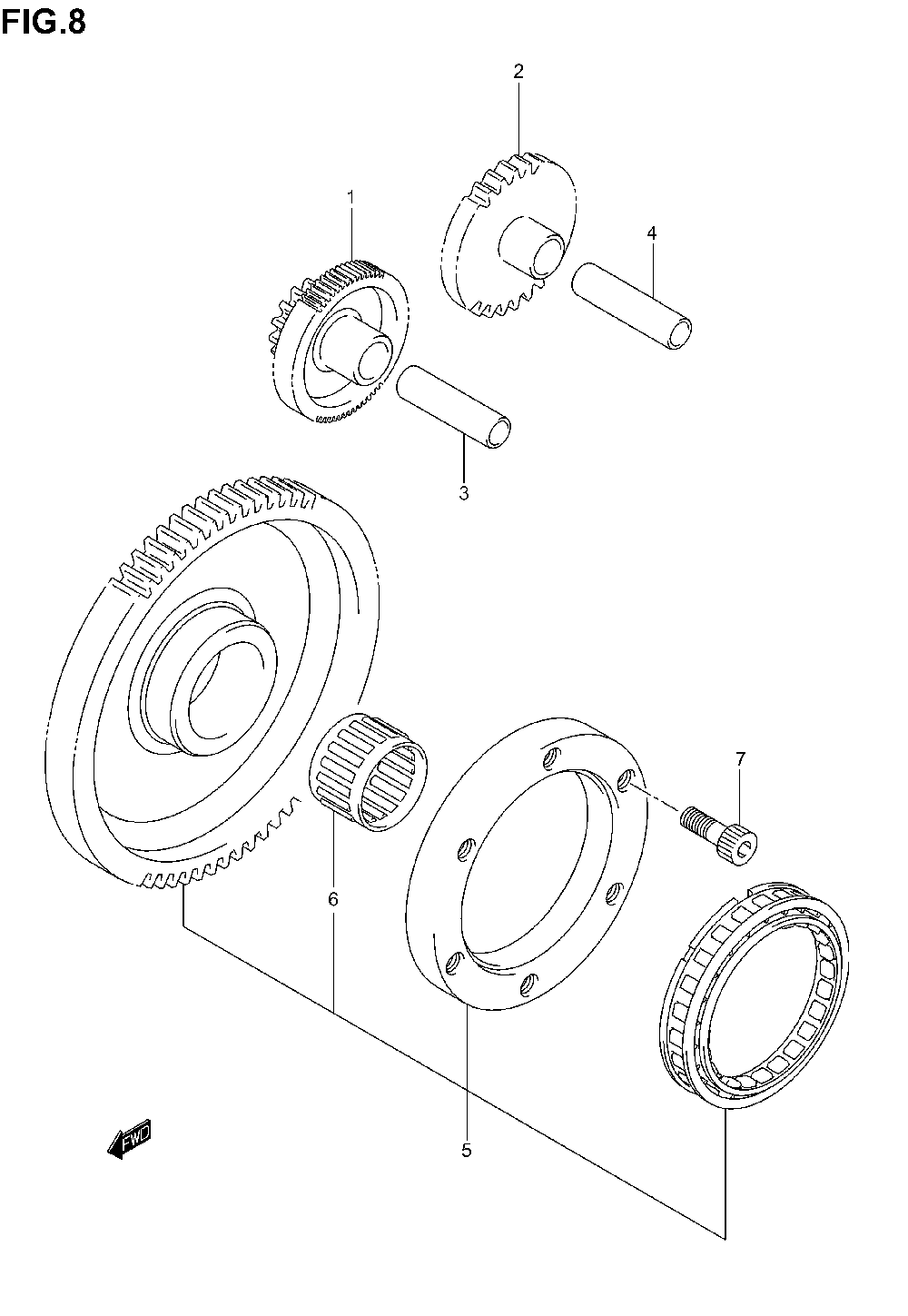

STARTER CLUTCH для Suzuki LT-A400C EIGER - 2003 года выпуска
-
№АртикулНазвание
-
112611-38F00 GEAR, STARTER IDLE NO.1 (NT:10/56)GEAR, STARTER IDLE NO.1 (NT:10/56)
-
212612-12D01 GEAR, STARTER IDLE NO.2 (NT:18/27)GEAR, STARTER IDLE NO.2 (NT:18/27)
-
309206-12005 PIN, STARTER IDLE GEAR NO.1PIN, STARTER IDLE GEAR NO.1
-
409206-12006 PIN, STARTER IDLE GEAR NO.2PIN, STARTER IDLE GEAR NO.2
-
512600-38850 CLUTCH SET, STARTERCLUTCH SET, STARTER
-
609263-29008 BEARING (29X36X18)BEARING (29X36X18)
-
707130-08203 BOLT (8X20)BOLT (8X20)
