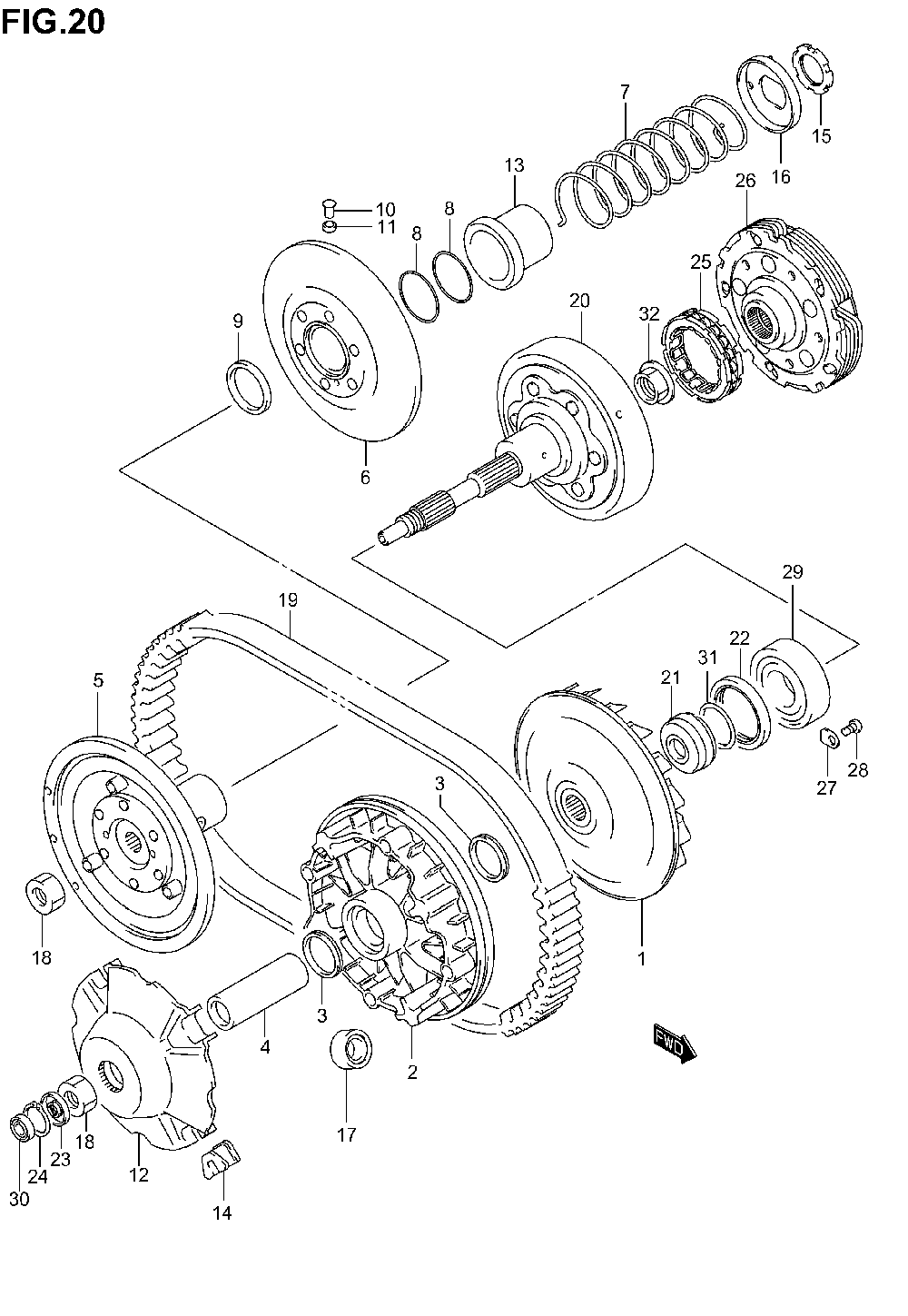

TRANSMISSION (1) для Suzuki LT-A400C EIGER - 2003 года выпуска
-
№АртикулНазвание
-
121110-38F00 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
221120-38F00 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
321124-14F00 SEAL, MOVABLE DRIVESEAL, MOVABLE DRIVE
-
421125-38F01 SPACER, MOVABLE DRIVESPACER, MOVABLE DRIVE
-
521210-38F01 FACE, FIXED DRIVENFACE, FIXED DRIVEN
-
621240-38F01 FACE, MOVABLE DRIVENFACE, MOVABLE DRIVEN
-
721243-38F01 SPRING, MOVABLE DRIVENSPRING, MOVABLE DRIVEN
-
821245-38F00 O RING, MOVABLE DRIVENO RING, MOVABLE DRIVEN
-
921247-38F00 SEAL, MOVABLE DRIVENSEAL, MOVABLE DRIVEN
-
1021248-15F01 PIN, MOVABLE DRIVENPIN, MOVABLE DRIVEN
-
1121249-15F00 SPACER, MOVABLE DRIVENSPACER, MOVABLE DRIVEN
-
1221431-38F00 PLATE, MOVABLE DRIVEPLATE, MOVABLE DRIVE
-
1321471-38F01 SHEET, MOVABLE DRIVENSHEET, MOVABLE DRIVEN
-
1421481-14F00 DAMPER, MOVABLE DRIVEDAMPER, MOVABLE DRIVE
-
1521518-38F00 NUT, DRIVEN PULLEYNUT, DRIVEN PULLEY
-
1621519-38F00 HOLDER, MOVABLE DRIVENHOLDER, MOVABLE DRIVEN
-
1721650-15F20 ROLLER, MOVABLE DRIVEROLLER, MOVABLE DRIVE
-
1809140-16032 NUT, FACENUT, FACE
-
1927601-38F00 V-BELT, DRIVEV-BELT, DRIVE
-
2021100-38F00 HOUSING, CLUTCHHOUSING, CLUTCH
-
2121102-38F00 SPACER, FIXED DRIVE LEFT HANDSPACER, FIXED DRIVE LEFT HAND
-
2221104-09F53 SEAL, CLUTCH HOUSING (UP TO F.NO.5SAAK46K3X102000)SEAL, CLUTCH HOUSING (UP TO F.NO.5SAAK46K3X102000)
-
2221104-09F56 SEAL, CLUTCH HOUSING (F.NO.5SAAK46K3X102001 AND ABOVE)SEAL, CLUTCH HOUSING (F.NO.5SAAK46K3X102001 AND ABOVE)
-
2309283-12008 SEAL, CLUTCH HOUSING RIGHT HANDSEAL, CLUTCH HOUSING RIGHT HAND
-
2408331-41326 CIRCLIPCIRCLIP
-
2521273-44D00 CLUTCH, ONE WAYCLUTCH, ONE WAY
-
2621500-38F10 CLUTCH ASSY, SHOECLUTCH ASSY, SHOE
-
2724741-21A00 RETAINER, BEARINGRETAINER, BEARING
-
2809125-06086 SCREW, RETAINER (6X12)SCREW, RETAINER (6X12)
-
2909262-40010 BEARING, CLUTCH HOUSING LEFT HANDBEARING, CLUTCH HOUSING LEFT HAND
-
3008113-62017 BEARING, CLUTCH HOUSINGBEARING, CLUTCH HOUSING
-
3109280-40010 O RING (D:2.4,ID:39.7)O RING (D:2.4,ID:39.7)
-
3209159-18020 NUTNUT
