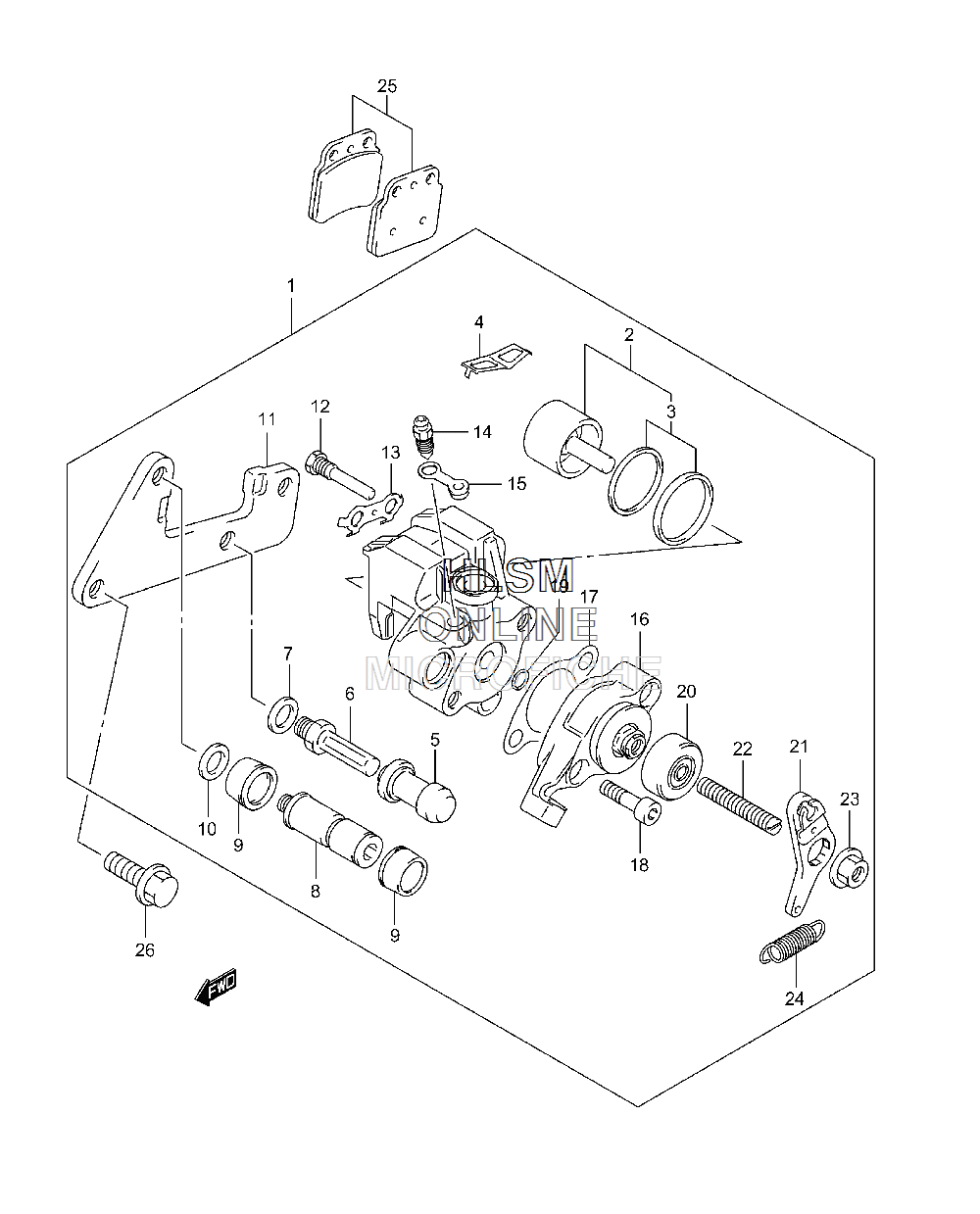

BRAKE - REAR CALIPER для Suzuki LT-Z400F QUADSPORT Z400 - 2003 года выпуска
-
№АртикулНазвание
-
169100-07G00-999 CALIPER ASSY, REAR (INC 2-24)CALIPER ASSY, REAR (INC 2-24)
-
269100-19850 PISTON SETPISTON SET
-
369100-13820 SEAL SET, PISTONSEAL SET, PISTON
-
459315-13A00 SPRING, PADSPRING, PAD
-
559386-13A00 BOOTBOOT
-
659382-13A00 BOLTBOLT
-
759314-13A00 WASHERWASHER
-
869305-19A00 PINPIN
-
959303-13A00 BOOTBOOT
-
1059306-13A00 SPRINGSPRING
-
1169151-07G00 BRACKETBRACKET
-
1259345-13A00 PINPIN
-
1359346-13A00 WASHERWASHER
-
1459121-01A00 BLEEDERBLEEDER
-
1559122-01A00 CAP, BLEEDERCAP, BLEEDER
-
1669320-07G00 PARKINGPARKING
-
1769326-19A01 PACKINGPACKING
-
1869321-19A00 BOLTBOLT
-
1969322-19A00 O RINGO RING
-
2069329-19A00 BOOTBOOT
-
2169325-19A00 ARMARM
-
2269327-19A00 BOLT, ADJUSTBOLT, ADJUST
-
2369323-19A00 NUTNUT
-
2469328-19A00 SPRINGSPRING
-
2569100-07810 PAD SETPAD SET
-
2609103-08156 BOLTBOLT
