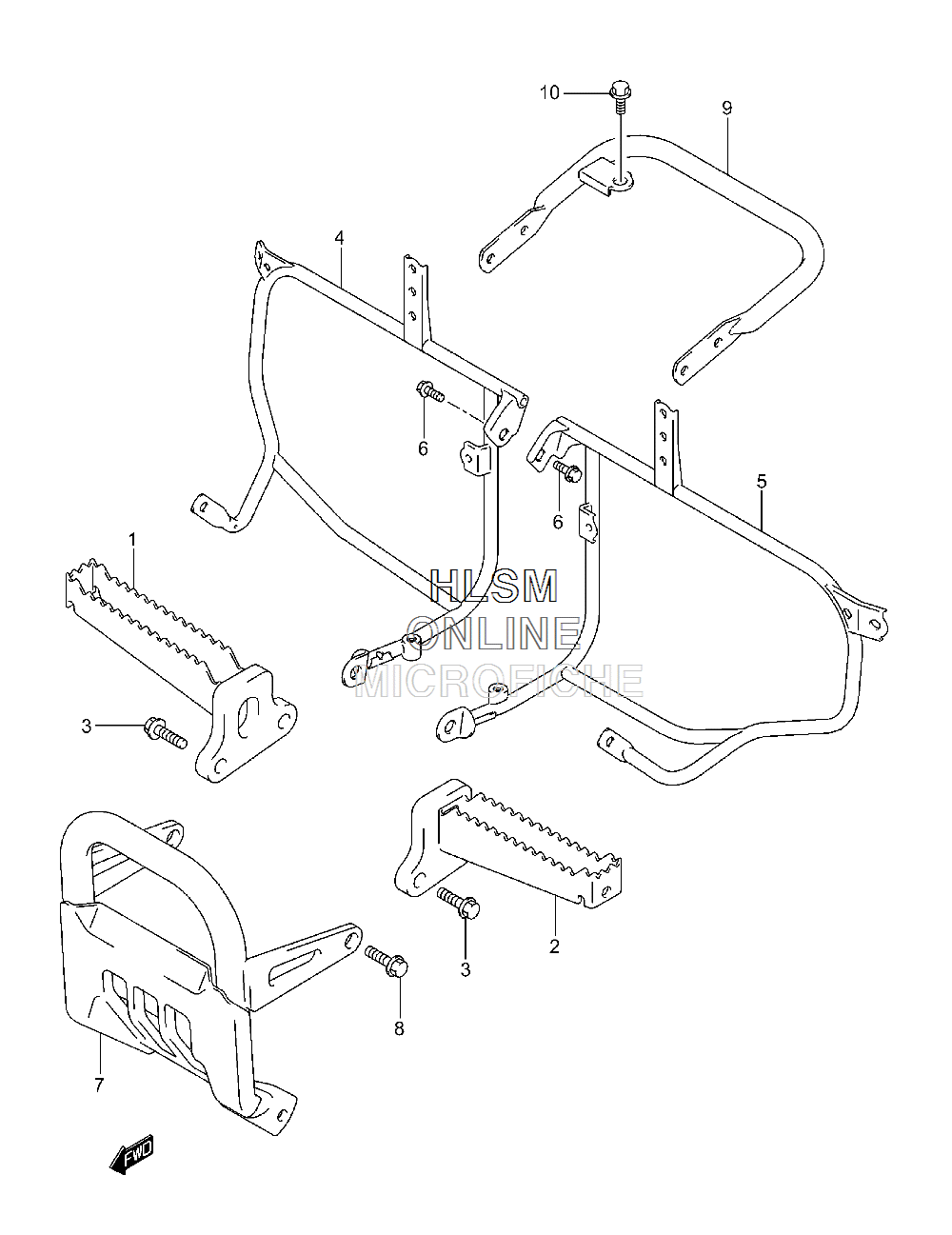

FOOTREST W/ BUMBER для Suzuki LT-Z400F QUADSPORT Z400 - 2003 года выпуска
-
№АртикулНазвание
-
143510-07G00 FOOTREST, RIGHT HANDFOOTREST, RIGHT HAND
-
243520-07G00 FOOTREST, LEFT HANDFOOTREST, LEFT HAND
-
309103-10275 BOLTBOLT
-
443570-07G00 REINFORCE, MUDGUARD RIGHT HANDREINFORCE, MUDGUARD RIGHT HAND
-
543580-07G00 REINFORCE, MUDGUARD LEFT HANDREINFORCE, MUDGUARD LEFT HAND
-
609103-08266 BOLTBOLT
-
743990-07G00-YD8 GRIP, FRONT (SILVER)GRIP, FRONT (SILVER)
-
801550-08163 BOLTBOLT
