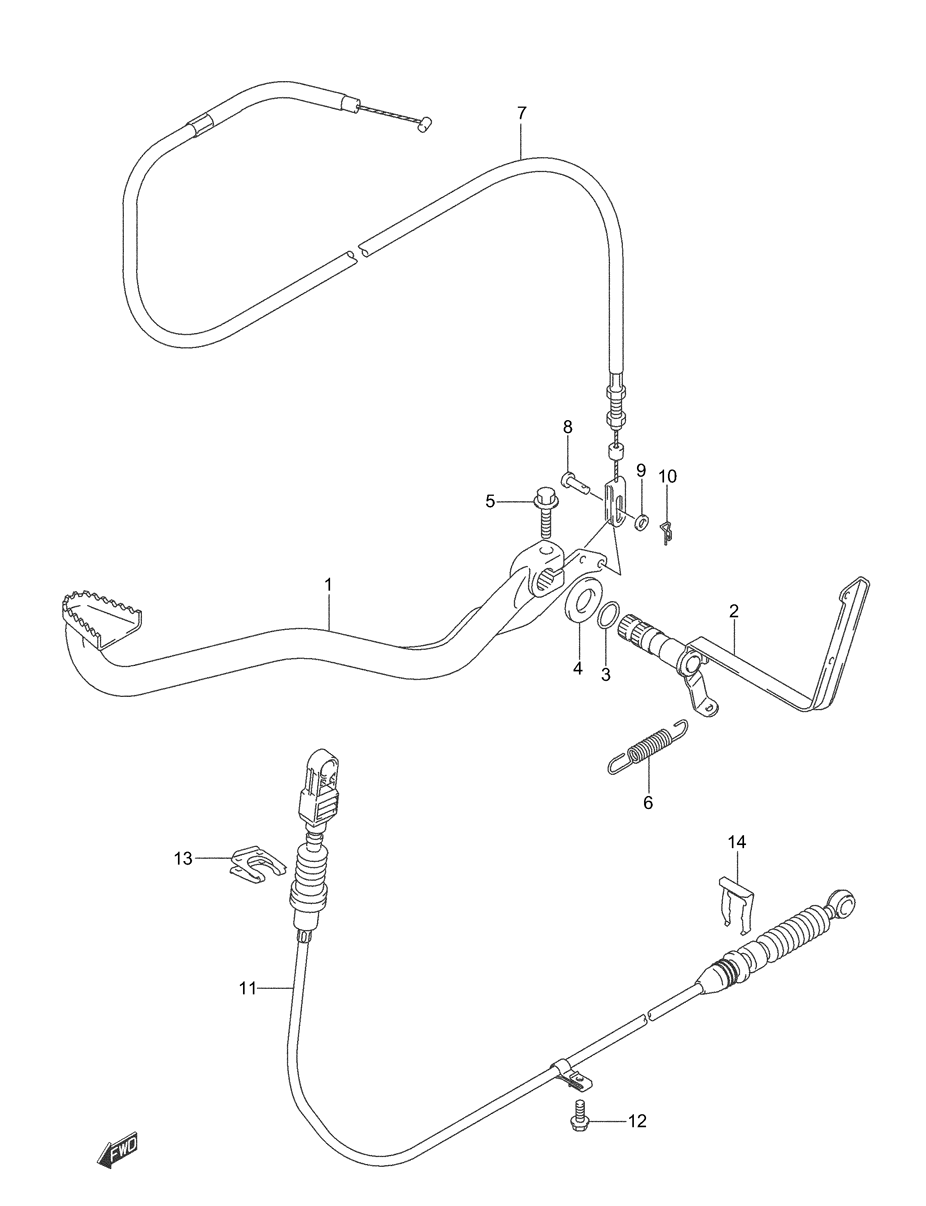

BRAKE - REAR PEDAL для Suzuki LT-A500FC VISION 4X4 AUTOMATIC - 2004 года выпуска
-
№АртикулНазвание
-
143110-03G00 PEDAL, BRAKEPEDAL, BRAKE
-
243120-03G11 ARM, RODARM, ROD
-
309280-17002 O RINGO RING
-
409160-17050 WASHERWASHER
-
509103-08152 BOLT 8X25BOLT 8X25
-
609443-12019 SPRING, RETURNSPRING, RETURN
-
758810-03G10 CABLE, REAR BRAKECABLE, REAR BRAKE
-
809200-06013 PINPIN
-
908322-01063 WASHERWASHER
-
1009385-06012 COTTER PINCOTTER PIN
-
1158670-03G00 CABLE, REAR FINAL LOCKCABLE, REAR FINAL LOCK
-
1201550-06203 BOLTBOLT
-
1328375-78A00 CLIPCLIP
-
1409383-19005 E RINGE RING
