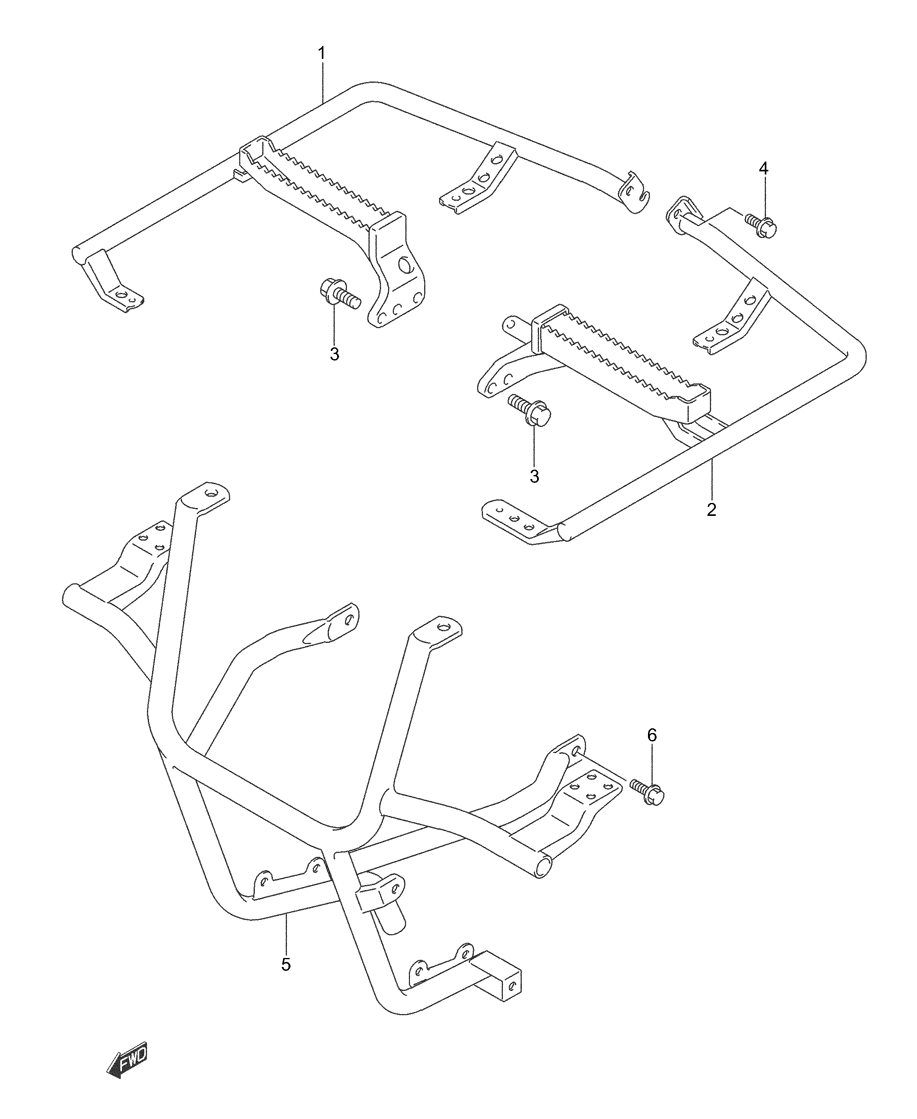

FOOTREST W/ BUMBER для Suzuki LT-A500FC VISION 4X4 AUTOMATIC - 2004 года выпуска
-
№АртикулНазвание
-
143510-03G10 FOOTREST, FRONT RIGHT HANDFOOTREST, FRONT RIGHT HAND
-
243520-03G10 FOOTREST, FRONT LEFT HANDFOOTREST, FRONT LEFT HAND
-
309103-10275 BOLT, FRONTBOLT, FRONT
-
401550-08163 BOLT, REARBOLT, REAR
-
543990-03G01 GRIP, FRONTGRIP, FRONT
-
601550-08203 BOLT, UPPERBOLT, UPPER
