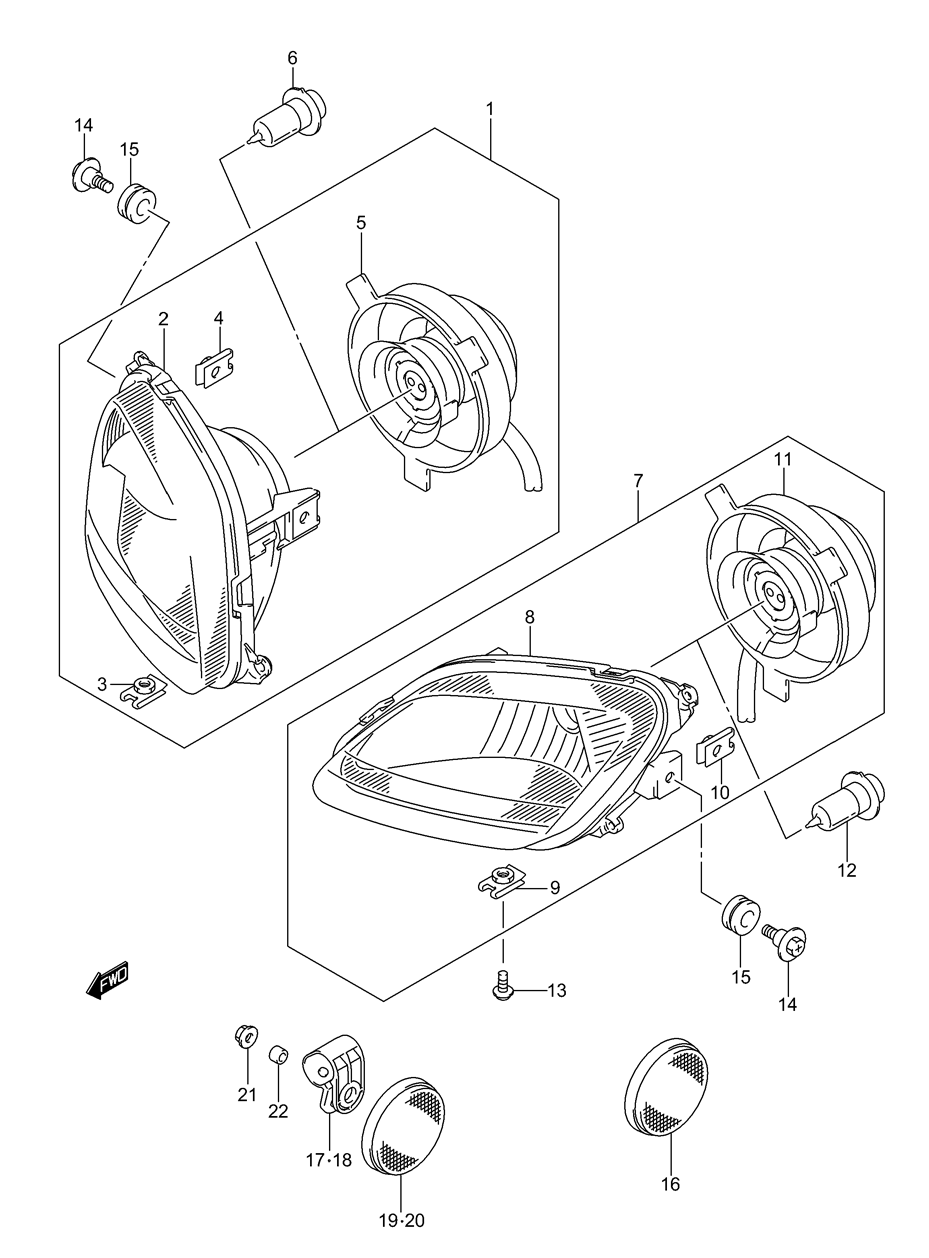

HEADLAMP для Suzuki LT-A400F EIGER 4x4 AUTOMATIC - 2007 года выпуска
-
№АртикулНазвание
-
135100-05G60-999 HEADLAMP ASSY, RIGHTHEADLAMP ASSY, RIGHT
-
235121-03G00 UNIT, RIGHT HANDUNIT, RIGHT HAND
-
335157-05G50 NUT (M5)NUT (M5)
-
435157-05G90 NUT (M6)NUT (M6)
-
535171-05GR0 CORD ASSYCORD ASSY
-
609471-12093 BULB (12V,30/30W)BULB (12V,30/30W)
-
735300-05G60-999 HEADLAMP ASSY, LEFTHEADLAMP ASSY, LEFT
-
835321-03G00 UNIT, LEFT HANDUNIT, LEFT HAND
-
935157-05G50 NUT (M5)NUT (M5)
-
1035157-05G90 NUT (M6)NUT (M6)
-
1135171-05GL0 CORD ASSYCORD ASSY
-
1209471-12093 BULB (12V,30/30W)BULB (12V,30/30W)
-
1309136-05046 SCREW, ADJUST (5X16)SCREW, ADJUST (5X16)
-
1409139-06118 SCREW, HEADLAMPSCREW, HEADLAMP
-
1509320-10501 CUSHIONCUSHION
-
1735656-03G00 BRACKET, REAR SIDE, RIGHT (CANADA)BRACKET, REAR SIDE, RIGHT (CANADA)
-
1835656-03G00 BRACKET, REAR SIDE, LEFT (CANADA)BRACKET, REAR SIDE, LEFT (CANADA)
-
1935950-14A20 REFLEX REFLECTOR, FRONT, RIGHT (CANADA)REFLEX REFLECTOR, FRONT, RIGHT (CANADA)
-
2035950-14A20 REFLEX REFLECTOR, FRONT, LEFT (CANADA)REFLEX REFLECTOR, FRONT, LEFT (CANADA)
-
2109159-05044 NUTNUT
-
2209180-05053 SPACER (5.5X9.5X6.5)SPACER (5.5X9.5X6.5)
