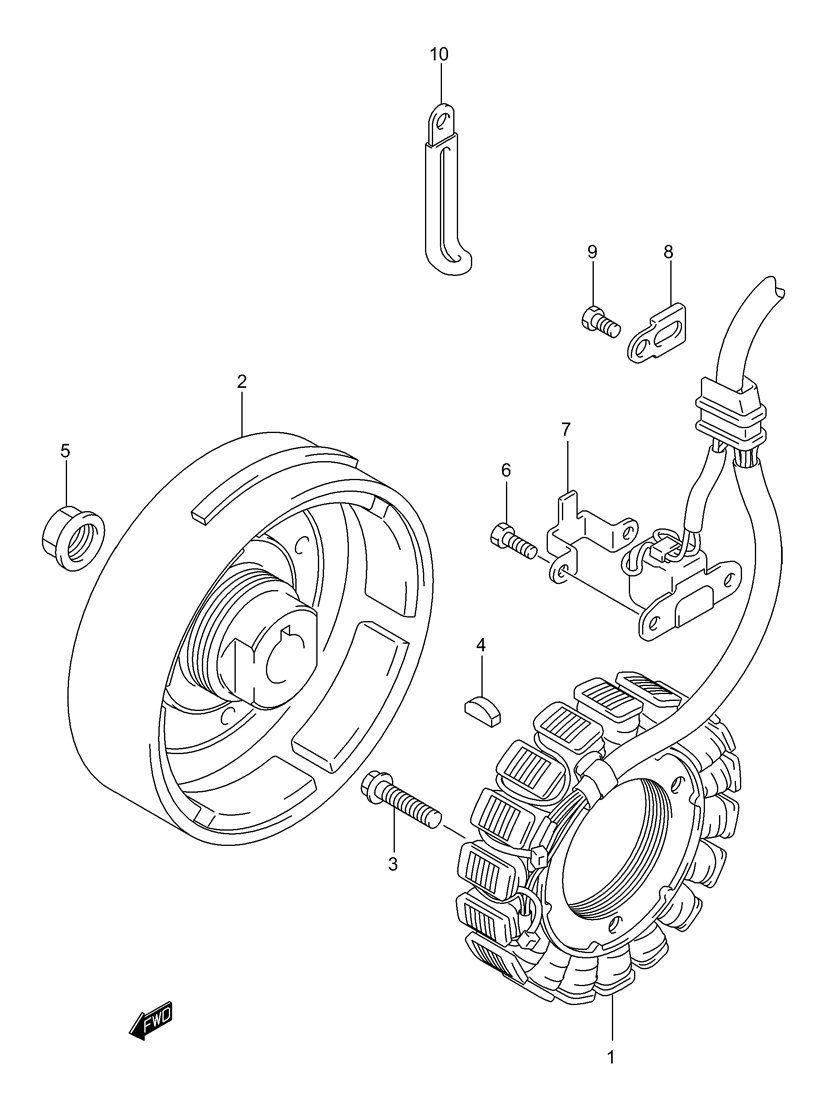

MAGNETO для Suzuki LT-A400F EIGER 4x4 AUTOMATIC - 2007 года выпуска
-
№АртикулНазвание
-
132101-38F00 STATOR ASSYSTATOR ASSY
-
232102-38F01 ROTORROTOR
-
301547-06253 BOLT, MAGNETOBOLT, MAGNETO
-
408341-31059 KEY, MAGNETOKEY, MAGNETO
-
531792-18A00 NUT, MAGNETONUT, MAGNETO
-
609100-05019 BOLT, SENSOR (5X10)BOLT, SENSOR (5X10)
-
731497-45000 CLAMP, MAGNETO NO.1CLAMP, MAGNETO NO.1
-
832371-32E00 CLAMP, MAGNETO NO.2CLAMP, MAGNETO NO.2
-
909100-05019 BOLT, CLAMP NO.2 (5X10)BOLT, CLAMP NO.2 (5X10)
-
1009404-06433 CLAMP, MAGNETO NO.3 (L:80)CLAMP, MAGNETO NO.3 (L:80)
