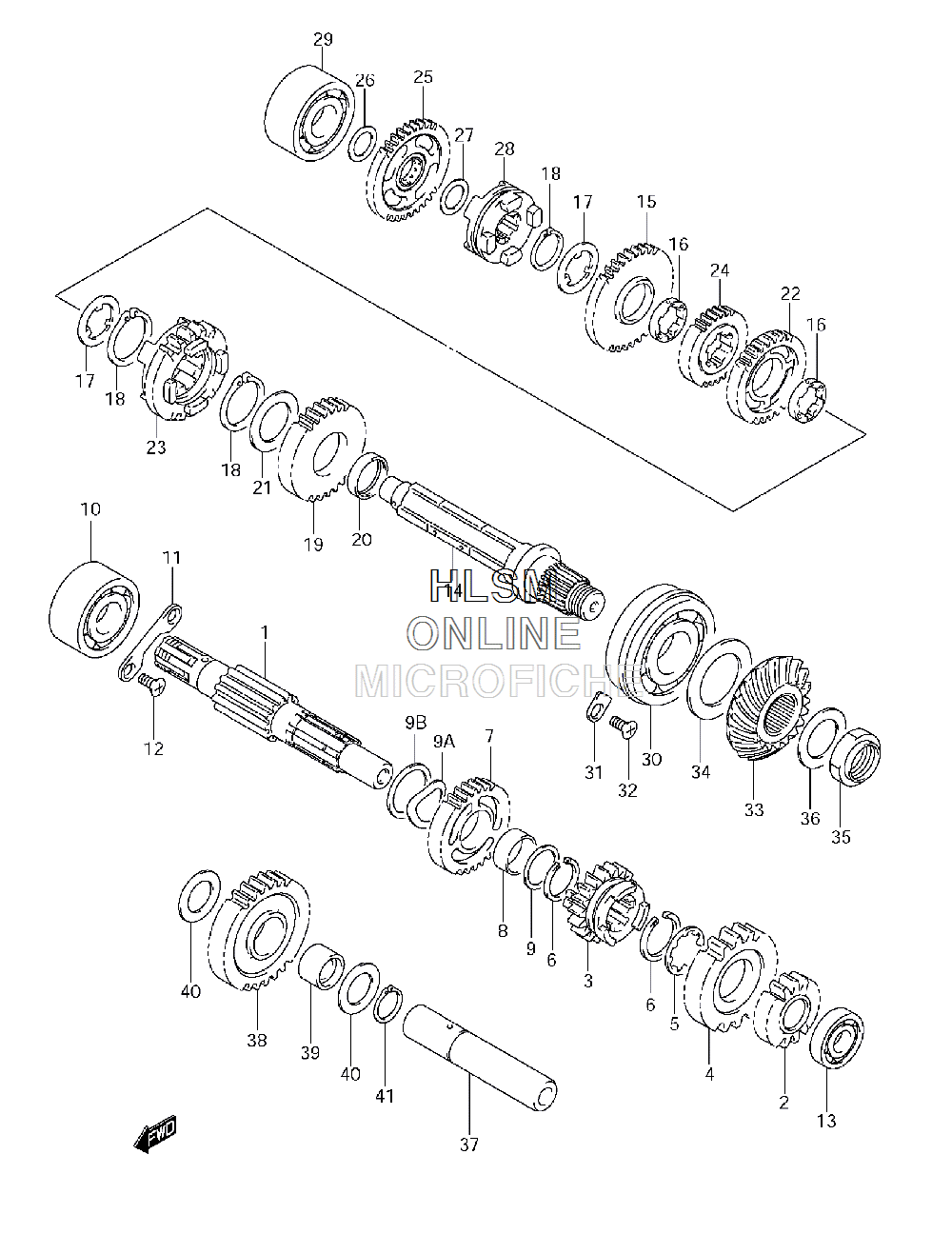

TRANSMISSION для Suzuki LT-F250 OZARK - 2007 года выпуска
-
№АртикулНазвание
-
124121-05G00 COUNTERSHAFT (NT:12)COUNTERSHAFT (NT:12)
-
224221-18A00 GEAR, 2ND DRIVE (NT:15)GEAR, 2ND DRIVE (NT:15)
-
324231-05G00 GEAR, 3RD DRIVE (NT:18)GEAR, 3RD DRIVE (NT:18)
-
424241-05G00 GEAR, 4TH DRIVE (NT:21)GEAR, 4TH DRIVE (NT:21)
-
509167-22011 WASHER, 4TH DRIVEWASHER, 4TH DRIVE
-
609380-22006 CIRCLIP, 4TH/5THCIRCLIP, 4TH/5TH
-
724251-05G00 GEAR, 5TH DRIVE (NT:23)GEAR, 5TH DRIVE (NT:23)
-
824252-05G00 BUSH, 5TH DRIVEBUSH, 5TH DRIVE
-
909181-22139 WASHER (22X28X1.0)WASHER (22X28X1.0)
-
9A09164-26002 WASHERWASHER
-
9B08211-22425 WASHER, 5TH DR, RIGHT HANDWASHER, 5TH DR, RIGHT HAND
-
1009262-22018 BEARING, RIGHT HAND (22X50X14)BEARING, RIGHT HAND (22X50X14)
-
1124741-05G00 RETAINERRETAINER
-
1209126-06011 SCREW (6X12)SCREW (6X12)
-
1309263-17026 BEARING, LEFT HAND (17X30X14)BEARING, LEFT HAND (17X30X14)
-
1424131-05G00 DRIVE SHAFTDRIVE SHAFT
-
1524311-05G00 GEAR, 1ST DRIVEN (NT:37)GEAR, 1ST DRIVEN (NT:37)
-
1624332-24510 BUSH, 1ST/3RDBUSH, 1ST/3RD
-
1709167-25016 LOCK WASHER, 1ST/3RDLOCK WASHER, 1ST/3RD
-
1809380-25003 CIRCLIP, 1ST/2ND/3RDCIRCLIP, 1ST/2ND/3RD
-
1924321-05G00 GEAR, 2ND DRIVEN (NT:29)GEAR, 2ND DRIVEN (NT:29)
-
2009300-25020 BUSH, 2ND DRIVENBUSH, 2ND DRIVEN
-
2108211-25351 WASHER, 2ND DRIVENWASHER, 2ND DRIVEN
-
2224331-19B01 GEAR, 3RD DRIVEN (NT:25)GEAR, 3RD DRIVEN (NT:25)
-
2324341-05G00 GEAR, 4TH DRIVEN (NT:23)GEAR, 4TH DRIVEN (NT:23)
-
2424351-05G00 GEAR, 5TH DRIVEN (NT:21)GEAR, 5TH DRIVEN (NT:21)
-
2524570-05G00 GEAR, REVERSE DRIVEN (NT:34)GEAR, REVERSE DRIVEN (NT:34)
-
2609181-17195 WASHER, REVERSE RIGHT HANDWASHER, REVERSE RIGHT HAND
-
2709181-20167 WASHER, REVERSE LEFT HANDWASHER, REVERSE LEFT HAND
-
2824581-05G00 DOG, REVERSEDOG, REVERSE
-
2909262-17026 BEARING, RIGHT HAND (17X35X10)BEARING, RIGHT HAND (17X35X10)
-
3009262-25073 BEARING, LEFT HAND (25X62X17)BEARING, LEFT HAND (25X62X17)
-
3124741-21A00 RETAINER, DRIVE SHAFTRETAINER, DRIVE SHAFT
-
3209125-06110 SCREW (6X12)SCREW (6X12)
-
3324911-05G00 GEAR, SEC DRIVE BEVEL (NT:17)GEAR, SEC DRIVE BEVEL (NT:17)
-
3424935-03811 SHIM SET, SEC DRIVE BEVEL GRSHIM SET, SEC DRIVE BEVEL GR
-
3509140-20012 NUTNUT
-
3609181-20223 WASHER (20X32X1.0)WASHER (20X32X1.0)
-
3724551-05G00 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
-
3824561-05G02 GEAR, REVERSE IDLE (NT:29)GEAR, REVERSE IDLE (NT:29)
-
3924562-05G00 BUSHBUSH
-
4009181-17195 WASHER (17X28X1.0)WASHER (17X28X1.0)
-
4108331-3117A CIRCLIPCIRCLIP
