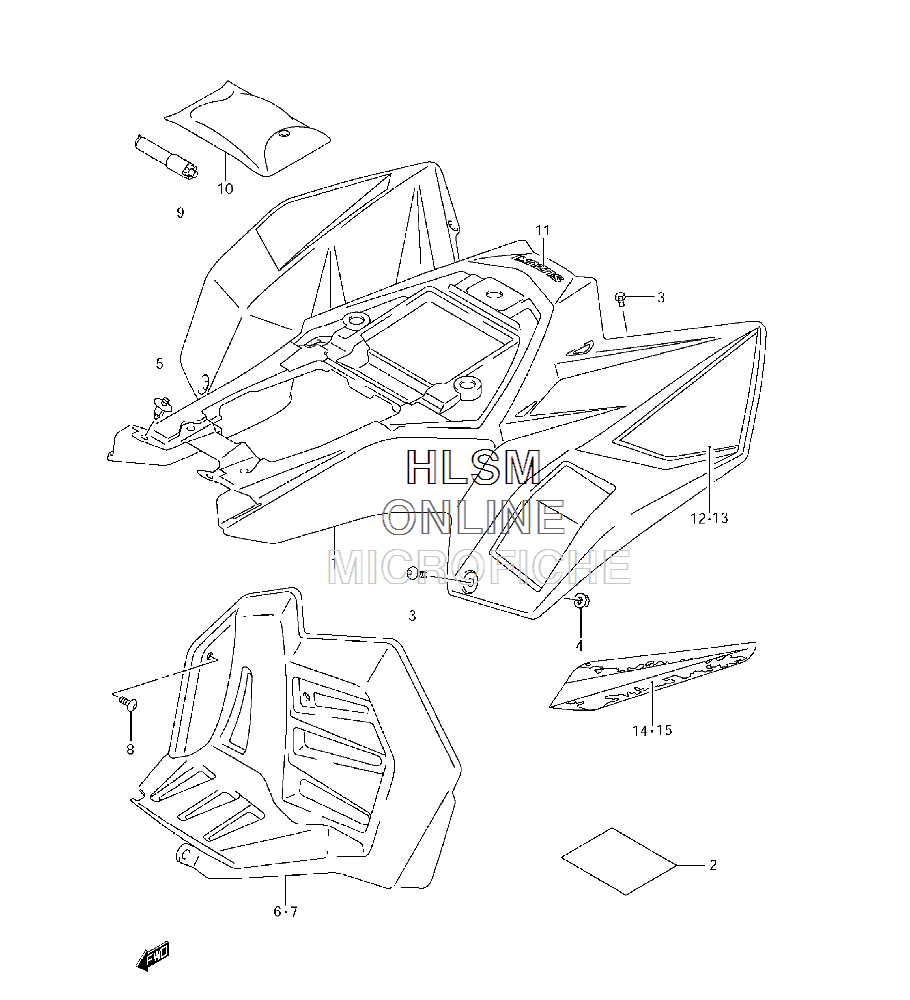

FENDER - REAR для Suzuki LT-R450 QuadRacer R450 - 2008 года выпуска
-
№АртикулНазвание
-
163111-45G00-YU1 FENDER, REAR (YELLOW)FENDER, REAR (YELLOW)
-
163111-45G00-30H FENDER, REAR (WHITE)FENDER, REAR (WHITE)
-
244545-45G00 CUSHIONCUSHION
-
309139-06158 SCREWSCREW
-
408319-31068 NUTNUT
-
509409-07333 CLIPCLIP
-
663331-45G00-291 MUDGUARD, RIGHT HAND (BLACK)MUDGUARD, RIGHT HAND (BLACK)
-
763341-45G00-291 MUDGUARD, LEFT HAND (BLACK)MUDGUARD, LEFT HAND (BLACK)
-
809139-06158 BOLTBOLT
-
996200-05G10 GUAGE, AIRGUAGE, AIR
-
1009800-21055 TOOL ASSYTOOL ASSY
-
1168171-44B00-GY8 EMBLEM (FOR YU1)EMBLEM (FOR YU1)
-
1168171-44B00-8YM EMBLEM (FOR 30H)EMBLEM (FOR 30H)
-
1268175-45G20-ENF TAPE, RIGHT HAND (FOR YU1)TAPE, RIGHT HAND (FOR YU1)
-
1268175-45G20-ENE TAPE, RIGHT HAND (FOR 30H)TAPE, RIGHT HAND (FOR 30H)
-
1368176-45G20-ENF TAPE, LEFT HAND (FOR YU1)TAPE, LEFT HAND (FOR YU1)
-
1368176-45G20-ENE TAPE, LEFT HAND (FOR 30H)TAPE, LEFT HAND (FOR 30H)
