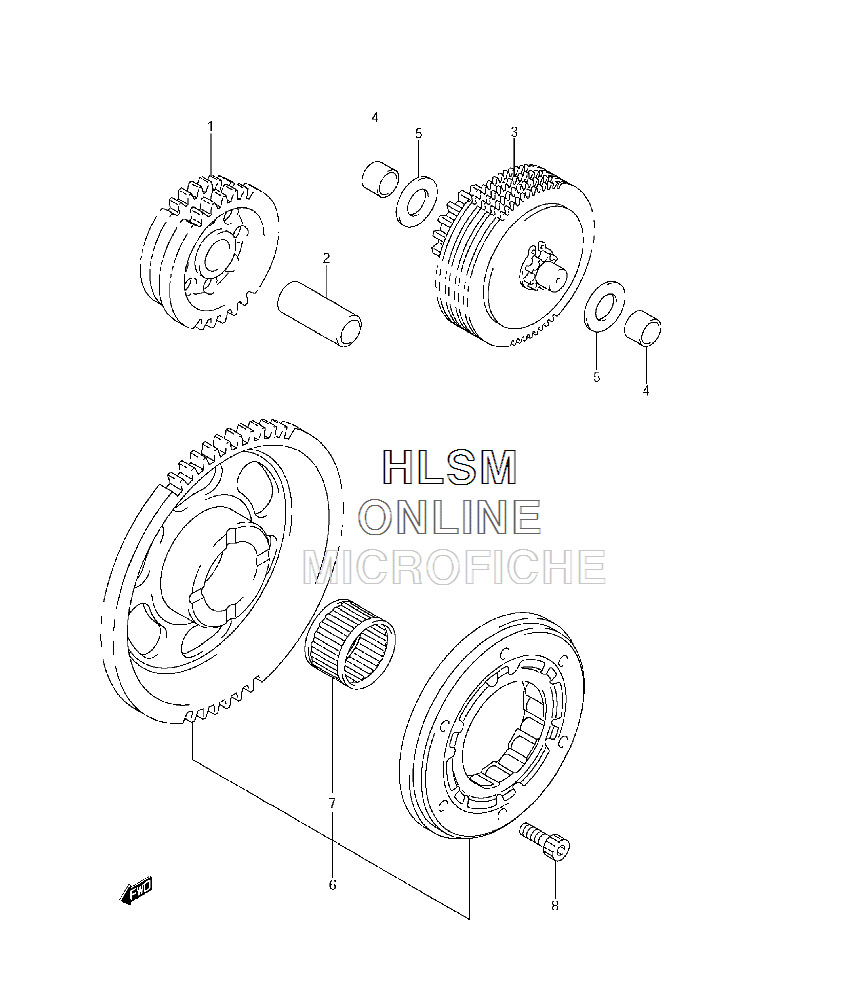

STARTER CLUTCH для Suzuki LT-R450 QuadRacer R450 - 2008 года выпуска
-
№АртикулНазвание
-
112611-45G00 GEAR, STARTER IDLE NO.1GEAR, STARTER IDLE NO.1
-
209206-12007 PINPIN
-
312600-45G00 LIMITER ASSY, STARTER IDLE GEARLIMITER ASSY, STARTER IDLE GEAR
-
412618-31G00 BUSHBUSH
-
508211-10221 WASHERWASHER
-
612600-45850 CLUTCH SET, STARTER (INCL. 7)CLUTCH SET, STARTER (INCL. 7)
-
709263-24012 BEARING (24X33X17)BEARING (24X33X17)
-
809106-06073 BOLTBOLT
