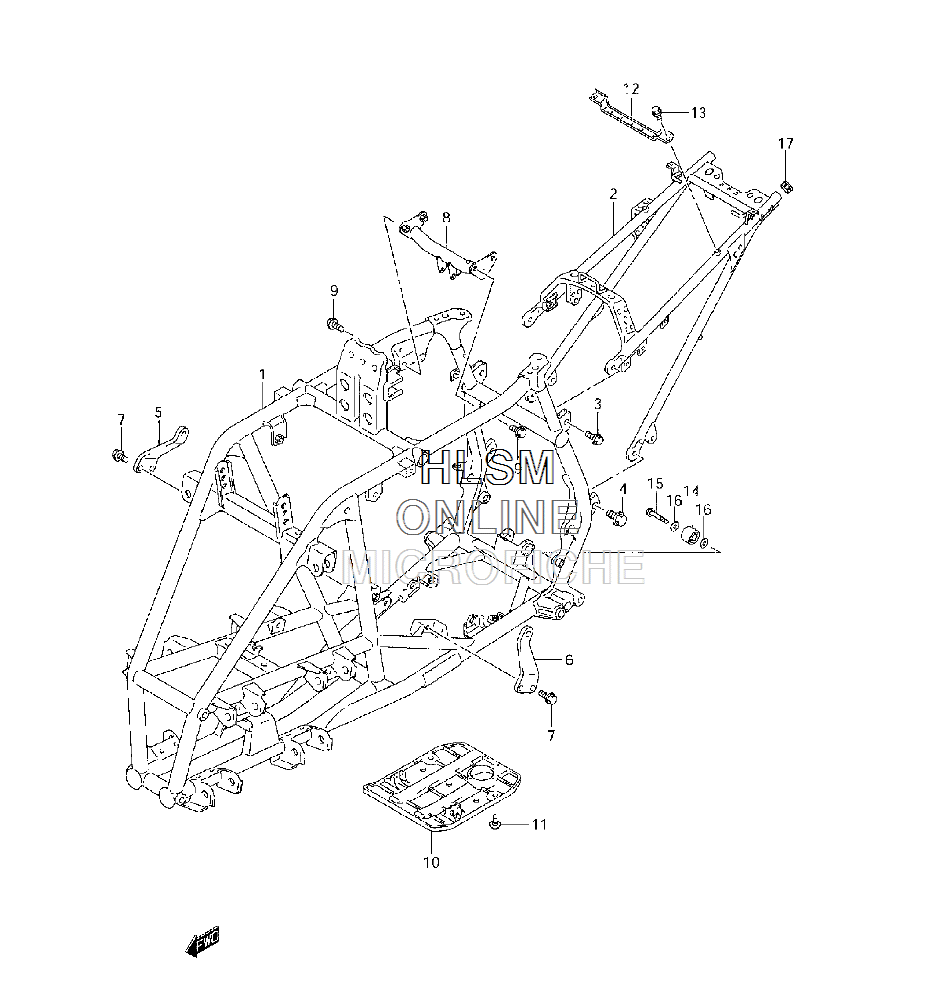

FRAME для Suzuki LT-Z400 QuadSport Z400 - 2008 года выпуска
-
№АртикулНазвание
-
141100-07G30-YBA FRAME (BLUE)FRAME (BLUE)
-
241200-07G30-YD8 RAIL, SEAT (SILVER)RAIL, SEAT (SILVER)
-
241200-07G40-YD8 RAIL, SEAT (SILVER) (CANADA ONLY)RAIL, SEAT (SILVER) (CANADA ONLY)
-
309103-10378 BOLT, UPPERBOLT, UPPER
-
409103-10310 BOLT, LOWERBOLT, LOWER
-
541911-07G00 PLATE, MOUNT FRONT RIGHT HANDPLATE, MOUNT FRONT RIGHT HAND
-
641912-07G00 PLATE, MOUNT FRONT LEFT HANDPLATE, MOUNT FRONT LEFT HAND
-
701550-0820B BOLTBOLT
-
841990-07G30 PLATE, MOUNT UPPERPLATE, MOUNT UPPER
-
901550-0820B BOLTBOLT
-
1042511-07G00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
1109111-06085 BOLTBOLT
-
1241560-07G30 PLATE, BATTERYPLATE, BATTERY
-
1309103-06240 BOLTBOLT
-
1443910-37F00 ROLLER, CHAIN CONTROLROLLER, CHAIN CONTROL
-
1509103-08083 BOLTBOLT
-
1609181-08111 WASHERWASHER
-
1743978-24500 CAP, SEAT RAILCAP, SEAT RAIL
