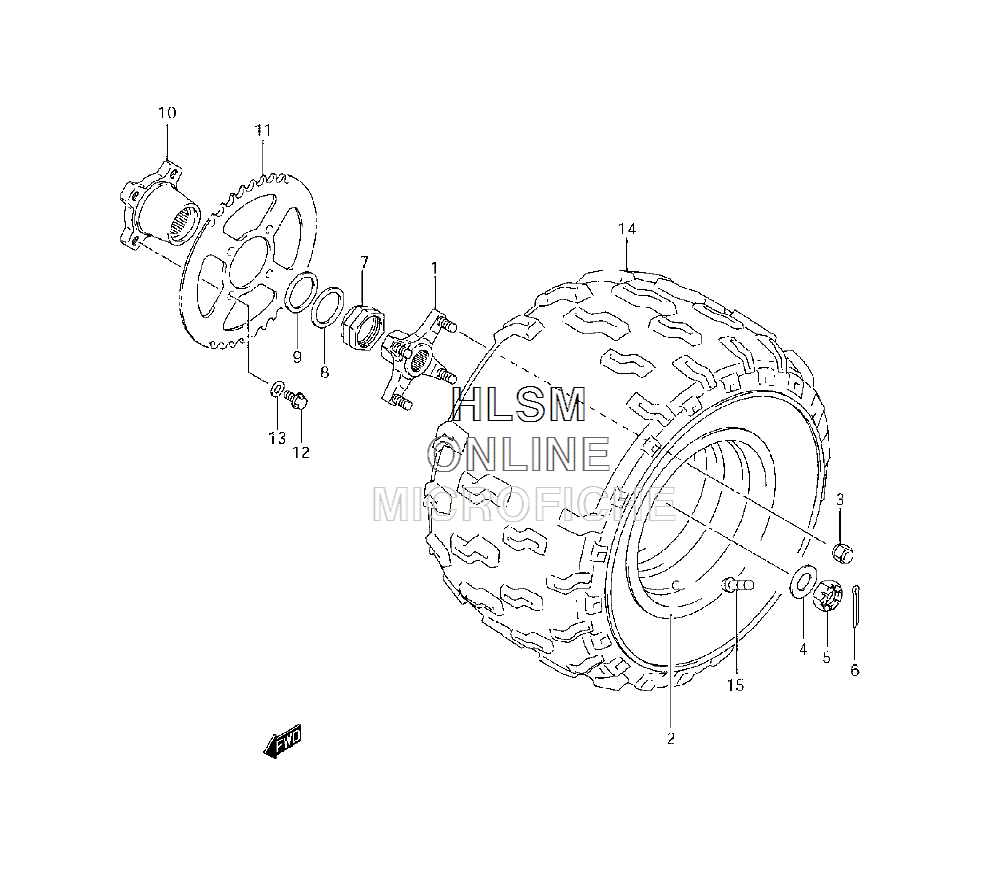

WHEEL - LEFT REAR для Suzuki LT-Z400 QuadSport Z400 - 2008 года выпуска
-
№АртикулНазвание
-
164110-07G10-019 HUB, REAR WHEEL (BLACK)HUB, REAR WHEEL (BLACK)
-
265310-07G10 RIM, REAR WHEEL (9X8.0AT)RIM, REAR WHEEL (9X8.0AT)
-
309159-10114 NUTNUT
-
409164-20002 WASHERWASHER
-
509141-20002 NUT, HUBNUT, HUB
-
604111-4035A COTTER PINCOTTER PIN
-
764870-19A10 NUT, REAR AXLENUT, REAR AXLE
-
864723-07G00 WASHER, REAR AXLE NO.1WASHER, REAR AXLE NO.1
-
964724-07G00 WASHER, REAR AXLE NO.2WASHER, REAR AXLE NO.2
-
1064611-07G11 FLANGE, REAR SPROCKET MOUNTINGFLANGE, REAR SPROCKET MOUNTING
-
1164511-07G10 SPROCKET, REARSPROCKET, REAR
-
1209103-10354 BOLTBOLT
-
1309164-10011 WASHERWASHER
-
1465110-07G00 TIRE, REARTIRE, REAR
-
1543130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
