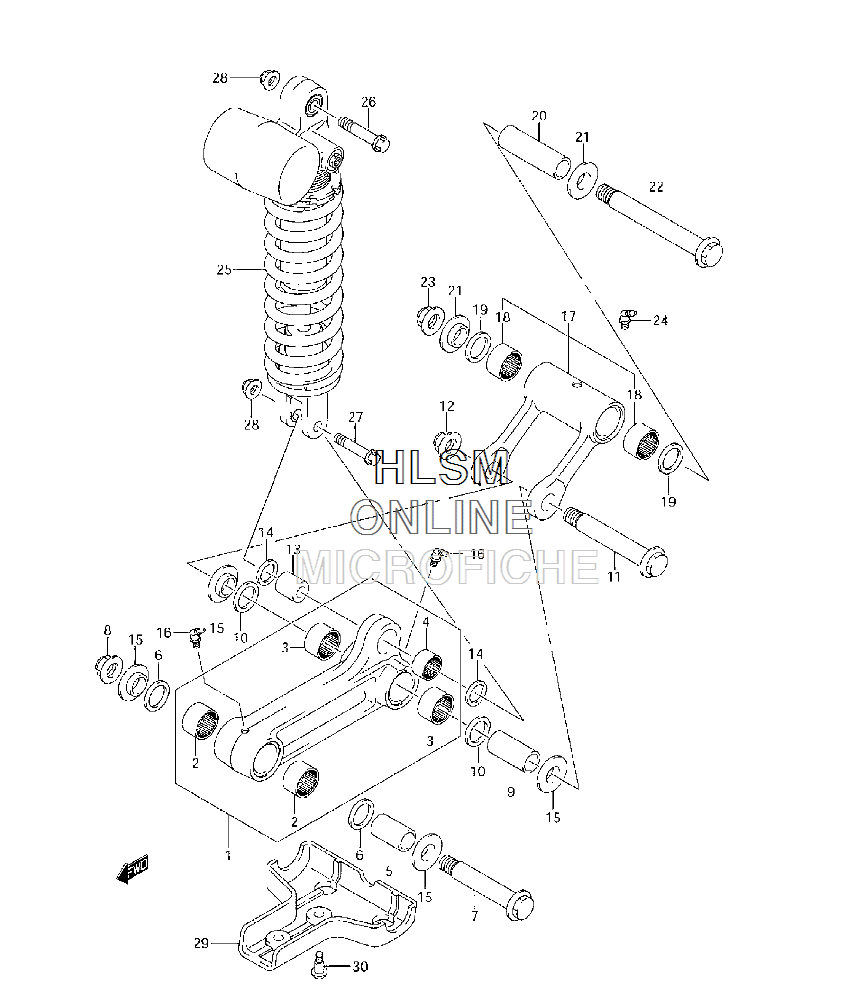

SUSPENSION - REAR SHOCK W/ CUSHION LEVER для Suzuki LT-Z400Z QuadSport Z400 Special Edition - 2008 года выпуска
-
№АртикулНазвание
-
162600-07810 LEVER SET, CUSHION (INCL. 2-4)LEVER SET, CUSHION (INCL. 2-4)
-
209263-20086 BEARING, FRONT (20X27X15)BEARING, FRONT (20X27X15)
-
309263-20086 BEARING, CENTER (20X27X15)BEARING, CENTER (20X27X15)
-
409263-20083 BEARING, REAR (20X26X12)BEARING, REAR (20X26X12)
-
562317-37F00 SPACER, FRONTSPACER, FRONT
-
662624-14500 SEAL, FRONT DUSTSEAL, FRONT DUST
-
762658-07G00 BOLT, FRONTBOLT, FRONT
-
809159-12056 NUTNUT
-
962646-37F00 SPACER, CENTERSPACER, CENTER
-
1062624-14500 SEAL, CENTER DUSTSEAL, CENTER DUST
-
1162621-37F00 BOLT, CENTERBOLT, CENTER
-
1209159-12056 NUTNUT
-
1362684-36E00 SPACER, REARSPACER, REAR
-
1409284-20001 SEAL, REARSEAL, REAR
-
1562647-37F00 SPACER, CUSHION LEVER SIDESPACER, CUSHION LEVER SIDE
-
1608351-3100A NIPPLE, GREASENIPPLE, GREASE
-
1762600-07830 ROD SET, REAR CUSHION (INCL. 18)ROD SET, REAR CUSHION (INCL. 18)
-
1809263-20086 BEARING, ROD (20X27X15)BEARING, ROD (20X27X15)
-
1962624-14500 SEAL, DUSTSEAL, DUST
-
2062646-07G00 SPACER, RODSPACER, ROD
-
2162647-37F00 SPACER, ROD SIDESPACER, ROD SIDE
-
2262621-07G00 BOLT, RODBOLT, ROD
-
2309159-12056 NUTNUT
-
2408351-3100A NIPPLE, GREASENIPPLE, GREASE
-
2562100-07G20-YKS ABSORBER ASSY, REAR SHOCK (RED) (FOR YU1)ABSORBER ASSY, REAR SHOCK (RED) (FOR YU1)
-
2562100-07G20-28W ABSORBER ASSY, REAR SHOCK (WHITE) (FOR 30H)ABSORBER ASSY, REAR SHOCK (WHITE) (FOR 30H)
-
2562100-07G30-YKS ABSORBER ASSY, REAR SHOCK (RED) (FOR YU1) (CANADA ONLY)ABSORBER ASSY, REAR SHOCK (RED) (FOR YU1) (CANADA ONLY)
-
2562100-07G30-28W ABSORBER ASSY, REAR SHOCK (WHITE) (FOR 30H) (CANADA ONLY)ABSORBER ASSY, REAR SHOCK (WHITE) (FOR 30H) (CANADA ONLY)
-
2662311-14501 BOLT, UPPERBOLT, UPPER
-
2709103-10149 BOLT, LOWERBOLT, LOWER
-
2809159-10115 NUT, UPPERNUT, UPPER
-
2962681-07G00 GUARD, REAR CUSHION LEVERGUARD, REAR CUSHION LEVER
-
3009139-06120 SCREWSCREW
