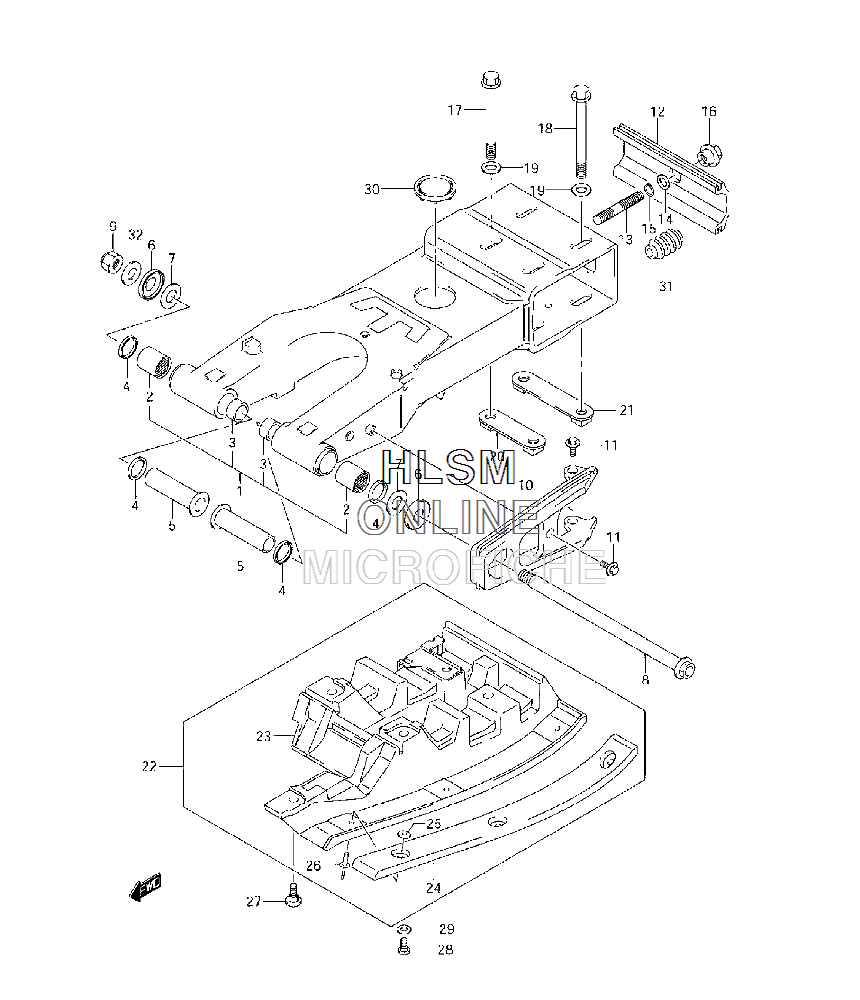

SUSPENSION - REAR SWING ARM для Suzuki LT-Z400Z QuadSport Z400 Special Edition - 2008 года выпуска
-
№АртикулНазвание
-
161101-07830 SWINGING ARM SET, REAR (INCL. 2-3)SWINGING ARM SET, REAR (INCL. 2-3)
-
209263-22017 BEARING, PIVOTBEARING, PIVOT
-
361261-07G00 BUSH, RR SWINGING ARM PIVOTBUSH, RR SWINGING ARM PIVOT
-
409285-22001 SEAL, PIVOT BEARINGSEAL, PIVOT BEARING
-
561252-07G00 SPACERSPACER
-
661262-28C10 COVER, PIVOT DUSTCOVER, PIVOT DUST
-
708211-17341 WASHER, THRUSTWASHER, THRUST
-
861211-07G10 SHAFT, PIVOTSHAFT, PIVOT
-
909159-16007 NUTNUT
-
1061273-07G00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1109116-06192 BOLTBOLT
-
1261421-07G00 PLATE, CHAIN ADJUSTERPLATE, CHAIN ADJUSTER
-
1309108-12014 BOLT, CHAIN ADJUSTERBOLT, CHAIN ADJUSTER
-
1409160-20081 WASHER, CHAIN ADJUSTER NUTWASHER, CHAIN ADJUSTER NUT
-
1508331-3120A CIRCLIPCIRCLIP
-
1661422-07G00 NUT, CHAIN ADJUSTERNUT, CHAIN ADJUSTER
-
1709103-12074 BOLT, FRBOLT, FR
-
1809103-12075 BOLT, RRBOLT, RR
-
1909160-12103 WASHERWASHER
-
2061470-07G10 WASHER, AXLE HOUSING SET FRWASHER, AXLE HOUSING SET FR
-
2161480-07G10 WASHER, AXLE HOUSING SET RRWASHER, AXLE HOUSING SET RR
-
2261305-07G10 GUARD SET, SWINGING ARM UNDER (INCL. 23-26)GUARD SET, SWINGING ARM UNDER (INCL. 23-26)
-
2361391-07G10 GUARD, SWINGING ARM UNDERGUARD, SWINGING ARM UNDER
-
2461396-07G20 BUFFER, SWGARM GUARDBUFFER, SWGARM GUARD
-
2509160-04027 WASHER, BUFFERWASHER, BUFFER
-
2609229-04048 RIVET, BUFFERRIVET, BUFFER
-
2761393-09F10 BOLT, GUARDBOLT, GUARD
-
2809106-08076 BOLT, GUARD CENTERBOLT, GUARD CENTER
-
2908322-0110B WASHER, GUARD CENTERWASHER, GUARD CENTER
-
3061222-05A01 CAP, RR SWINGING ARMCAP, RR SWINGING ARM
-
3161425-07G00 BOOT, CHAIN ADJUSTER BOLTBOOT, CHAIN ADJUSTER BOLT
-
3209160-16031 WASHER, PIVOTWASHER, PIVOT
