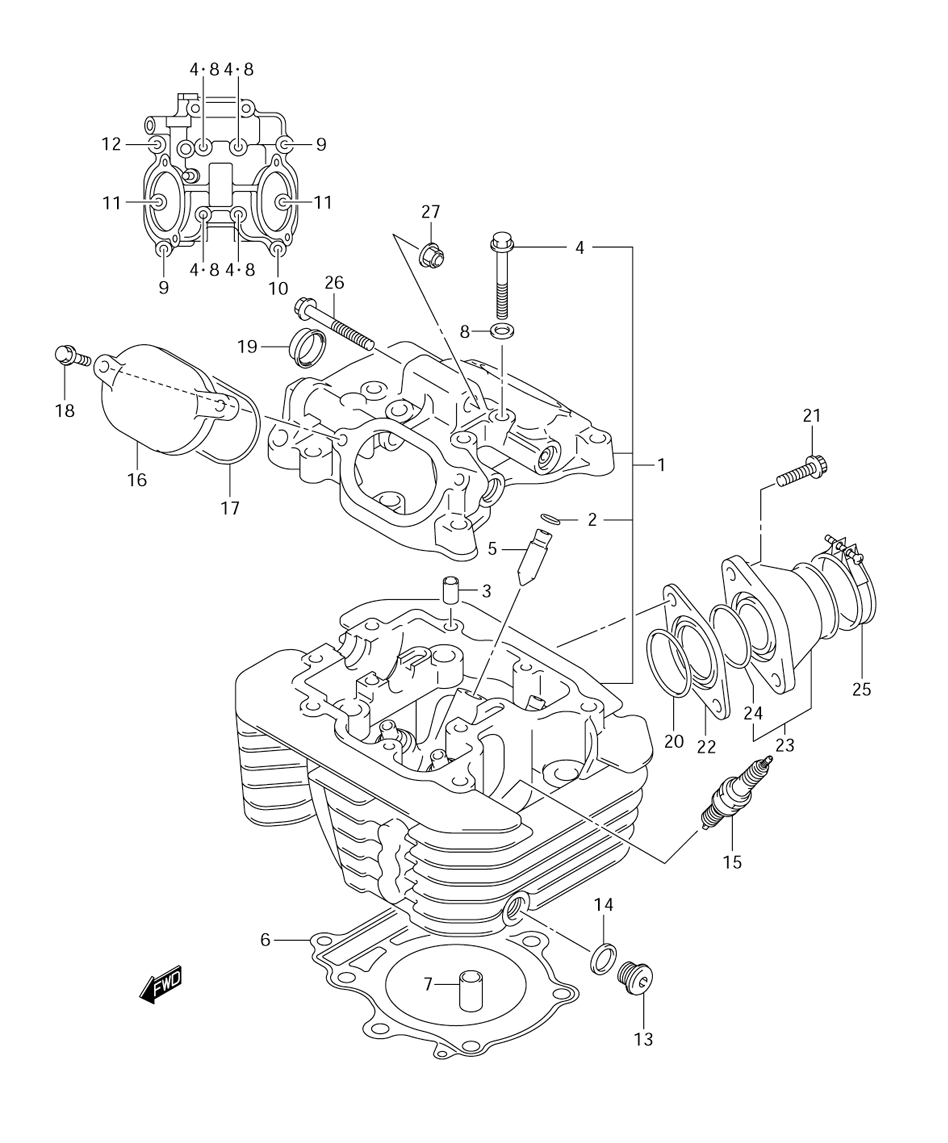

CYLINDER HEAD для Suzuki LT-A400 KINGQUAD - 2009 года выпуска
-
№АртикулНазвание
-
111100-27H00 HEAD ASSEMBLY, CYLINDERHEAD ASSEMBLY, CYLINDER
-
209381-10004 ...RING, VALVE GUIDE...RING, VALVE GUIDE
-
309206-08001 ...PIN...PIN
-
409103-06102 ...BOLT (6X55)...BOLT (6X55)
-
511115-14D71 GUIDE, VALVE (OVER SIZE: 0.3) (OPTIONAL)GUIDE, VALVE (OVER SIZE: 0.3) (OPTIONAL)
-
611141-38F00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
709206-13004 PINPIN
-
809168-06023 GASKETGASKET
-
909103-06108 BOLT, HEAD COVER (6X35)BOLT, HEAD COVER (6X35)
-
1009103-06504 BOLT, HEAD COVER (6X39)BOLT, HEAD COVER (6X39)
-
1101550-0625B BOLT, HEAD COVERBOLT, HEAD COVER
-
1201550-0630B BOLT, HEAD COVERBOLT, HEAD COVER
-
1309248-12004 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
1409168-12002 GASKET, OIL GALLERY PLUGGASKET, OIL GALLERY PLUG
-
1509482-00516 SPARK PLUG (NGK,CR7E)SPARK PLUG (NGK,CR7E)
-
1509482-00515 SPARK PLUG (DENSO,U22ESR-N)SPARK PLUG (DENSO,U22ESR-N)
-
1509482-00528 SPARK PLUG (NGK,CR6E) (OPTIONAL)SPARK PLUG (NGK,CR6E) (OPTIONAL)
-
1509482-00529 SPARK PLUG (DENSO U20ESR-N) (OPTIONAL)SPARK PLUG (DENSO U20ESR-N) (OPTIONAL)
-
1509482-00456 SPARK PLUG (NGK,CR8E) (OPTIONAL)SPARK PLUG (NGK,CR8E) (OPTIONAL)
-
1509482-00457 SPARK PLUG (DENSO U24ESR-N) (OPTIONAL)SPARK PLUG (DENSO U24ESR-N) (OPTIONAL)
-
1611175-47D00 CAP, INSPECTIONCAP, INSPECTION
-
1711177-14D01 O RING, INSPECTION CAPO RING, INSPECTION CAP
-
1801550-0620B BOLT, INSPECTION CAPBOLT, INSPECTION CAP
-
1909241-25007 PLUG, HEADPLUG, HEAD
-
2009280-40010 O RING (DIAMETER: 2.4,INSIDE DIAMETER: 39.7)O RING (DIAMETER: 2.4,INSIDE DIAMETER: 39.7)
-
2107120-0625B SCREWSCREW
-
2213117-38F00 INSULATOR, INTAKE PIPEINSULATOR, INTAKE PIPE
-
2313101-38F00 PIPE ASSEMBLY, INTAKEPIPE ASSEMBLY, INTAKE
-
2409280-40010 ...O RING (DIAMETER: 2.4,INSIDE DIAMETER: 39.7)...O RING (DIAMETER: 2.4,INSIDE DIAMETER: 39.7)
-
2509402-48208 CLAMPCLAMP
-
2609103-08217 BOLT (8X60)BOLT (8X60)
-
2708319-3108A NUTNUT
