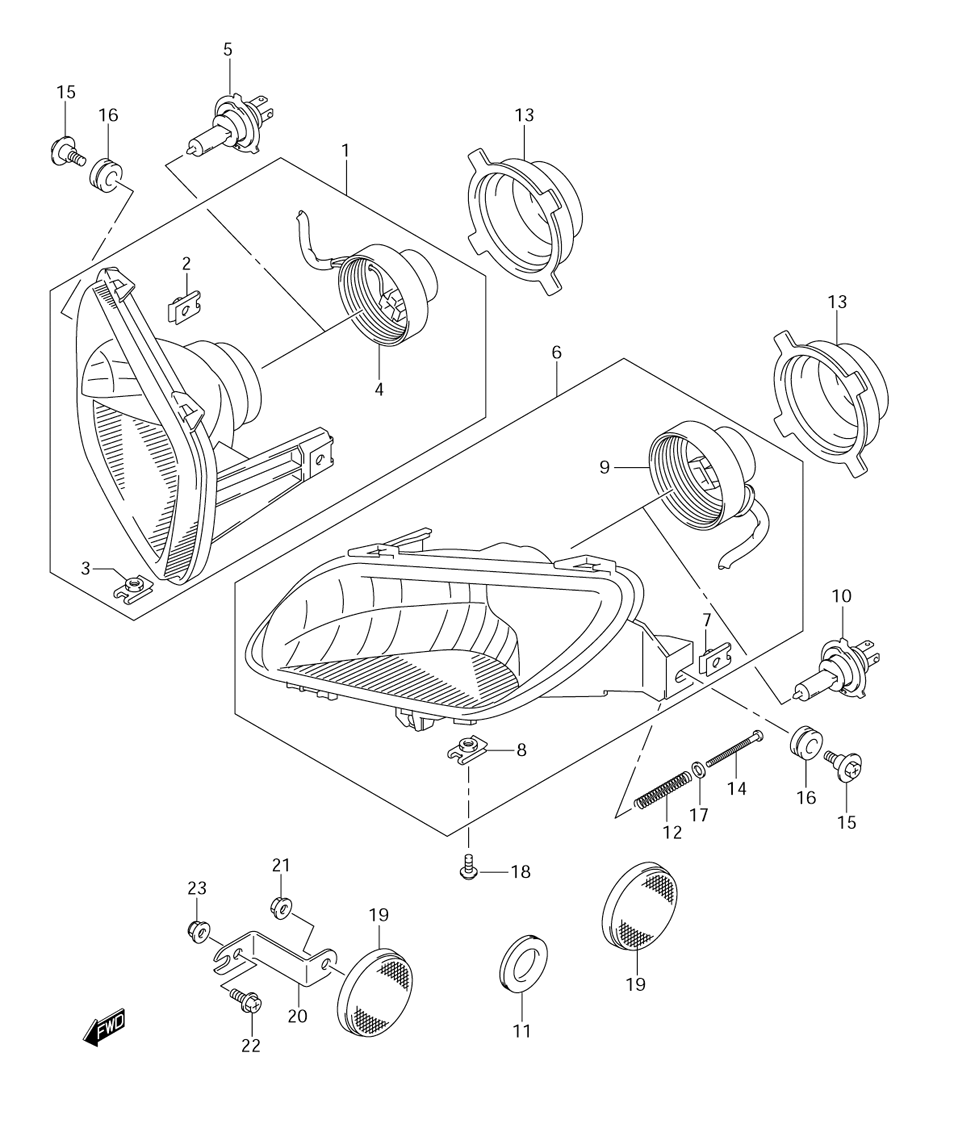

HEADLAMP для Suzuki LT-A400 KINGQUAD - 2009 года выпуска

№

Артикул

Название
1

35100-31G90-999 HEADLAMP ASSEMBLY, RIGHT

HEADLAMP ASSEMBLY, RIGHT

1 332 500 ₽
2

35157-31G90 ...NUT (M6)

...NUT (M6)

920 ₽
3

35157-05G50 ...NUT (M5)

...NUT (M5)

860 ₽
4

35171-31GM0 ...CORD ASSEMBLY, RIGHT

...CORD ASSEMBLY, RIGHT

5 340 ₽
5

09471-12101 BULB (12V35/35W,HS1)

BULB (12V35/35W,HS1)

11 760 ₽
6

35300-31G90-999 HEADLAMP ASSEMBLY, LEFT

HEADLAMP ASSEMBLY, LEFT

1 332 500 ₽
7

35157-31G90 ...NUT (M6)

...NUT (M6)

920 ₽
8

35157-05G50 ...NUT (M5)

...NUT (M5)

860 ₽
9

35171-31GH0 ...CORD ASSEMBLY, LEFT

...CORD ASSEMBLY, LEFT

5 800 ₽
10

09471-12101 BULB (12V35/35W,HS1)

BULB (12V35/35W,HS1)

11 760 ₽
11

09308-07011 GROMMET

GROMMET

440 ₽
12

35154-31300 SPRING, HEADLAMP ADJUST

SPRING, HEADLAMP ADJUST

650 ₽
13

35174-31G00 COVER, HEADLAMP HOUSING

COVER, HEADLAMP HOUSING

1 900 ₽
14

09125-04031 SCREW, HEADLAMP ADJUST

SCREW, HEADLAMP ADJUST

380 ₽
15

09139-06118 SCREW, HEADLAMP

SCREW, HEADLAMP

590 ₽
16

09320-10501 CUSHION, HEADLAMP

CUSHION, HEADLAMP

920 ₽
17

08322-0104A WASHER, HEADLAMP

WASHER, HEADLAMP

320 ₽
18

09136-05046 SCREW (5X16)

SCREW (5X16)

350 ₽
19

35950-14A10 REFLEX-REFLECTOR ASSEMBLY, FR (FOR CANADA ONLY)

REFLEX-REFLECTOR ASSEMBLY, FR (FOR CANADA ONLY)

2 760 ₽
20

35956-27H00 BRACKET, FRONT SIDE RR (FOR CANADA ONLY)

BRACKET, FRONT SIDE RR (FOR CANADA ONLY)

1 480 ₽
21

08316-1005B NUT, FR SIDE RR (FOR CANADA ONLY)

NUT, FR SIDE RR (FOR CANADA ONLY)

440 ₽
22

02162-0516B SCREW, FR SIDE RR BRKT (FOR CANADA ONLY)

SCREW, FR SIDE RR BRKT (FOR CANADA ONLY)

350 ₽
23

08319-3105B NUT, FR SIDE RR BRKT (FOR CANADA ONLY)

NUT, FR SIDE RR BRKT (FOR CANADA ONLY)

600 ₽
