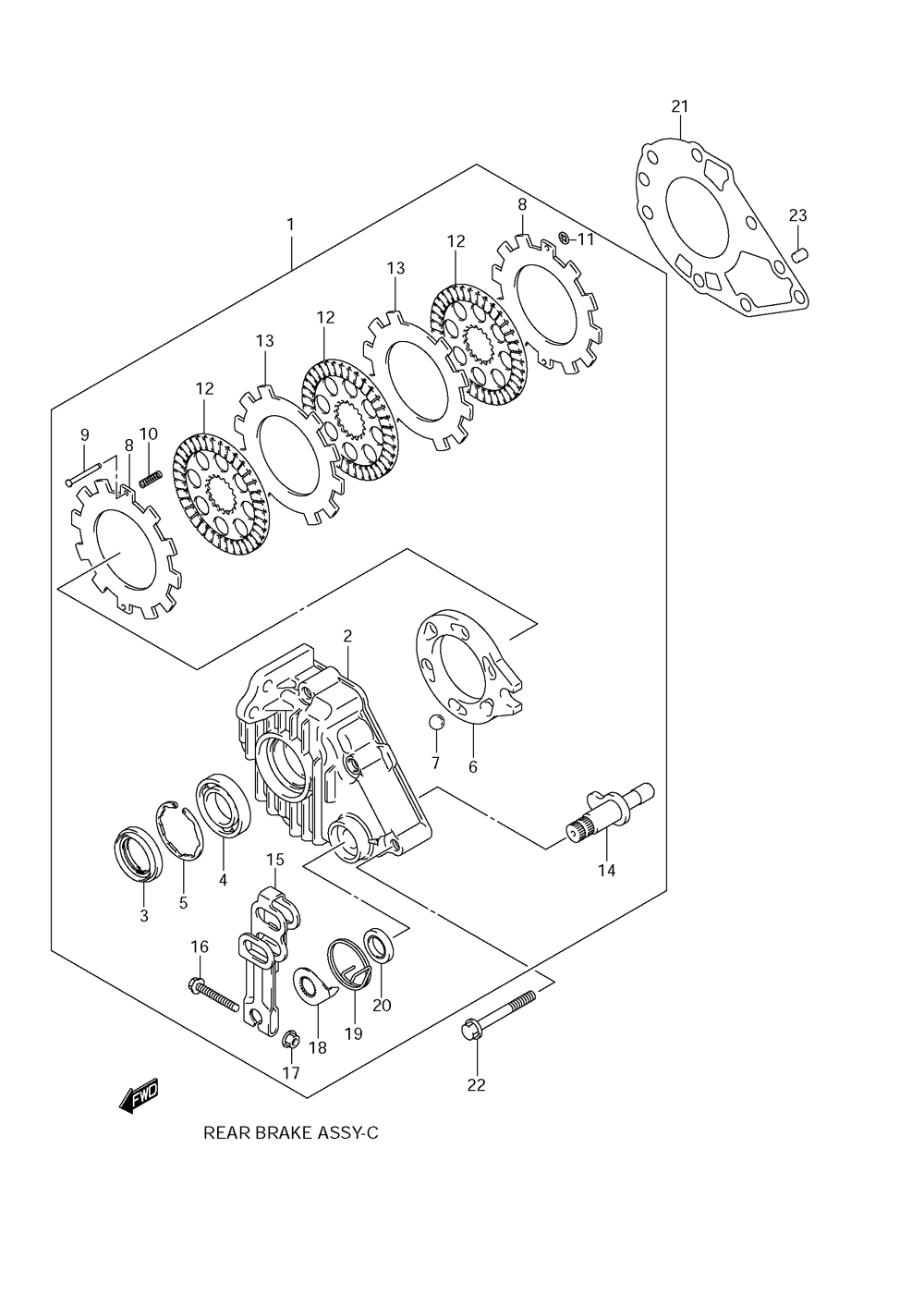

BRAKE - REAR для Suzuki LT-A750XZ KINGQUAD 750AXi (LTD) - 2009 года выпуска
-
№АртикулНазвание
-
164200-31G11 BRAKE ASSEMBLY, REARBRAKE ASSEMBLY, REAR
-
264290-31G00 ...CASE, REAR BRAKE...CASE, REAR BRAKE
-
309283-34008 ...OIL SEAL 34X52X, REAR BRAKE CASE...OIL SEAL 34X52X, REAR BRAKE CASE
-
408113-60050 ...BEARING 25X47X12...BEARING 25X47X12
-
564215-31G00 ...CIRCLIP, RR BRAKE CASE...CIRCLIP, RR BRAKE CASE
-
664292-31G00 ...PLATE, PRESSURE...PLATE, PRESSURE
-
764295-31G00 ...BALL...BALL
-
864293-31G00 ...PLATE, SIDE...PLATE, SIDE
-
964297-31G00 ...PIN, SIDE PLATE...PIN, SIDE PLATE
-
1064296-31G00 ...SPRING, SIDE PLATE...SPRING, SIDE PLATE
-
1164298-31G00 ...NUT, SIDE PLATE...NUT, SIDE PLATE
-
1264420-31G00 ...PLATE, FRICTION...PLATE, FRICTION
-
1364294-31G00 ...PLATE, SEPARATOR...PLATE, SEPARATOR
-
1464440-31G01 ...CAM, REAR BRAKE...CAM, REAR BRAKE
-
1564451-31G00 ...LEVER, RR BRAKE CAM...LEVER, RR BRAKE CAM
-
1664455-31G00 ...BOLT, RR BRAKE CAM LEVER...BOLT, RR BRAKE CAM LEVER
-
1764456-31G00 ...NUT, RR BRAKE CAM LEVER...NUT, RR BRAKE CAM LEVER
-
1864492-31G00 ...PLATE, BRAKE LINING INDICATOR...PLATE, BRAKE LINING INDICATOR
-
1964484-31G00 ...SPRING, RR BRAKE CAM LEVER...SPRING, RR BRAKE CAM LEVER
-
2064443-31G01 ...SEAL, RR BRAKE CAM...SEAL, RR BRAKE CAM
-
2164124-31G00 GASKET, RR BRAKE CASEGASKET, RR BRAKE CASE
-
2209103-08332 BOLT, RR BRAKE CASEBOLT, RR BRAKE CASE
-
2309261-09002 PIN 9X10, RR BRAKE CASE KNOCKPIN 9X10, RR BRAKE CASE KNOCK
