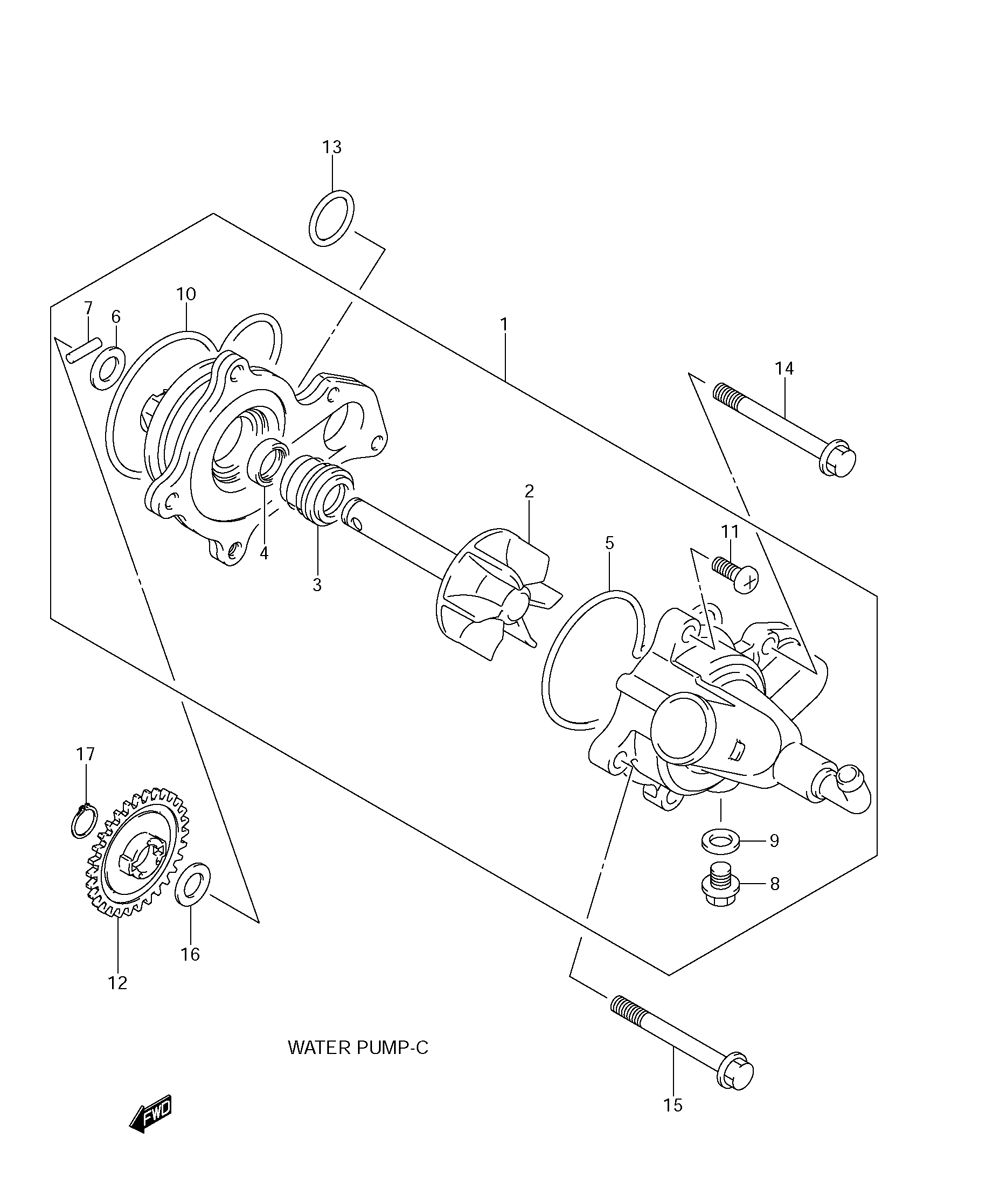

WATER PUMP для Suzuki LT-A750XZ KINGQUAD 750AXi (LTD) - 2009 года выпуска
-
№АртикулНазвание
-
117400-31G00 PUMP ASSEMBLY, WATERPUMP ASSEMBLY, WATER
-
217491-31G00 ...IMPELLER...IMPELLER
-
317470-02F00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
417431-07G00 ...OIL SEAL...OIL SEAL
-
517418-31G00 ...O RING...O RING
-
617432-07G00 ...WASHER...WASHER
-
717482-03G00 ...PIN...PIN
-
817415-20920 ...BOLT...BOLT
-
909168-08016 ...GASKET 8.2X14X1...GASKET 8.2X14X1
-
1017435-31G00 ...O RING...O RING
-
1102112-0616B ...SCREW...SCREW
-
1217461-31G00 GEAR, WATER PUMP DRIVENGEAR, WATER PUMP DRIVEN
-
1309280-22001 O-RING (DIAMETER: 2.4,INSIDE DIAMETER: 21.8)O-RING (DIAMETER: 2.4,INSIDE DIAMETER: 21.8)
-
1401547-0645A BOLTBOLT
-
1501547-0655A BOLTBOLT
-
1609181-10158 WASHER, 10X18X0.5WASHER, 10X18X0.5
-
1708331-3110A CIRCLIPCIRCLIP
