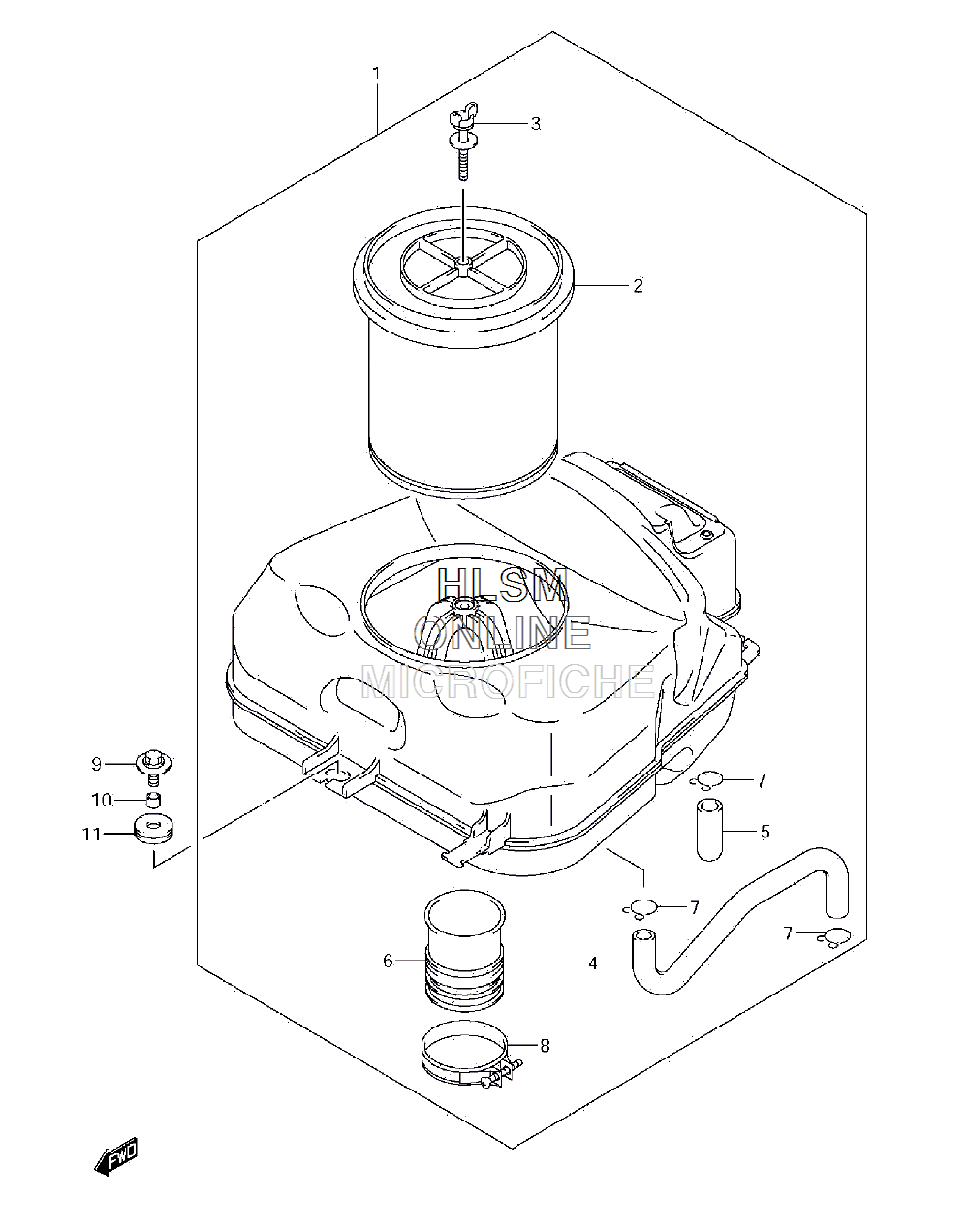

AIR CLEANER для Suzuki LT-A500X KingQuad 500AXi - 2011 года выпуска
-
№АртикулНазвание
-
113700-11H20 CLEANER ASSY, AIR (INC 2-8)CLEANER ASSY, AIR (INC 2-8)
-
213780-31G30 FILTER ASSYFILTER ASSY
-
313831-31G00 BOLT, WINGBOLT, WING
-
413853-31G00 TUBE, BREATHERTUBE, BREATHER
-
513878-09F00 PLUG, DRAINPLUG, DRAIN
-
613881-11H01 TUBE, OUTLETTUBE, OUTLET
-
709401-14301 CLIPCLIP
-
809402-52208 CLAMPCLAMP
-
909116-06149 BOLT (6X20)BOLT (6X20)
-
1009180-06248 SPACER (6.1X8X7)SPACER (6.1X8X7)
-
1109320-08028 CUSHIONCUSHION
