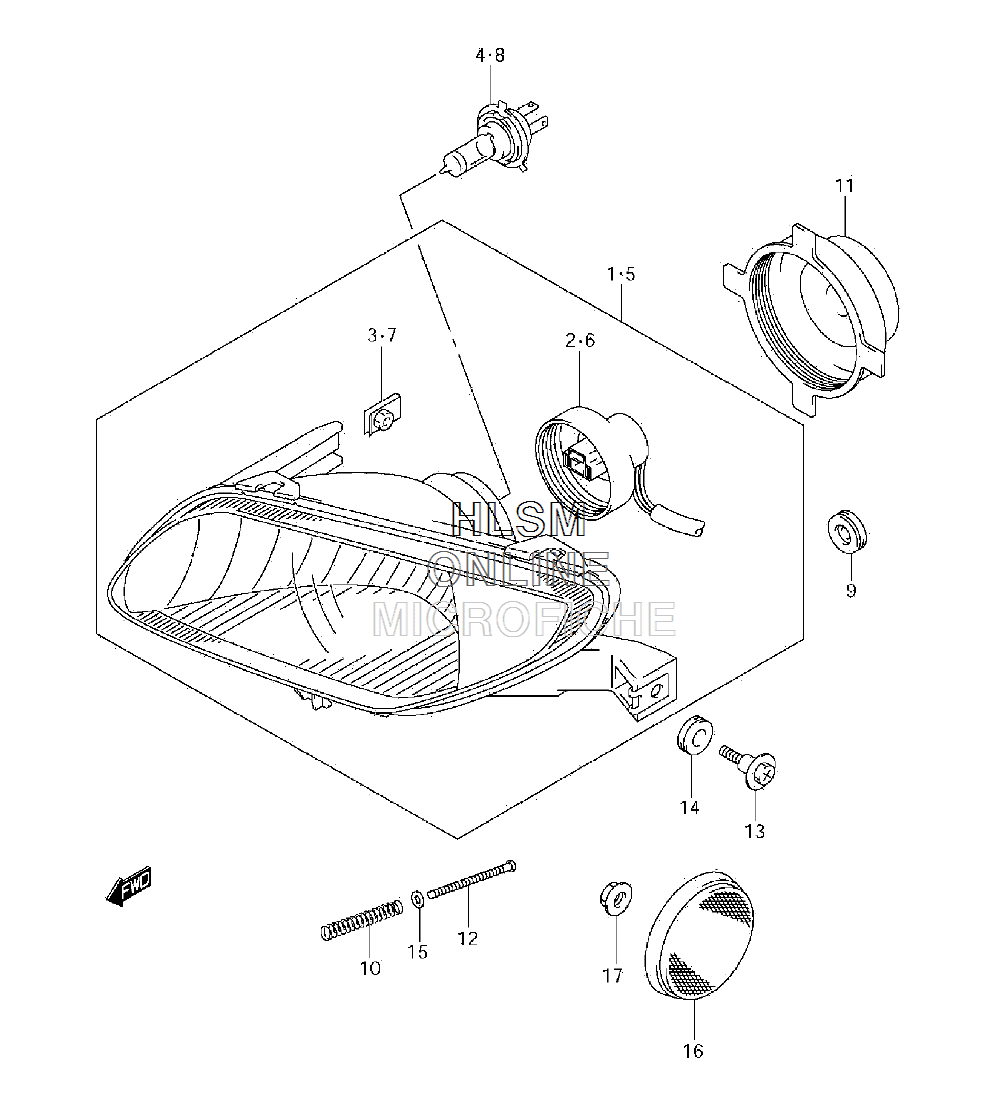

HEADLAMP (CANADA) для Suzuki LT-A500X KingQuad 500AXi - 2011 года выпуска
-
№АртикулНазвание
-
135100-31G90-999 HEADLAMP ASSY, RIGHT HAND (INC 2-3)HEADLAMP ASSY, RIGHT HAND (INC 2-3)
-
235171-31GM1 CORD ASSY, RIGHT HANDCORD ASSY, RIGHT HAND
-
335157-31G90 NUTNUT
-
409471-12101 BULB (12V35/35W)BULB (12V35/35W)
-
535300-31G90-999 HEADLAMP ASSY, LEFT HAND (INC 6-7)HEADLAMP ASSY, LEFT HAND (INC 6-7)
-
635171-31GH1 CORD ASSY, LEFT HANDCORD ASSY, LEFT HAND
-
735157-31G90 NUTNUT
-
809471-12101 BULB (12V35/35W)BULB (12V35/35W)
-
909308-07011 GROMMET, HEADLAMP HOUSINGGROMMET, HEADLAMP HOUSING
-
1035154-31300 SPRING, HEADLAMP ADJUSTSPRING, HEADLAMP ADJUST
-
1135174-31G00 COVER, HEADLAMP HOUSINGCOVER, HEADLAMP HOUSING
-
1209125-04031 SCREW (4X50)SCREW (4X50)
-
1309139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
1409320-10501 CUSHIONCUSHION
-
1508322-0104A WASHERWASHER
-
1635950-14A10 REFLEX REFLECTOR ASSY, SIDEREFLEX REFLECTOR ASSY, SIDE
-
1708316-1005B NUTNUT
