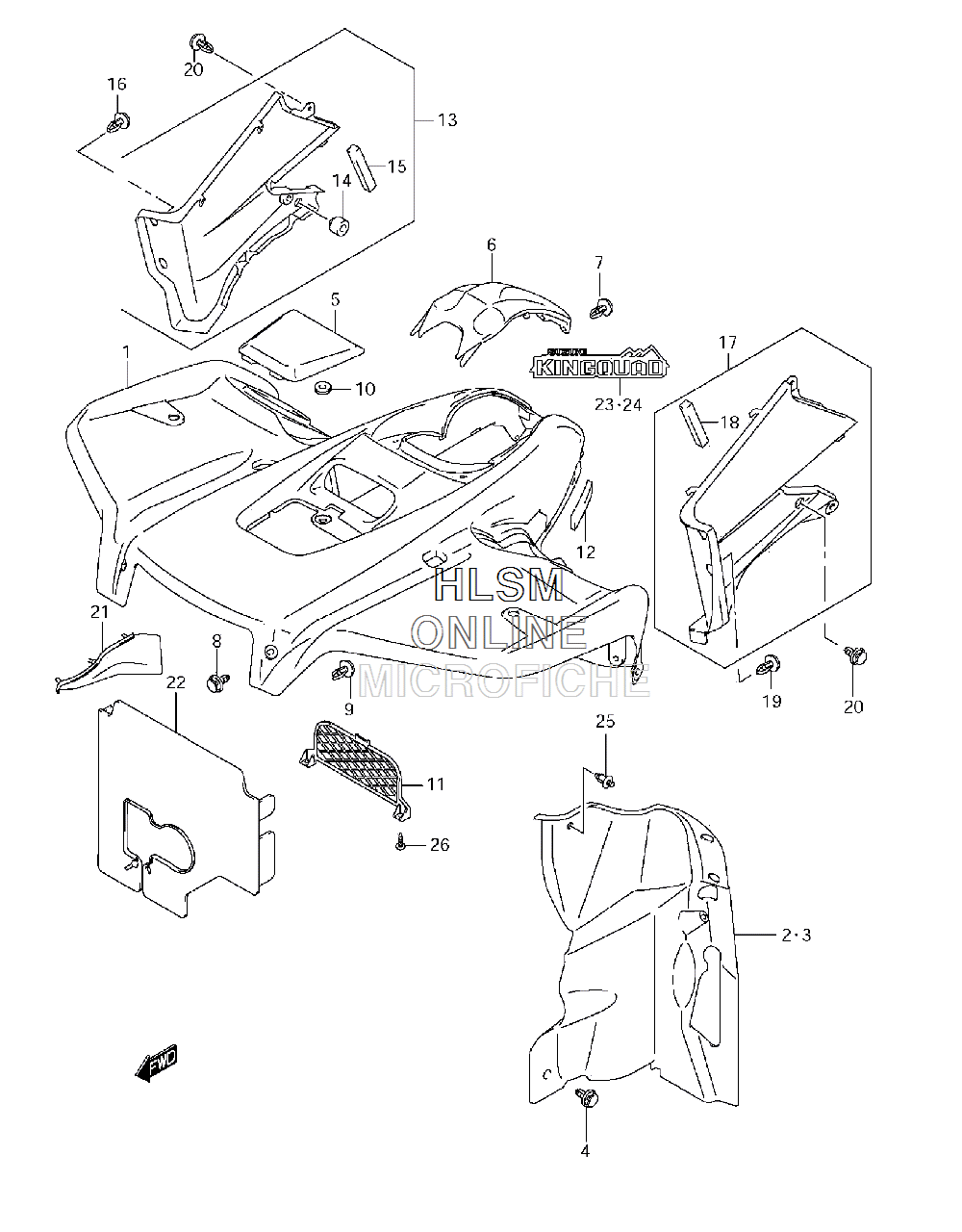

FENDER - FRONT для Suzuki LT-A750X KingQuad 750AXi (CAMO) - 2011 года выпуска
-
№АртикулНазвание
-
153111-31GC2-YVA FENDER, FRONT (CAMOUFLAGE)FENDER, FRONT (CAMOUFLAGE)
-
253421-31G01 MUDFLAP, FENDER INNER LEFT HANDMUDFLAP, FENDER INNER LEFT HAND
-
353411-31G02 MUDFLAP, FENDER INNER RIGHT HANDMUDFLAP, FENDER INNER RIGHT HAND
-
409409-08335 CLIPCLIP
-
553341-31GC0-YVA LID (CAMOUFLAGE)LID (CAMOUFLAGE)
-
653119-31GC1-YVA FENDER, CENTER (CAMOUFLAGE)FENDER, CENTER (CAMOUFLAGE)
-
709409-08335 CLIPCLIP
-
809409-08335 CLIPCLIP
-
909409-08335 CLIPCLIP
-
1009320-08018 CUSHIONCUSHION
-
1153212-31G00 COVER, INNERCOVER, INNER
-
1253145-07G01 CUSHION, FENDER SIDECUSHION, FENDER SIDE
-
1353110-31G10-291 COVER, SIDE RIGHT HAND (BLACK) (INC 14-15)COVER, SIDE RIGHT HAND (BLACK) (INC 14-15)
-
1409321-10019 GROMMET, COVER SIDE RIGHT HANDGROMMET, COVER SIDE RIGHT HAND
-
1553146-05G00 CUSHION, COVER SIDE, RIGHT HANDCUSHION, COVER SIDE, RIGHT HAND
-
1609409-08335 CLIPCLIP
-
1753110-31G20-291 COVER, SIDE LEFT HAND (BLACK) (INC 18)COVER, SIDE LEFT HAND (BLACK) (INC 18)
-
1853146-05G00 CUSHION, COVER SIDE, LEFT HANDCUSHION, COVER SIDE, LEFT HAND
-
1909409-08335 CLIPCLIP
-
2009409-08335 CLIPCLIP
-
2153116-31G00 MUDGUARD, SIDE RIGHT HANDMUDGUARD, SIDE RIGHT HAND
-
2253117-31G00 COVER, CENTERCOVER, CENTER
-
2368151-31GC0-EFG EMBLEM, RIGHT HANDEMBLEM, RIGHT HAND
-
2468152-31GC0-EFG EMBLEM, LEFT HANDEMBLEM, LEFT HAND
-
2509409-07333 CLIPCLIP
-
2603241-0516A SCREWSCREW
