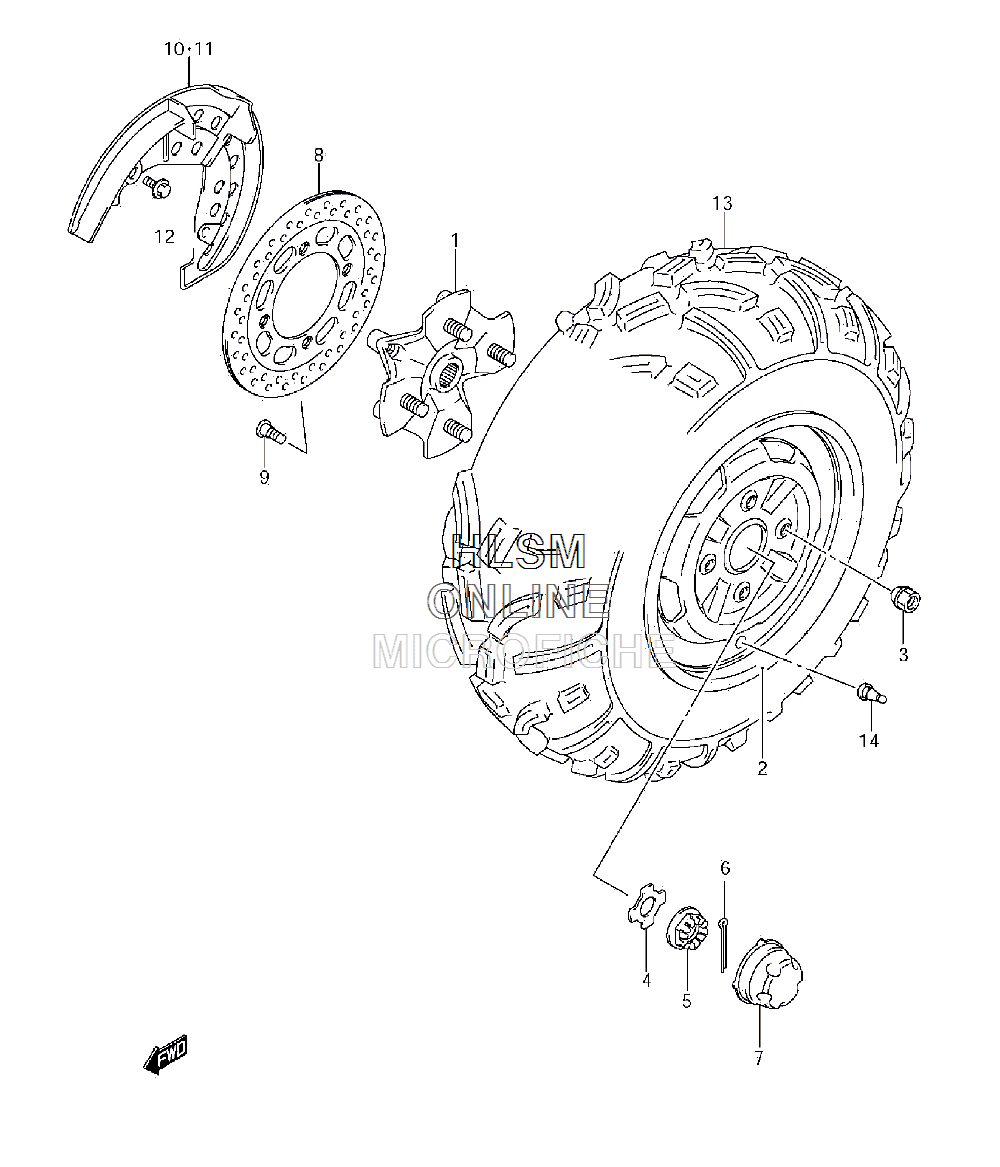

WHEEL - FRONT (CANADA) для Suzuki LT-A750X KingQuad 750AXi (CAMO) - 2011 года выпуска
-
№АртикулНазвание
-
154110-31G00 HUB, FRONT WHEELHUB, FRONT WHEEL
-
255310-31G50-292 RIM, FRONT WHEEL (12X6.0AT) (BLACK GLOSS)RIM, FRONT WHEEL (12X6.0AT) (BLACK GLOSS)
-
255310-31G10-YSR RIM, FRONT WHEEL (12X6.0AT) (BLACK MAT)RIM, FRONT WHEEL (12X6.0AT) (BLACK MAT)
-
309159-10114 NUTNUT
-
464723-09F00 WASHERWASHER
-
509141-18010 NUTNUT
-
604111-4035A PIN, COTTERPIN, COTTER
-
754725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
859211-31G10 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
909106-08160 BOLT, BRAKE DISC (8X21)BOLT, BRAKE DISC (8X21)
-
1059231-31G10 COVER, FRONT DISC RIGHT HANDCOVER, FRONT DISC RIGHT HAND
-
1159431-31G10 COVER, FRONT DISC LEFT HANDCOVER, FRONT DISC LEFT HAND
-
1209111-06085 BOLT (6X12)BOLT (6X12)
-
1355110-31G10 TIRE, FRONT (AT25X8-12) (DUNLOP)TIRE, FRONT (AT25X8-12) (DUNLOP)
-
1443130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
