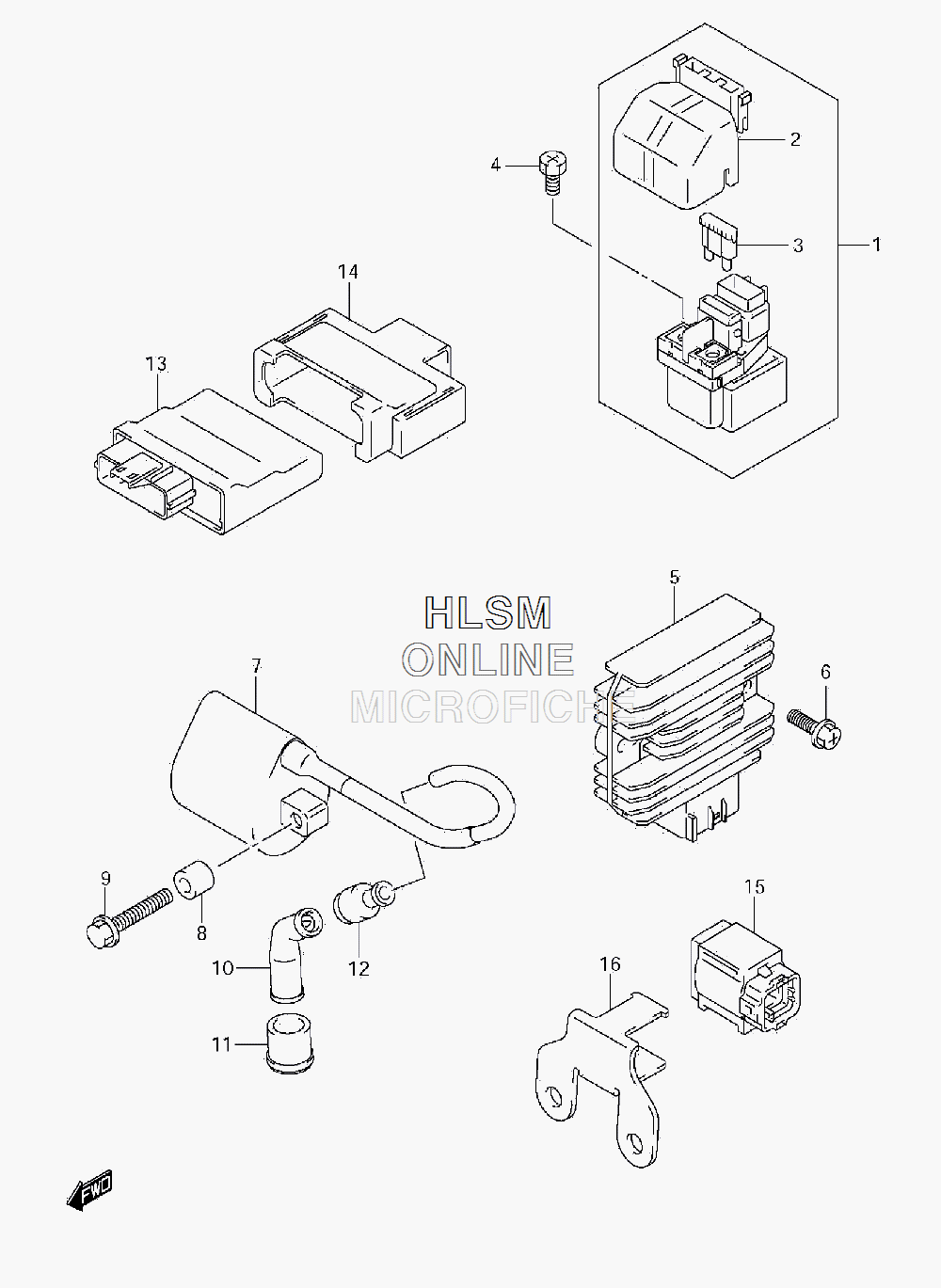

ELECTRICAL для Suzuki LT-F400F KingQuad 400FSi - 2011 года выпуска
-
№АртикулНазвание
-
131800-38G10 RELAY ASSY, STARTING MOTOR (INC 2-3)RELAY ASSY, STARTING MOTOR (INC 2-3)
-
231861-38G00 COVERCOVER
-
309481-30501 FUSE (30A)FUSE (30A)
-
409128-06013 BOLT (6X8)BOLT (6X8)
-
532800-20H00 RECTIFIER ASSYRECTIFIER ASSY
-
602162-0625B BOLTBOLT
-
733410-26G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
809180-06095 SPACER (6X12X10)SPACER (6X12X10)
-
901547-0630B BOLTBOLT
-
1033510-43010 CAP, SPARK PLUGCAP, SPARK PLUG
-
1133541-44D00 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
1233542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1332920-27H11 CONTROL UNIT, FICONTROL UNIT, FI
-
1432980-27H10 HOLDER, FI CONTROL UNITHOLDER, FI CONTROL UNIT
-
1533960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
1633961-27H00 BRACKET, FUEL CUT SENSORBRACKET, FUEL CUT SENSOR
