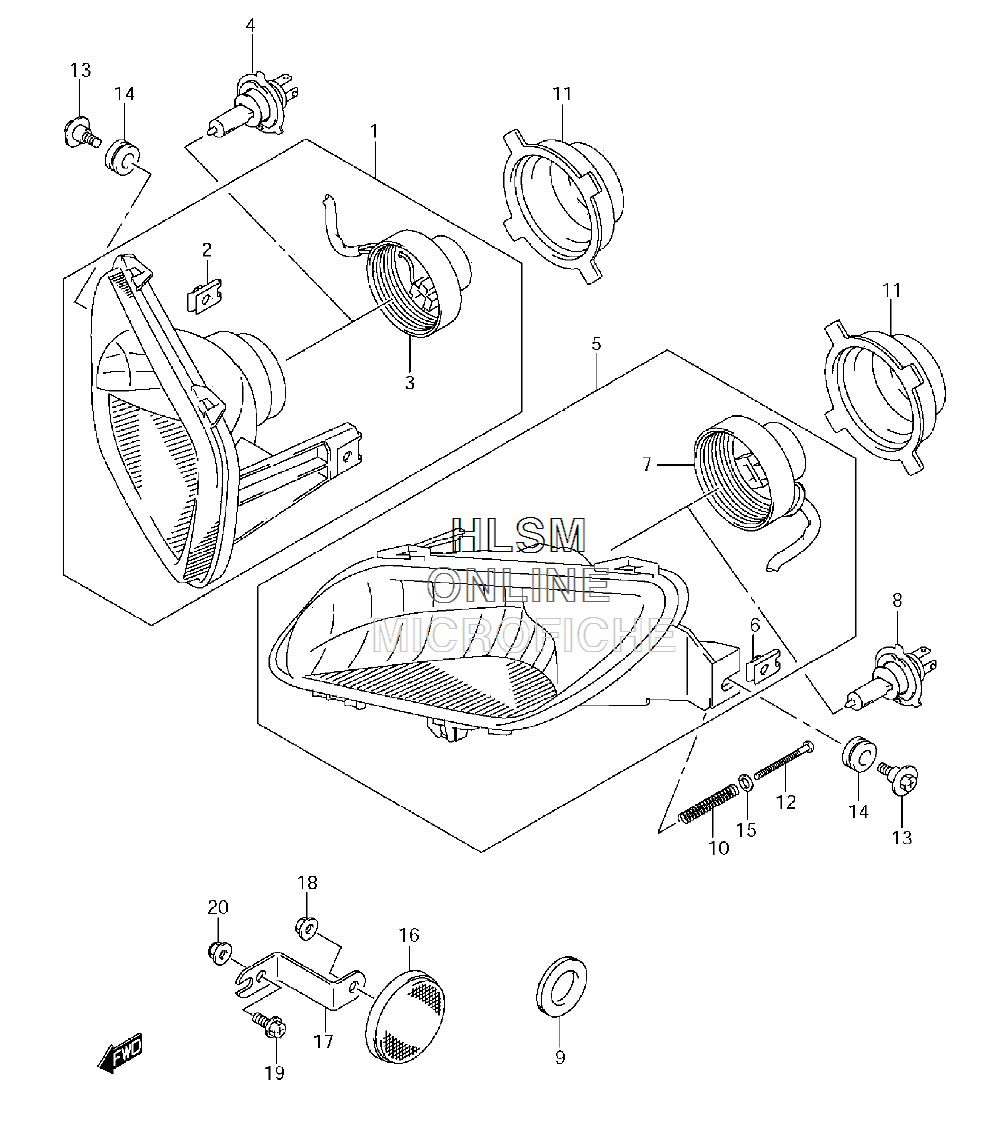

HEADLAMP (CANADA) для Suzuki LT-F400F KingQuad 400FSi - 2011 года выпуска
-
№АртикулНазвание
-
135100-31G90-999 HEADLAMP ASSY, RIGHT HAND (INC 2-3)HEADLAMP ASSY, RIGHT HAND (INC 2-3)
-
235157-31G90 NUT (M6)NUT (M6)
-
335171-31GM1 CORD ASSY, RIGHT HANDCORD ASSY, RIGHT HAND
-
409471-12101 BULB (12V35/35W,HS1)BULB (12V35/35W,HS1)
-
535300-31G90-999 HEADLAMP ASSY, LEFT HAND (INC 6-7)HEADLAMP ASSY, LEFT HAND (INC 6-7)
-
635157-31G90 NUT (M6)NUT (M6)
-
735171-31GH1 CORD ASSY, LEFT HANDCORD ASSY, LEFT HAND
-
809471-12101 BULB (12V35/35W,HS1)BULB (12V35/35W,HS1)
-
909308-07011 GROMMETGROMMET
-
1035154-31300 SPRING, HEADLAMP ADJUSTSPRING, HEADLAMP ADJUST
-
1135174-31G00 COVER, HEADLAMP HOUSINGCOVER, HEADLAMP HOUSING
-
1209125-04031 SCREW (4X50)SCREW (4X50)
-
1309139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
1409320-10501 CUSHIONCUSHION
-
1508322-0104A WASHERWASHER
-
1635950-14A10 REFLEX-REFLECTOR ASSY, FRONTREFLEX-REFLECTOR ASSY, FRONT
-
1735956-27H00 BRACKET, FRONT SIDE REARBRACKET, FRONT SIDE REAR
-
1808316-1005B NUTNUT
-
1902162-0516B SCREWSCREW
-
2008319-3105B NUTNUT
