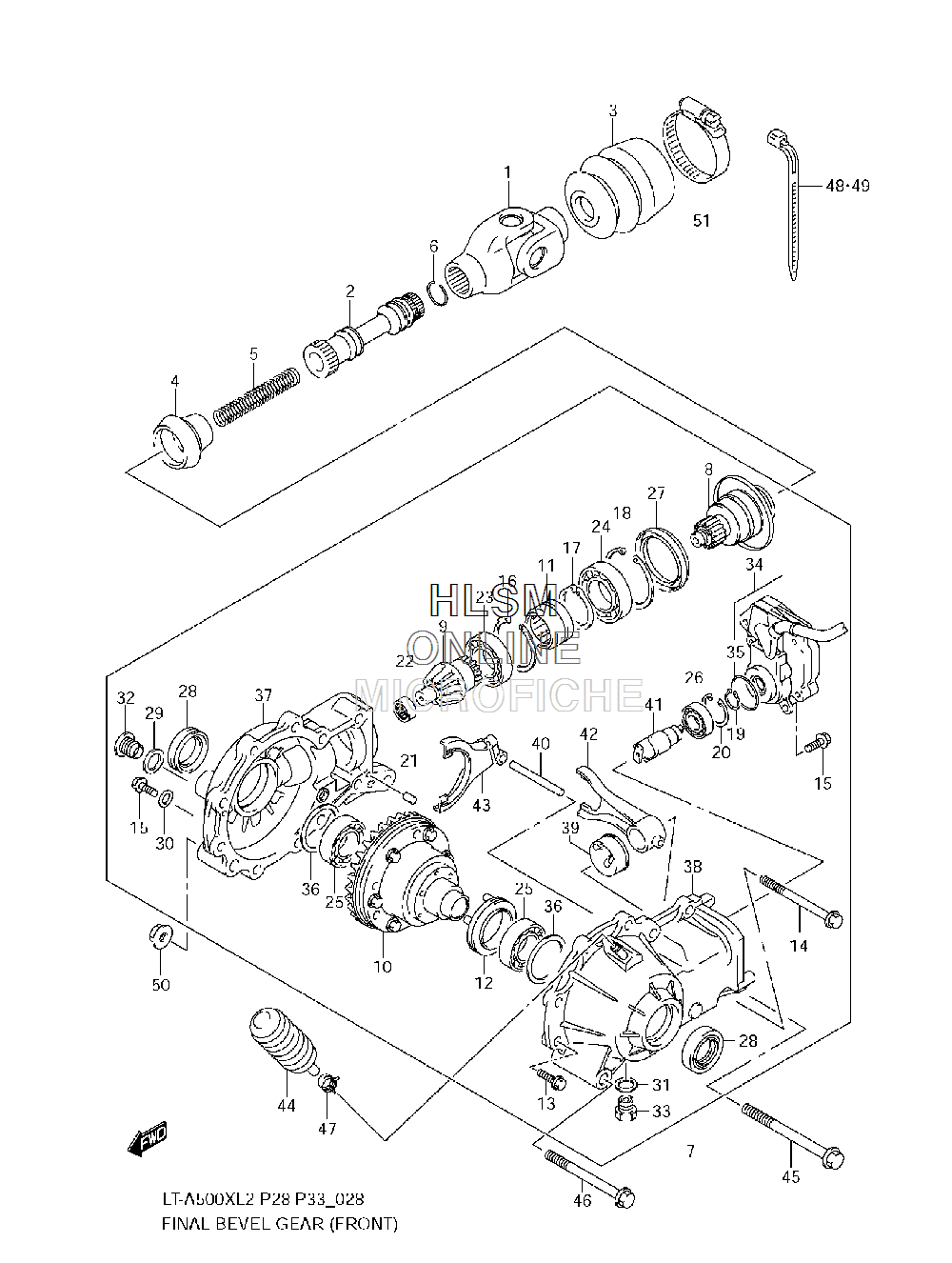

DIFFERENTIAL - FRONT для Suzuki LT-A500X KingQuad 500AXi 4x4 Auto - 2012 года выпуска
-
№АртикулНазвание
-
127100-31G00 YOKE, FR PROP SHAFTYOKE, FR PROP SHAFT
-
227151-31G30 SHAFT, PROPELLERSHAFT, PROPELLER
-
327153-31G21 BOOT, FRONT PROP SHAFTBOOT, FRONT PROP SHAFT
-
427153-31G30 BOOT, FRONT PROP SHAFTBOOT, FRONT PROP SHAFT
-
527191-31G00 SPRING, FR PROPELLERSPRING, FR PROPELLER
-
609381-20004 CIRCLIPCIRCLIP
-
727400-31H00 CASE ASSY, FR DIFFERENT (INCL. 8-43)CASE ASSY, FR DIFFERENT (INCL. 8-43)
-
827130-31HA0 SHAFT ASSY, INPUTSHAFT ASSY, INPUT
-
927311-31HA0 PINION, DRIVEPINION, DRIVE
-
1027320-31HA0 GEAR RING ASSYGEAR RING ASSY
-
1127371-31HA0 SLEEVESLEEVE
-
1227381-31HA0 SLEEVE DIFF LOCKSLEEVE DIFF LOCK
-
1327401-31HA0 FLANGE BOLT, HEX HEADFLANGE BOLT, HEX HEAD
-
1427401-31HB0 FLANGE BOLT, HEX HEADFLANGE BOLT, HEX HEAD
-
1527401-31HC0 FLANGE BOLT, HEX HEADFLANGE BOLT, HEX HEAD
-
1627403-31HA0 SNAP RINGSNAP RING
-
1727403-31HB0 SNAP RINGSNAP RING
-
1827403-31HC0 SNAP RINGSNAP RING
-
1927403-31HD0 RING SNAPRING SNAP
-
2027403-31HE0 RING SNAPRING SNAP
-
2127404-31HA0 PINPIN
-
2227405-31HA0 BEARING, PINIONBEARING, PINION
-
2327405-31HB0 BEARINGBEARING
-
2427405-31HC0 BEARINGBEARING
-
2527405-31HD0 BEARINGBEARING
-
2627405-31HE0 BEARINGBEARING
-
2727406-31HA0 OIL SEALOIL SEAL
-
2827406-31HB0 OIL SEALOIL SEAL
-
2927407-31HA0 WASHERWASHER
-
3027407-31HB0 WASHERWASHER
-
3127407-31HC0 WASHERWASHER
-
3227409-31HA0 PLUGPLUG
-
3327409-31HB0 PLUGPLUG
-
3427421-31HA0 CASE MOTOR (INCL. 35)CASE MOTOR (INCL. 35)
-
3527406-31HC0 O-RING, 38MMO-RING, 38MM
-
3627445-31HA0 SHIM SETSHIM SET
-
3727451-31HA0 CASE, FR DIFFERENTIALCASE, FR DIFFERENTIAL
-
3827460-31HA0 COVER, BUSH, FR DIFFERENTIALCOVER, BUSH, FR DIFFERENTIAL
-
3927911-31HA0 CAM DIFFLOCKCAM DIFFLOCK
-
4027913-31HA0 SHAFT, DIFFLOCK FORKSHAFT, DIFFLOCK FORK
-
4127921-31HA0 SHAFT, SCREWSHAFT, SCREW
-
4227940-31HA0 FORK, FRONT DIFFERENTIALFORK, FRONT DIFFERENTIAL
-
4327950-31HA0 FORK, DIFFLOCKFORK, DIFFLOCK
-
4427491-38F00 CASE, BREATHERCASE, BREATHER
-
4509103-10061 BOLT (10X90)BOLT (10X90)
-
4609103-10148 BOLT (10X110)BOLT (10X110)
-
4709401-08411 CLIPCLIP
-
4809407-14403 CLAMP (L:125)CLAMP (L:125)
-
4909407-14403 CLAMP (L:125)CLAMP (L:125)
-
5009159-10115 NUTNUT
-
5109402-80501 CLAMPCLAMP
