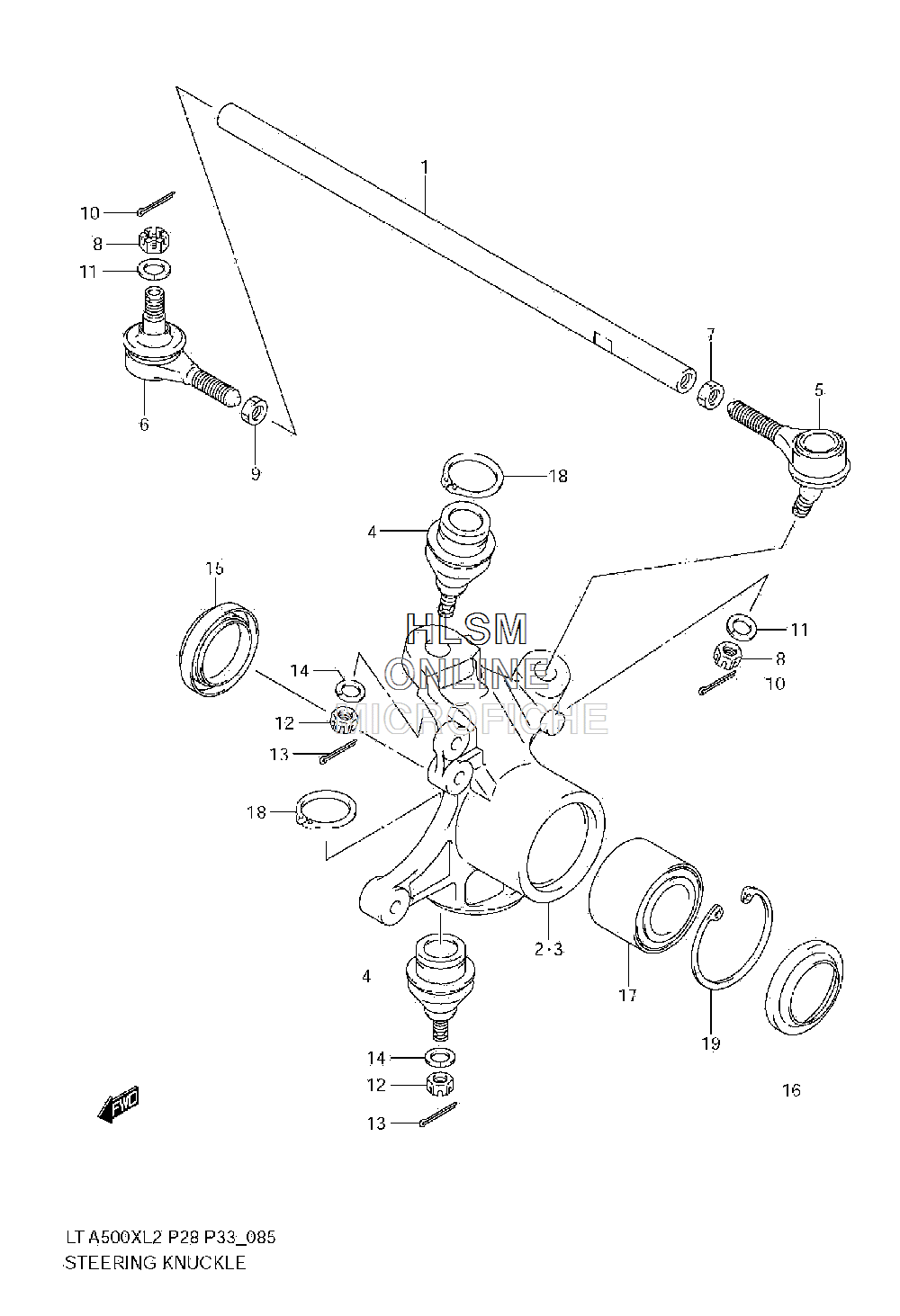

STEERING KNUCKLE W/ TIE RODS для Suzuki LT-A500X KingQuad 500AXi 4x4 Auto - 2012 года выпуска
-
№АртикулНазвание
-
151281-31G01 TIE ROD, STEERINGTIE ROD, STEERING
-
251231-11H00 KNUCKLE, STEERING RIGHT HANDKNUCKLE, STEERING RIGHT HAND
-
351241-11H00 KNUCKLE, STEERING LEFT HANDKNUCKLE, STEERING LEFT HAND
-
451210-31G10 END, KNUCKLE STEERINGEND, KNUCKLE STEERING
-
551260-31G10 ROD, END RIGHT HANDROD, END RIGHT HAND
-
651270-31G10 ROD, END LEFT HANDROD, END LEFT HAND
-
709140-12030 NUT, M12X1.25X10NUT, M12X1.25X10
-
808314-4010B NUTNUT
-
909140-12035 NUTNUT
-
1004111-2020A COTTER PINCOTTER PIN
-
1109160-10082 WASHER (10.5X19X2)WASHER (10.5X19X2)
-
1208314-4010B NUTNUT
-
1304111-2020A COTTER PINCOTTER PIN
-
1409160-10082 WASHER (10.5X19X2)WASHER (10.5X19X2)
-
1509283-38012 OIL SEAL (38X55X8)OIL SEAL (38X55X8)
-
1609285-38002 OIL SEAL (38X55X6)OIL SEAL (38X55X6)
-
1751259-31G00 BEARINGBEARING
-
1808331-3130A CIRCLIPCIRCLIP
-
1908331-4155A CLIPCLIP
