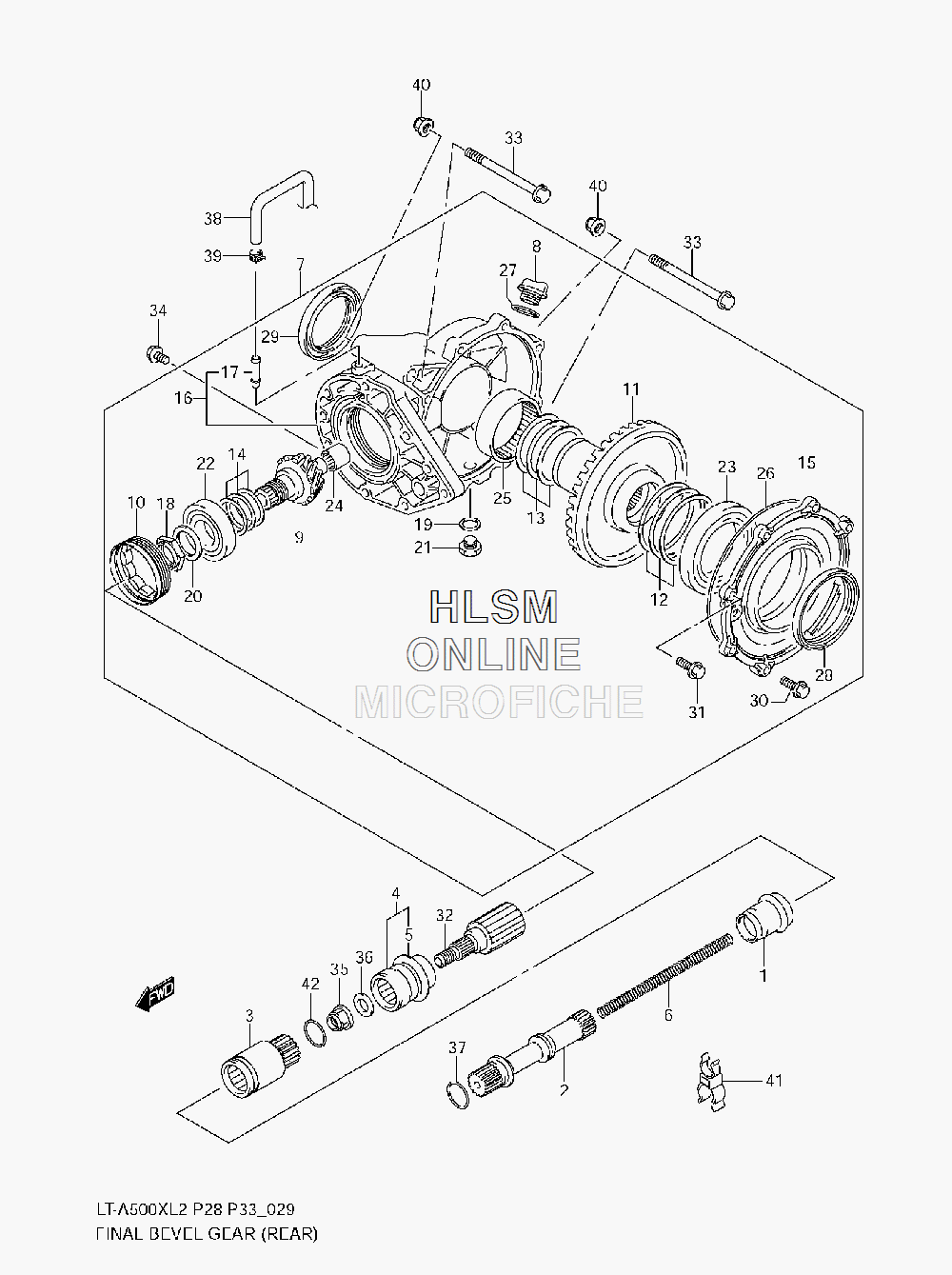

DIFFERENTIAL - REAR для Suzuki LT-A500XC KingQuad 500AXi 4x4 Auto (Camo) - 2012 года выпуска
-
№АртикулНазвание
-
127153-31G40 BOOT, JOINT SHAFTBOOT, JOINT SHAFT
-
227155-31G30 SHAFT, REAR PROPELLERSHAFT, REAR PROPELLER
-
327157-31G10 JOINT, REAR PROPELLERJOINT, REAR PROPELLER
-
427170-31G20 COUPLING, REAR PROP SHAFT (INCL. 5)COUPLING, REAR PROP SHAFT (INCL. 5)
-
527592-31G10 PLATE, OUTPUT OIL SEALPLATE, OUTPUT OIL SEAL
-
627192-31G10 SPRING, REAR PROPELLERSPRING, REAR PROPELLER
-
727410-31G50 CASE ASSY, REAR FINAL GEARCASE ASSY, REAR FINAL GEAR
-
809259-20008-XC0 PLUGPLUG
-
927311-31G50 GEAR, RR FINAL DRIVEGEAR, RR FINAL DRIVE
-
1027312-38F00 STOPPER, FINAL DRIVESTOPPER, FINAL DRIVE
-
1127320-31G00 GEAR, RR FINAL DRIVENGEAR, RR FINAL DRIVEN
-
1227326-31810 SHIM SET, FINAL DRIVEN LEFT HANDSHIM SET, FINAL DRIVEN LEFT HAND
-
1327327-31810 SHIM SET, FINAL DRIVEN RIGHT HANDSHIM SET, FINAL DRIVEN RIGHT HAND
-
1427445-24810 SHIM SET, FINAL DRIVE GEARSHIM SET, FINAL DRIVE GEAR
-
1527451-31G10 CASE, REAR FINAL GEAR LEFT HANDCASE, REAR FINAL GEAR LEFT HAND
-
1627460-31G10 CASE, REAR FINAL GEAR RIGHT HAND (INCL. 17)CASE, REAR FINAL GEAR RIGHT HAND (INCL. 17)
-
1709364-08016 UNIONUNION
-
1809140-28006 NUTNUT
-
1909168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
2009181-28195 SHIM (28X38X1)SHIM (28X38X1)
-
2109247-14013 PLUGPLUG
-
2209262-28023 BEARING (28X68X18)BEARING (28X68X18)
-
2309262-65001 BEARING (65X100X11)BEARING (65X100X11)
-
2409263-20062 BEARING (20X34X18)BEARING (20X34X18)
-
2509263-55003 BEARING (55X67X20)BEARING (55X67X20)
-
2609280-00046 O RING (D:2.45.ID:156)O RING (D:2.45.ID:156)
-
2709280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
2809283-59001 OIL SEAL (59X88X8)OIL SEAL (59X88X8)
-
2909283-59001 OIL SEAL (59X88X8)OIL SEAL (59X88X8)
-
3009103-08357 BOLT (8X35)BOLT (8X35)
-
3109103-10294 BOLT (10X45)BOLT (10X45)
-
3227594-31G50 SHAFT, RR FINAL DRIVESHAFT, RR FINAL DRIVE
-
3309103-10148 BOLT (10X110)BOLT (10X110)
-
3409103-10405 BOLT (10X30)BOLT (10X30)
-
3509159-14010 NUTNUT
-
3609181-14002 SHIM (14X26X2)SHIM (14X26X2)
-
3709280-20002 O RING (D:3.1,ID:19.4)O RING (D:3.1,ID:19.4)
-
3827491-31G00 HOSE, BREATHERHOSE, BREATHER
-
3909401-10403 CLIPCLIP
-
4009159-10115 NUTNUT
-
4109408-00235 CLAMPCLAMP
-
4209280-26006 O RING (D:3.1,ID:26.4)O RING (D:3.1,ID:26.4)
