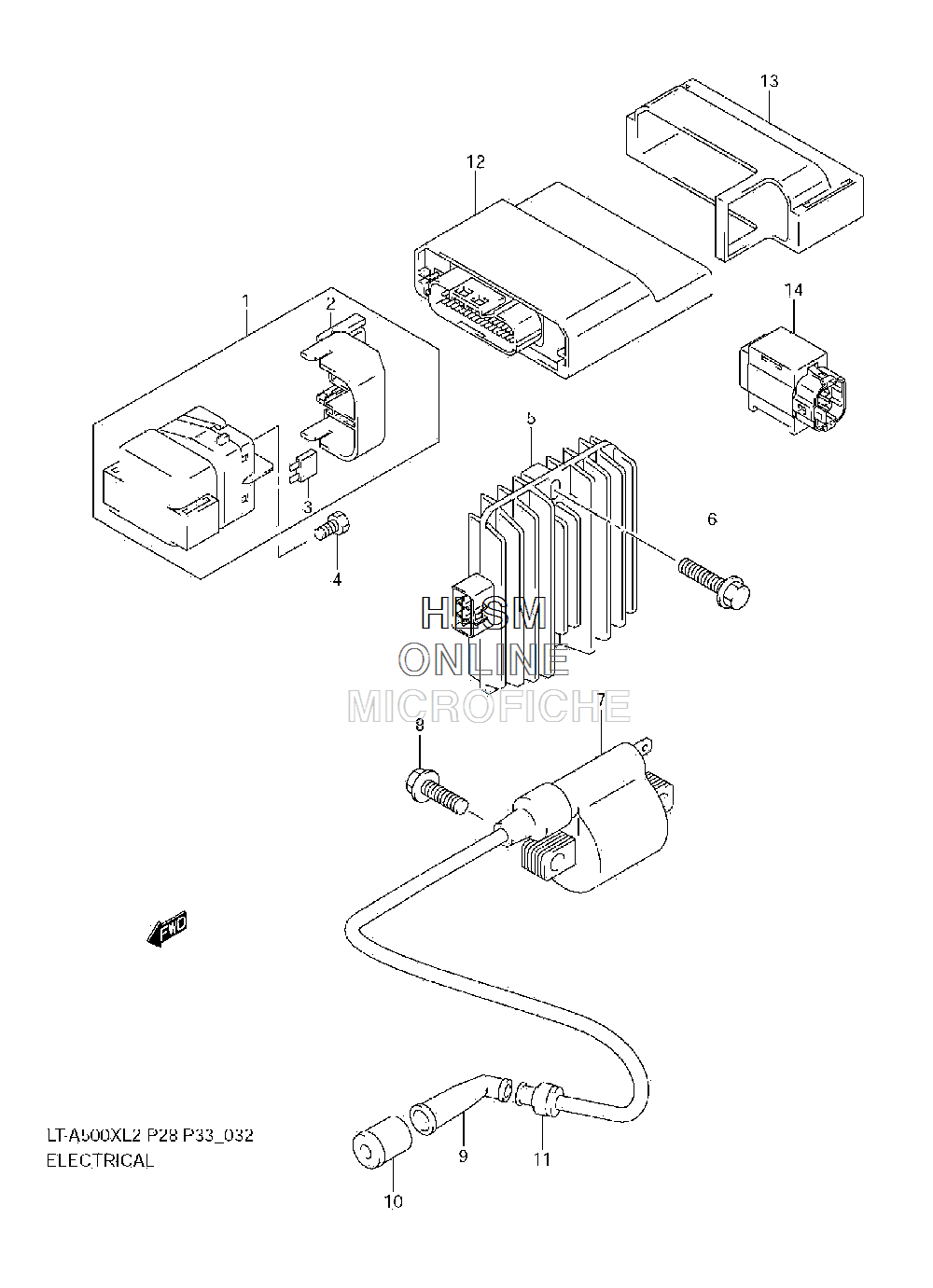

ELECTRICAL для Suzuki LT-A500XC KingQuad 500AXi 4x4 Auto (Camo) - 2012 года выпуска
-
№АртикулНазвание
-
131800-41G00 RELAY ASSY, STARTING MOTOR (INCL. 2, 3)RELAY ASSY, STARTING MOTOR (INCL. 2, 3)
-
231861-38G00 COVER, STARTER RELAYCOVER, STARTER RELAY
-
309481-30501 FUSE (30A)FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-42F00 RECTIFIER ASSYRECTIFIER ASSY
-
602162-0625B BOLTBOLT
-
733410-19B10 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
801550-0620B BOLTBOLT
-
933510-43010 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
1033541-44D00 SEAL, SPARK PLUG CAPSEAL, SPARK PLUG CAP
-
1133542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1232920-31H60 CONTROL UNIT, FICONTROL UNIT, FI
-
1332980-31G00 HOLDER, FI CONTROL UNITHOLDER, FI CONTROL UNIT
-
1433960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
