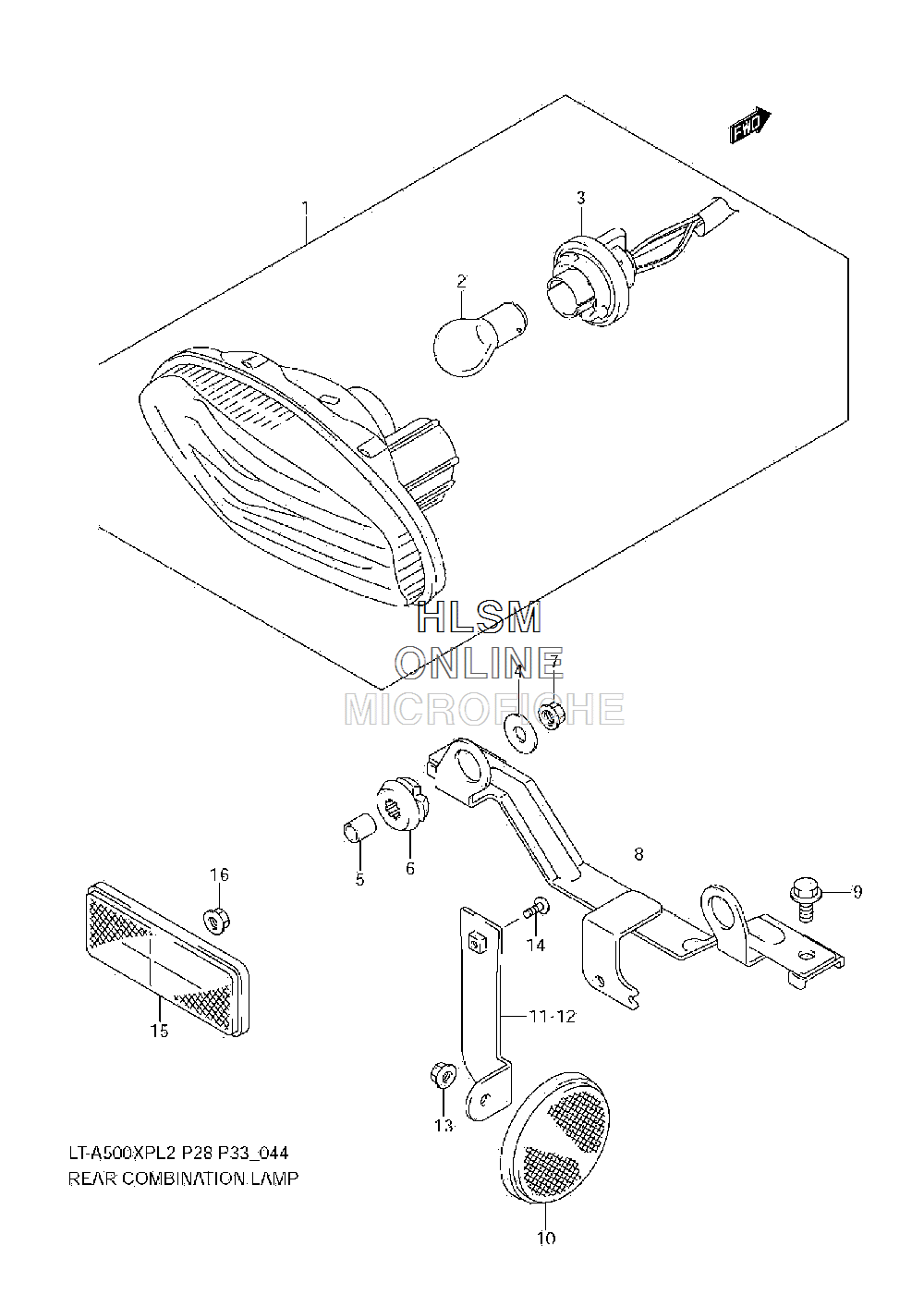

TAILLIGHT ASSY. (CANADA) для Suzuki LT-A500XCP KingQuad 500AXi 4x4 Auto Power Steering (Camo) - 2012 года выпуска
-
№АртикулНазвание
-
135710-31G00 LAMP ASSY, REAR COMBINATION (INCL. 2, 3)LAMP ASSY, REAR COMBINATION (INCL. 2, 3)
-
209471-12128 BULB (12V21/5W)BULB (12V21/5W)
-
335718-03G30 SOCKET AND CORDSOCKET AND CORD
-
409160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
509180-06264 SPACER (6.5X9X10.5)SPACER (6.5X9X10.5)
-
609320-09018 CUSHIONCUSHION
-
708316-1006A NUTNUT
-
835726-31G10 BRACKET,REAR COMBINATION LAMPBRACKET,REAR COMBINATION LAMP
-
901550-0612A BOLTBOLT
-
1035970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
1135975-31G00 BRACKET, REAR SIDE RR RIGHT HANDBRACKET, REAR SIDE RR RIGHT HAND
-
1235976-31G00 BRACKET, REAR SIDE RR LEFT HANDBRACKET, REAR SIDE RR LEFT HAND
-
1308316-1005B NUTNUT
-
1409125-05073 SCREW (5X10)SCREW (5X10)
-
1535970-07F01 REFLECTOR ASSY, REARREFLECTOR ASSY, REAR
-
1608316-1005B NUTNUT
