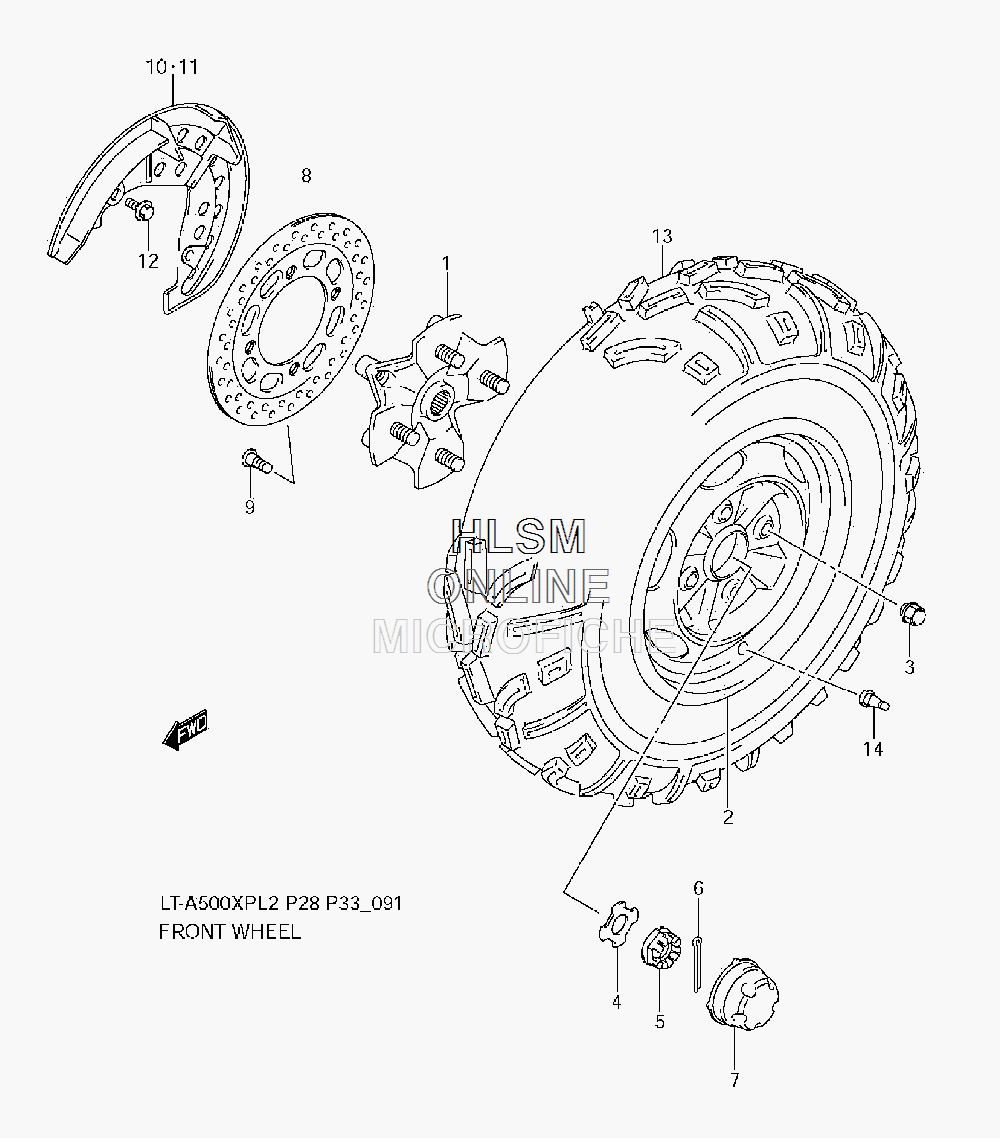

WHEEL - FRONT для Suzuki LT-A500XCP KingQuad 500AXi 4x4 Auto Power Steering (Camo) - 2012 года выпуска
-
№АртикулНазвание
-
154110-31G00 HUB, FRONT WHEELHUB, FRONT WHEEL
-
255310-31G20-YSR RIM, FRONT WHEEL (12X6.0AT) (YSR - BLACK)RIM, FRONT WHEEL (12X6.0AT) (YSR - BLACK)
-
255310-31G60-291 RIM, FRONT WHEEL (12X6.0AT) (291 - BLACK)RIM, FRONT WHEEL (12X6.0AT) (291 - BLACK)
-
309159-10114 NUTNUT
-
464723-09F00 WASHER, HUBWASHER, HUB
-
509141-18010 NUTNUT
-
604111-4035A COTTER PINCOTTER PIN
-
754725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
859211-31G20 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
909106-08160 BOLT (8X21)BOLT (8X21)
-
1059231-31G10 COVER, FRONT DISC RIGHT HANDCOVER, FRONT DISC RIGHT HAND
-
1159431-31G10 COVER, FRONT DISC LEFT HANDCOVER, FRONT DISC LEFT HAND
-
1209111-06085 BOLT (6X12)BOLT (6X12)
-
1355110-31G20 TIRE, FRONT (AT25X8-12)TIRE, FRONT (AT25X8-12)
-
1443130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
