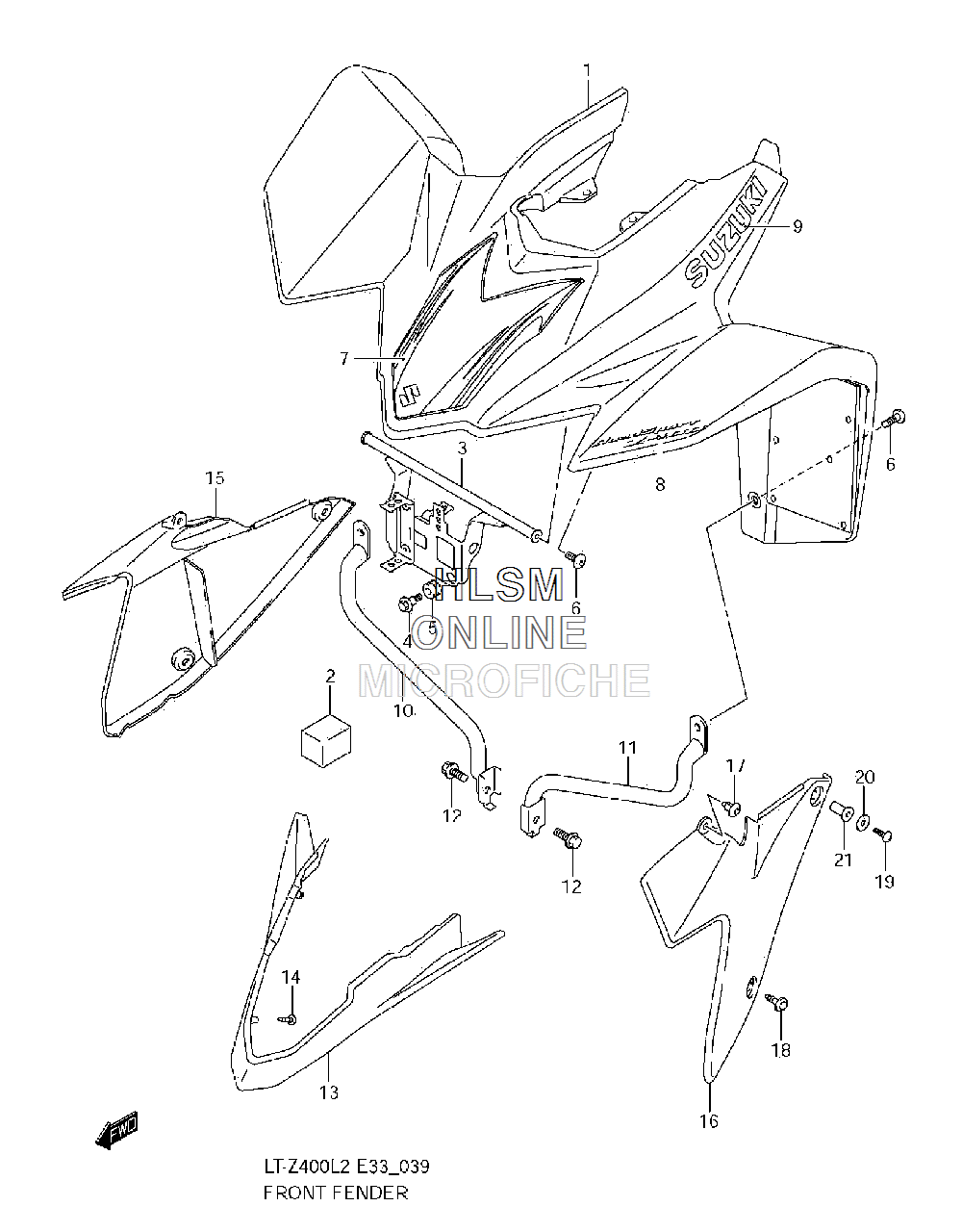

FENDER - FRONT для Suzuki LT-Z400 QuadSport Z400 - 2012 года выпуска
-
№АртикулНазвание
-
153111-33H00-30H FENDER, FRONT (WHITE)FENDER, FRONT (WHITE)
-
244558-33H00 CUSHION, GUARDCUSHION, GUARD
-
347410-33H00 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
409111-06092 BOLT (6X19)BOLT (6X19)
-
509320-08068 CUSHIONCUSHION
-
609139-06158 SCREW (6X16)SCREW (6X16)
-
768155-33H10-HBT TAPE, FRONTTAPE, FRONT
-
868151-33H00-FVJ EMBLEM, FRONT LEFT HANDEMBLEM, FRONT LEFT HAND
-
968661-29F00-8YM EMBLEM, REAR (WHITE/BLACK)EMBLEM, REAR (WHITE/BLACK)
-
1053210-33H00 BRACKET, FENDER RIGHT HANDBRACKET, FENDER RIGHT HAND
-
1153220-33H00 BRACKET, FENDER LEFT HANDBRACKET, FENDER LEFT HAND
-
1209103-08450 BOLT (8X16)BOLT (8X16)
-
1353119-45G00-YPW COVER, HEADLAMP (BLUE)COVER, HEADLAMP (BLUE)
-
1403541-0516A SCREWSCREW
-
1553112-33H00-30H COVER, SIDE RIGHT HAND (WHITE)COVER, SIDE RIGHT HAND (WHITE)
-
1653122-33H00-30H COVER, SIDE LEFT HAND (WHITE)COVER, SIDE LEFT HAND (WHITE)
-
1709409-07333 CLIPCLIP
-
1809409-08327 CLIPCLIP
-
19
