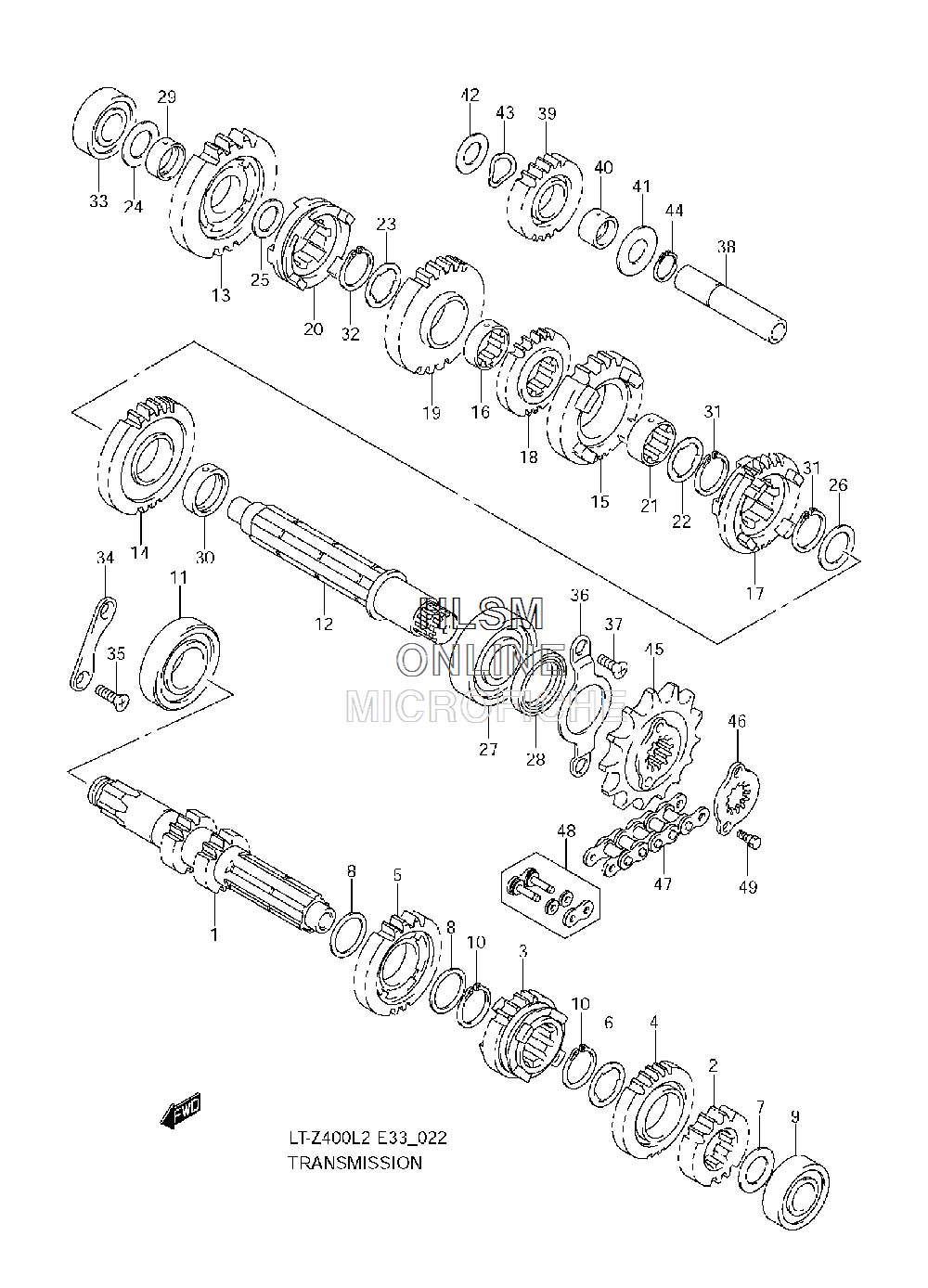

TRANSMISSION для Suzuki LT-Z400 QuadSport Z400 - 2012 года выпуска
-
№АртикулНазвание
-
124120-07G00 SHAFT, COUNTER NT:13SHAFT, COUNTER NT:13
-
224221-33H00 GEAR, 2ND DRIVE NT:18GEAR, 2ND DRIVE NT:18
-
324231-33H10 GEAR, 3RD DRIVE NT:21GEAR, 3RD DRIVE NT:21
-
424241-33H00 GEAR, 4TH DRIVE NT:23GEAR, 4TH DRIVE NT:23
-
524251-33H00 GEAR, 5TH DRIVE NT:26GEAR, 5TH DRIVE NT:26
-
609167-25012 LOCK WASHERLOCK WASHER
-
709181-17223 SHIM (17X30X1)SHIM (17X30X1)
-
809181-25139 SHIM (25X32X1)SHIM (25X32X1)
-
909262-17027 BEARING (17X40X12) (LEFT)BEARING (17X40X12) (LEFT)
-
1009380-25003 CIRCLIPCIRCLIP
-
1109262-25122 BEARING (25X52X15) (RIGHT)BEARING (25X52X15) (RIGHT)
-
1224130-07G00 DRIVE SHAFTDRIVE SHAFT
-
1324311-07G00 GEAR, 1ST DRIVEN NT:33GEAR, 1ST DRIVEN NT:33
-
1424321-33H00 GEAR, 2ND DRIVEN NT:30GEAR, 2ND DRIVEN NT:30
-
1524331-33H00 GEAR, 3RD DRIVEN NT:28GEAR, 3RD DRIVEN NT:28
-
1624332-24510 BUSH, REVERSE DRIVENBUSH, REVERSE DRIVEN
-
1724341-33H00 GEAR, 4TH DRIVEN NT:23GEAR, 4TH DRIVEN NT:23
-
1824351-33H00 GEAR, 5TH DRIVEN NT:22GEAR, 5TH DRIVEN NT:22
-
1924571-07G01 GEAR, REVERSE DRIVEN NT:28GEAR, REVERSE DRIVEN NT:28
-
2024581-07G00 DOG, REVERSEDOG, REVERSE
-
2129215-07G00 BUSH, 3RD DRIVENBUSH, 3RD DRIVEN
-
2209167-25016 LOCK WASHERLOCK WASHER
-
2309167-25016 LOCK WASHERLOCK WASHER
-
2409181-17223 SHIM (17X30X1) (RIGHT)SHIM (17X30X1) (RIGHT)
-
2509181-20195 SHIM (20X30X1) (LEFT)SHIM (20X30X1) (LEFT)
-
2609181-25167 SHIM (25X34X1)SHIM (25X34X1)
-
2709262-25125 BEARING (25X62X17) (LEFT)BEARING (25X62X17) (LEFT)
-
2809283-25086 OIL SEAL (25X38X6)OIL SEAL (25X38X6)
-
2909300-20033 BUSHBUSH
-
3009300-25020 BUSHBUSH
-
3109380-25003 CIRCLIPCIRCLIP
-
3209380-25003 CIRCLIPCIRCLIP
-
3309262-17023 BEARING (17X40X12) (RIGHT)BEARING (17X40X12) (RIGHT)
-
3424741-05G00 RETAINER, COUNTER SHAFT RIGHT HANDRETAINER, COUNTER SHAFT RIGHT HAND
-
3509126-06011 SCREW (6X12)SCREW (6X12)
-
3624751-07G00 RETAINER, DRIVE SHAFT OIL SEALRETAINER, DRIVE SHAFT OIL SEAL
-
3709126-06007 SCREW (6X14)SCREW (6X14)
-
3824551-05G00 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
-
3924561-07G00 GEAR, REVERSE IDLE NT:24GEAR, REVERSE IDLE NT:24
-
4024562-05G00 BUSH, REVERSE IDLE GEARBUSH, REVERSE IDLE GEAR
-
4109181-17195 SHIM (17X28X1)SHIM (17X28X1)
-
4209181-17021 SHIM (17X36X1) (RIGHT)SHIM (17X36X1) (RIGHT)
-
4309164-22011 WASHERWASHER
-
4408331-3117A CIRCLIPCIRCLIP
-
4527511-07G00 SPROCKET, ENGINE NT:14SPROCKET, ENGINE NT:14
-
4627512-07G00 PLATE, SPROCKETPLATE, SPROCKET
-
4727600-43B20-096 CHAIN ASSY (RK520SM0Z10S,96L)CHAIN ASSY (RK520SM0Z10S,96L)
-
4827620-43B20 JOINT SETJOINT SET
-
4909111-06039 BOLT (6X13)BOLT (6X13)
