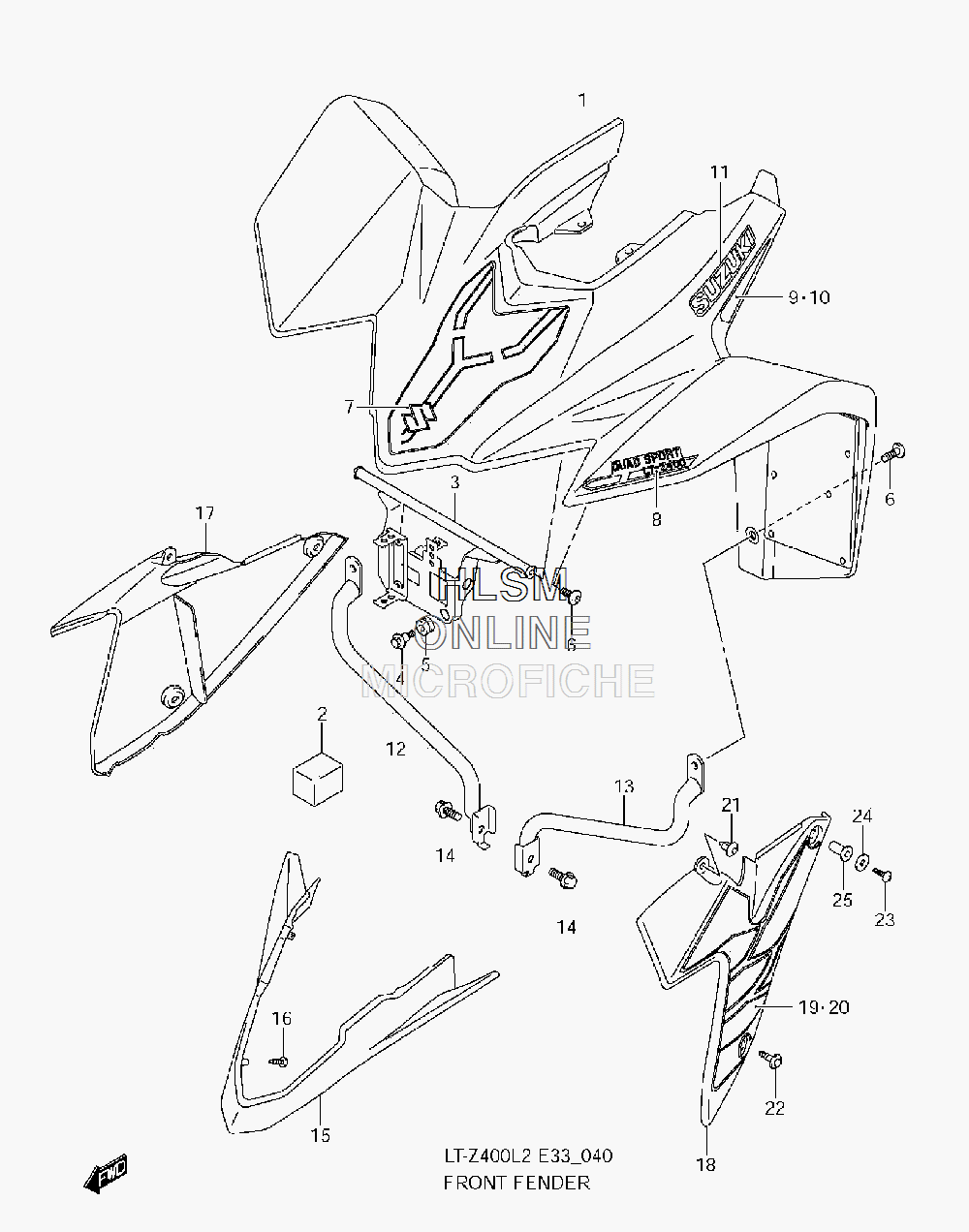

FENDER - FRONT для Suzuki LT-Z400Z QuadSport Z400 Limited - 2012 года выпуска
-
№АртикулНазвание
-
153111-33H00-YTU FENDER, FRONT (GREEN)FENDER, FRONT (GREEN)
-
244558-33H00 CUSHION, GUARDCUSHION, GUARD
-
347410-33H00 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
409111-06092 BOLT (6X19)BOLT (6X19)
-
509320-08068 CUSHIONCUSHION
-
609139-06158 SCREW (6X16)SCREW (6X16)
-
768155-33HC0-YTZ TAPE, FRONTTAPE, FRONT
-
868156-33HD0-HRG TAPE, FRONT LEFT HANDTAPE, FRONT LEFT HAND
-
968155-33HF0-YTZ TAPE, REAR SIDE RIGHT HANDTAPE, REAR SIDE RIGHT HAND
-
1068156-33HF0-YTZ TAPE, REAR SIDE LEFT HANDTAPE, REAR SIDE LEFT HAND
-
1168661-29F00-HRN EMBLEM, ''SUZUKI'' (BLACK/GREEN)EMBLEM, ''SUZUKI'' (BLACK/GREEN)
-
1253210-33H00 BRACKET, FENDER RIGHT HANDBRACKET, FENDER RIGHT HAND
-
1353220-33H00 BRACKET, FENDER LEFT HANDBRACKET, FENDER LEFT HAND
-
1409103-08450 BOLT (8X16)BOLT (8X16)
-
1553119-45G00-019 COVER, HEADLAMP (BLACK)COVER, HEADLAMP (BLACK)
-
1603541-0516A SCREWSCREW
-
1753112-33H00-019 COVER, SIDE RIGHT HAND (BLACK)COVER, SIDE RIGHT HAND (BLACK)
-
1853122-33H00-019 COVER, SIDE LEFT HAND (BLACK)COVER, SIDE LEFT HAND (BLACK)
-
1968155-33HE0-YTZ TAPE, RIGHT HANDTAPE, RIGHT HAND
-
2068156-33HE0-YTZ TAPE, LEFT HANDTAPE, LEFT HAND
-
2109409-07333 CLIPCLIP
-
2209409-08327 CLIPCLIP
-
2302142-0520B SCREWSCREW
-
2409160-05046 WASHER (5.5X20X1.4)WASHER (5.5X20X1.4)
-
2509159-05045 NUTNUT
